Scan code: LN120733 Manufacturer code: MAX-OD-9BD

Maxon - OD-9 Blackdrive

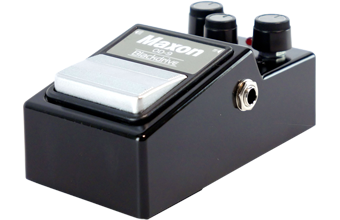

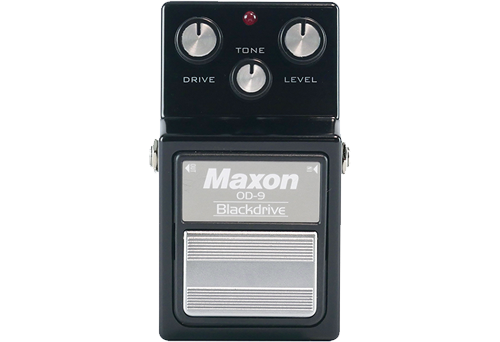

Maxon - OD-9 Blackdrive, Limited Edition OD-9 Overdrive Pedal, Fully analogue circuit, Made in Japan

Thumbnail 1 : Maxon - OD-9 Blackdrive Thumbnail 2 : Maxon - OD-9 Blackdrive Thumbnail 3 : Maxon - OD-9 Blackdrive
Scan code: LN120733 Manufacturer code: MAX-OD-9BD
£125.00Item due on 28 December 2021
Due 28th Dec
FREE DELIVERY ON YOUR ENTIRE BASKET
From £10.42 / month (APR 0%) or 0% for 4 months
Monthly Payment: £10.42
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £125.00
Total inc. interest: £125.00
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Limited Edition OD-9 Overdrive Pedal
Maxon - OD-9 Blackdrive

Squier FSR Classic Vibe '60s Competition Mustang

The legend, now dressed in blackFor well over half a century, Maxon has been renowned for its effect pedals ever since Maxon’s parent company Nisshin Onpa began work on them in 1969. However, their products were not marketed under their own brand originally outside of Japan and were sold worldwide under other well-known brand names (OEM), such as Ibanez™. After some time, the commercial relationship between the two firms grew stronger in the 1970s, to a point where Hoshino Gakki (owner of the Ibanez™ brand) became Nisshin Onpa’s most important client.

In 1979 Nisshin Onpa developed the legendary Ibanez™ Tube Screamer TS-808 overdrive, while also selling it under their own brand in Japan as the Maxon OD-808 Overdrive. This pedal became a worldwide success and was seen on pedal boards everywhere. Stevie Ray Vaughan used two of them in series on his board, plus other famous guitarists like Gary Moore, Eric Clapton, Santana, Rory Gallagher, Steve Stevens and Marty Friedman, just to mention a few, were using it too.

Although the OD808 may have been the first overdrive circuit of its kind, it was the TS-9/OD-9 that cemented this sound in the history of Rock & Roll guitar with more gain and bite. When Maxon re-released the pedal in the 21st century, it was a true-to-spec reissue of the legendary 1980s OD-9/TS-9 JRC4558D circuit. They also improved the output section in order to lower background noise, plus added True-Bypass switching giving clean, uncoloured tones for when the pedal is off.

Amazing Features • Limited Edition OD-9 Overdrive Pedal - exclusive for the European market
• Produces natural overdrive of a tube amp and responds smoothly to input signal level
• Fully analogue circuit - features the original Japanese JRC4558 IC
• True Bypass Switching, with low-noise mechanical switch
• Improved output section, for lower background noise
• Easy-access battery compartment - no tools required
• Powered by 9 -18 V DC PSU or PP3 9V Battery
• Classy semi-gloss black finish
• Made in Japan

An Exclusive For The European Market

back

100% made in Japan Made exclusively for the European market, the limited-edition OD-9 Blackdrive provides that same world-famous, unique gain and natural overdrive of the original Tube Screamer® design, but in a classy semi-gloss black enclosure.

Still 100% made in Japan, the pedal features entirely analogue circuity equipped with the celebrated JRC4558D op-amp, to deliver its unique smooth tube-like natural overdrive, all without sacrificing your guitar tone. The pedal can also be used as a clean boost, without altering your signal.

The Tech Spec

Features Specification
Input Impedance 500K Ohms
Input Jack 1/4 inch standard phone jack
Output Impedance 10K Ohms or less
Output Jack 1/4 inch standard phone jack
Equivalent Input Noise -114 dB or less (input shorted IHF-A
Maximum Output Level 0 dBm
Maximum Gain +40 dB (at 1.5 KHz)
Controls Drive, Tone, Level
Switch Normal/Effect (true bypass configuration)
Power Supply 9V Manganese dry cell battery (6F22) or special AC adaptor
Power Voltage DC9 V (Battery) / DC10 V (AC-adaptor)
Current Consumption 6 mA (9 V) / 7 mA (10 V)
Dimensions (whole) 74 mm (W) x 124 mm (D) x 54 mm (H)
Weight 580 g
Specifications
Voltage 9 Volts
Current None
Battery Compartment No
Output Channels Mono
Dimensions None
Passive Pedal No
Impedance
Additional Information
Scan Code LN120733
Model Number MAX-OD-9BD
GTIN 840433002079
