Scan code: LN102640 Manufacturer code: 1006802

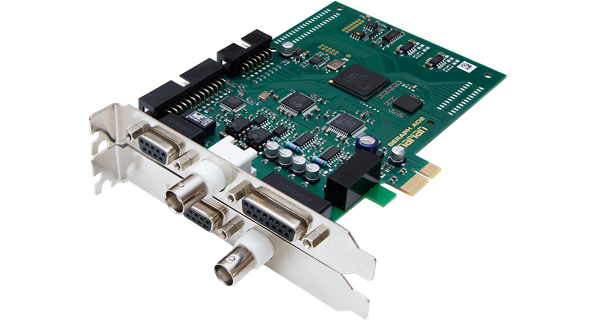

Marian - Seraph AD2 MWX PCIe Audio Interface

Marian - Seraph AD2 MWX, PCIe Audio Interface, Beast DSP with 44 channel mixer (no latency), Multi-card support

Scan code: LN102640 Manufacturer code: 1006802
£480.00
FREE DELIVERY ON YOUR ENTIRE BASKET
Order now and get it tomorrow, Thu 9th Dec
From £20.00 / month (APR 0%) or 0% for 4 months
Monthly Payment: £40.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £480.00
Total inc. interest: £480.00
Monthly Payment: £20.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £480.00
Total inc. interest: £480.00
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £11.99 / month (APR 15.9%)
Delivery Options
  • By DPD On 9th Dec to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

PCIe Audio Interface
Marian - 'Seraph AD2 MWX'

Mackie - Thump 15BST

the Ambassador for Pure AudioThe perfect meeting point for analogue and digital audio signal has been engineered. Drawing its incredible power from the ‘BEAST’, a fully-fledged DSP mixing desk, Seraph’s AD2 MWX offers 2 AES/EBU I/Os and 2 balanced analogue I/Os, for incredible adaptability.

The innovative circuit designed with customised I/O levels and using only the finest components hands you incredible sonic quality at any sample rate up to 192kHz. Using the ultra-modern PCIe interface alongside customised transfer functions, designed and optimised specifically for 32-bit high-quality and high-speed audio transfer, Seraph’s ‘AD2 MWX’ is set to a reliable partner for any professional studio which deals regularly with highly sensitive analogue/digital signals.

The new cockpit of your studio: The BEASTAs a member of the Seraph series, AD2 MWX includes the new ‘BEAST’ Digital Signal Processor (DSP). This makes the purchase of an additional mixing console completely unnecessary. Even the purchase of a patchbay isn’t required, in the hardware of the AD2 MWX is a full 44-2 channel mixer with one stereo and 3 further mono aux paths. These aux sums are all pre/post switchable and therefore predestined for use as a headphone mix/effect feed. Alongside all of this, each of the 44 channels offers an extensive filter section with one low shelf EQ, two peak EQs and one high shelf EQ.

In addition, the BEAST offers the most comprehensive total recall functionality: All mixer and routing settings is able to be quickly saved as "snapshots" and recalled with just one click. Alongside all audio settings, this also includes visual settings and labels that you have created for a better overview. Furthermore, all settings can be saved to a file, e.g. for a specific project, and read in again on other systems.

Amazing Features • 24 Bits / 192 kHz
• Multi-card support
• "Beast" DSP with 44 channel mixer (no latency)
• Drivers: WDM Audio, DirectSound, MME, ASIO 2.2
• Core audio support
• Compatible with 64-bit Windows 7, Windows Server 2008 / 2008.R2 / 2012 and Apple Mac OS X 10.4, 10.5, 10.6, and 10.7

connections • 2 Line inputs XLR balanced (Sub-D with adapter cable)
• 2 Line outputs XLR (Sub-D with adapter cable)
• AES / EBU input and output XLR (Sub-D with adapter cable)
• Wordclock input and output BNC

Flexible and Expandable

Marian - Seraph AD2

THE TDM SYNCBUSUsing the TDM SyncBus the Seraph AD2 MWX is a flexible basis for the realization of multichannel setups. Combinations with up to 3 more Seraphs or with any other SyncBus-compatible MARIAN sound system, allow setups with a number of channels according to your individual application or budget.

The SyncBus enables all connected systems to share audio clock and start/stop information. This unique feature ensures reliable recording of all the signals of the sound systems involved. More than that: Thanks to an intelligent bus management, TDM SyncBus compatible systems allow the transfer and exchange of up to 8 audio signals. The signals shared will appear as input signal in each mixer of each card and are handled like every "normal" input signal.

Fast and Reliable: Multi-Client Driver SuiteEach Seraph system provides software support for Windows™ 7/8/10, Windows™ Server 2008/2008.R2/2012. The continuously enhanced driver software includes true multi-client support for ASIO 2.2 and multi-channel WDM Audio / WASAPI with lowest latencies in all software environments. In contrast to competing products, the driver allows multiple audio applications to access the sound system simultaneously via the same or different driver interfaces.

Well-structured driver menus and dialogs, combined with an easy-to-read and practical manual, make this system extremely easy to set up and to customize for the specific needs of your studio.

The Tech Spec

Features Specification
Converter 24 bit/192 kHz
Phantom power No
Line Inputs 2
Digital Inputs AES
MIDI interface Yes
SYNC Yes
Analogue Outputs 2
Digital Outputs AES
Zero latency monitoring Yes
Specifications
Computer Interface Type
Connections (Input)
Mic Preamps (Max)
Instrument Inputs (Max)
Phantom Power No
Sample Rate (Max)
Bit Resolution
iPad Compatible No
Connections (Output)
Dimensions (mm)
DSP Processing No
Misc. Notes
Additional Information
Scan Code LN102640
Model Number 1006802
