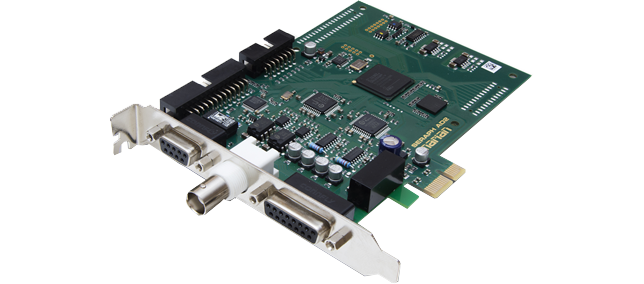

Marian - Seraph AD2 Broadcast/Mastering PCIe DSP Audio System

Marian - Seraph AD2, 4 I/O Broadcast/Mastering PCIe DSP Audio System, 24 Bit AD, 32 Bit DA converter, Multi-Card Support

Thumbnail 1 : Marian - Seraph AD2 Broadcast/Mastering PCIe DSP Audio System Thumbnail 2 : Marian - Seraph AD2 Broadcast/Mastering PCIe DSP Audio System
Scan code: LN102641 Manufacturer code: 1006801
End Of Life This product is no longer available to purchase
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

4 I/O Broadcast/Mastering PCIe DSP Audio System
Marian - 'Seraph AD2'

Marian - Seraph AD2

Audio - as pure as it gets The perfect meeting point for analogue and digital audio signal has been engineered. Drawing its incredible power from the ‘BEAST’, a fully-fledged DSP mixing desk, Seraph’s AD2 offers 2 AES/EBU I/Os and 2 balanced analogue I/Os, for incredible adaptability.

The innovative circuit designed with customised I/O levels and using only the finest components hands you incredible sonic quality at any sample rate up to 192kHz. Using the ultra-modern PCIe interface alongside customised transfer functions, designed and optimised specifically for 32-bit high-quality and high-speed audio transfer, Seraph’s ‘AD2’ is set to a reliable partner for any professional studio which deals regularly with highly sensitive analogue/digital signals.

The new cockpit of your studio: The BEASTAs a member of the Seraph series, AD2 includes the new ‘BEAST’ Digital Signal Processor (DSP). This makes the purchase of an additional mixing console completely unnecessary. Even the purchase of a patchbay isn’t required, in the hardware of the AD2 is a full 44-2 channel mixer with one stereo and 3 further mono aux paths. These aux sums are all pre/post switchable and therefore predestined for use as a headphone mix/effect feed. Alongside all of this, each of the 44 channels offers an extensive filter section with one low shelf EQ, two peak EQs and one high shelf EQ.

In addition, the BEAST offers the most comprehensive total recall functionality: All mixer and routing settings is able to be quickly saved as "snapshots" and recalled with just one click. Alongside all audio settings, this also includes visual settings and labels that you have created for a better overview. Furthermore, all settings can be saved to a file, e.g. for a specific project, and read in again on other systems.

at a glance • PCIe 1x Audiointerface
• 2 Analogue I/O, balanced
• 24 Bit AD, 32 Bit DA converter
• 192 kHz Samplerate (max.)
• Customisable I/O Level up to +24 dBu (Standard +15 dBu)
• 44 Channel "BEAST" DSP Mixer with EQ, Realtime Levelmeter & Digital Status Display
• Switchable Input SRC with 140 dB Dynamic
• Multi-Card Support

Marian - Seraph AD2

Flexible and Expandable

Marian - Seraph AD2

The TDM SyncBusUsing the TDM SyncBus the Seraph AD2 is a flexible basis for the realization of multichannel setups. Combinations with up to 3 more Seraphs or with any other SyncBus-compatible MARIAN sound system, allow setups with a number of channels according to your individual application or budget. The SyncBus enables all connected systems to share audio clock and start/stop information. This unique feature ensures reliable recording of all the signals of the sound systems involved. More than that: Thanks to an intelligent bus management, TDM SyncBus compatible systems allow the transfer and exchange of up to 8 audio signals. The signals shared will appear as input signal in each mixer of each card and are handled like every "normal" input signal.

Fast and Reliable: Multi-Client Driver SuiteEach Seraph system provides software support for Windows™ 7/8/10, Windows™ Server 2008/2008.R2/2012. The continuously enhanced driver software includes true multi-client support for ASIO 2.2 and multi-channel WDM Audio / WASAPI with lowest latencies in all software environments. In contrast to competing products, the driver allows multiple audio applications to access the sound system simultaneously via the same or different driver interfaces.

Well-structured driver menus and dialogs, combined with an easy-to-read and practical manual, make this system extremely easy to set up and to customize for the specific needs of your studio.

Powerful and Future-proof: A perfect choiceThe Seraph AD2 is available in two versions. For basic integration the SERAPH AD2 with its Wordclock input connector will serve perfectly in all recording situations. The Seraph AD2 MWX provides an additional daughter board featuring 2 MIDI in- and outputs as well as a wordclock synchronization output. The MWX will be automatically recognized upon connection with the main card and does not require additional software installation.

The wordclock ports are ideal for advanced clock setups that allow independence of the clock signals coming in on the AES/EBU inputs. That means, you can also synchronize all external equipment featuring a wordclock input simply by using the Seraph AD2 MWX as clock master. Additionally the high quality samplerate converters on the audio inputs allow a unsurpassed flexibility in the clock setup of the digital studio. But of course the SRCs can of course be deactivated to retain a signal path, that is beyond any doubt pure.

The Tech Spec

Features Specification
Sample Rate max. 192 kHz
Sample Rate Converter (SRC) Yes
AES/EBU I/O 1 / 1 (XLR)
Bit depth 32 Bit
Port PCIe
System Requirements Windows (7 or higher)
Inputs / Outputs 4 / 4
Weight 0.10kg
