Scan code: LN110070 Manufacturer code: 64103

Magewell - 64103 Pro Convert NDI to HDMI

Magewell - 64103 Pro Convert NDI to HDMI, Up to 4096x2160 60fps HDMI Output, POE or USB 5V/2.1A Powered

Thumbnail 1 : Magewell - 64103 Pro Convert NDI to HDMI Thumbnail 2 : Magewell - 64103 Pro Convert NDI to HDMI Thumbnail 3 : Magewell - 64103 Pro Convert NDI to HDMI Thumbnail 4 : Magewell - 64103 Pro Convert NDI to HDMI
Scan code: LN110070 Manufacturer code: 64103
£432.49Item currently awaiting an ETA
Pre order
From £20.76 / month (APR 14.9%)
Monthly Payment: £38.83
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £432.49
Total inc. interest: £465.89
Monthly Payment: £20.76
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £432.49
Total inc. interest: £498.22
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Magewell - '64103 Pro Convert NDI to HDMI'
Standalone NDI Decoder

Magewell 64103 Pro Convert NDI to HDMI

High Quality HDMI OutputThe Magewell 64103 Pro Convert NDI to HDMI is a standalone NDI decoder which converts NDI stream to HD HDMI signal and supports up to 4096x2160 60fps HDMI output. Powered by POE or USB 5V/2.1A.

~1.1A5V Max Current

Up to 4096x2160 60fpsHDMI Output

~5WMax Power Consumption

Amazing Features • Optimize H.26x stream decoding performance and simplify operations
• Add the function of switching decoding channels by pressing hotkeys on a connected keyboard
• Fix known defects and optimize user experience

Magewell -  64053 Pro Convert HDMI TX

The Tech Spec

Features Specification
Supported Web Browsers (tested) Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above

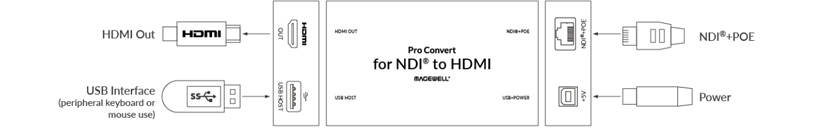

Output Interfaces HDMI: DVI-D 1.0, HDMI 1.4, HDMI 2.0
Storage Interface SD Card (functions to be developed)
Screw Mounting Hole ¼–20 mounting hole
Network Interfaces 10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface USB2.0 Type B: 5V/2.1A power supply, USB RNDIS/ECM
USB3.0 Type A: Support for connecting peripherals (keyboard and/or mouse) to customize the video and audio settings
Control Buttons MENU: press to display the menu, or cycle through the options
SELECT: press to display the menu, enter current option, or confirm the selection
HDMI Output Features Support for up to 4096x2160 60fps HDMI output
Support for 96KHz 16bits 8-channel audio streams
Support for delivering videos at the preferred video format according to the EDID of the connected monitor
Stream Decoding Features Support for decoding full NDI® and NDI HX in NDI 4.x
Support for decoding streams of NDI, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP
Support for decoding videos in H.264 and H.265 format
Support for decoding AAC/MP3 audios
Support for up to 150M pixels/s decoding: When receiving 2K NDI® stream, the device could decode and convert it to 2K 60fps, When receiving 4K NDI® stream, the device could decode and convert it to 4K 15fps
Support for modifying configurations using the Web UI or the Options menu
Setting Video OSD composition, including: Source name & resolution, Tally indicators, Audio meter, Audio meter scale, Center cross, Safe area
Video scaling, frame rate and aspect ratio conversion
Video color format conversion: Auto or manual selection of input color format, Support YUV BT.601, YUV BT.709 color formats
Video vertical and mirror flip
Remote controlling the PTZ device connected to the video source
Setting audio gain, sample rate and channels
Device Name Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support for setting board-index, from 0 to F, through the on-board rotary switch.
Firmware Upgrade Support for manual update using Web UI
LED Indicator Power LED status indicator: On: power connected, Off: power unconnected
Decode LED status indicator: On: decoding in progress, Blinks: decoding error, Off: source unselected
Form Factor 100.9mm (L) x 60.2mm (W) x 23.3mm (H)
Accessories USB 2.0 A to B Cable
5V/2.1A power adaptor
L-bracket
Power Consumption 5V max current: ~1.1A
Max power consumption: ~5W
Working Environment Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
