Mackie Onyx Producer 2.2 USB Interface

Mackie Onyx Producer 2.2 USB Interface, 2 Onyx Preamps, Direct Monitoring, MIDI I/O, Traktion T7 Recording Software

Thumbnail 1 : Mackie Onyx Producer 2.2 USB Interface Thumbnail 2 : Mackie Onyx Producer 2.2 USB Interface Thumbnail 3 : Mackie Onyx Producer 2.2 USB Interface Thumbnail 4 : Mackie Onyx Producer 2.2 USB Interface Mackie Onyx Producer 2.2 USB Interface : video thumbnail 1
Scan code: LN85033 Manufacturer code: 2048720-00
Order now and receive it between 25th Nov and 27th Nov
From £9.81 / month (APR 14.9%)
Monthly Payment: £9.81
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £109.20
Total inc. interest: £117.62
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 25th Nov To 27th Nov to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Perfect for Budding Producers
Mackie - 'Onyx' USB Audio Interface

Mackie Onyx

creativity WITHOUT LIMITSBudding producers, singer/songwriters and content creators alike will adore Mackie’s ‘Onyx Producer 2-2’. Delivering high-res 24-bit/192kHz converters which combine with premium analogue circuitry to bring forth top-tier audio. Dual boutique-sounding Onyx mic preamps provide awesome fidelity and dynamic range, whilst their XLR/TRS combo inputs are capable of taking care of just about anything! Mackie also included a Hi-Z switch on each channel to allow for DI’ing of guitar or bass.

Zero-latency direct monitoring and an integrated headphone output make tracking with the Onyx Producer 2-2 oh so simple. Furthermore, it’s possible to connect your synths, controllers and any other hardware you might have with ease, thanks to the on-board MIDI connectivity. Bus powered to ensure transportation isn’t an issue, the Onyx Producer 2-2 is the perfect way to capture any performance.

2Hi-Z Inputs

24-bit/192kHzA/D Resolution

2Mic Inputs

Hear the Difference

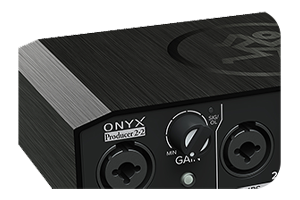

mackie - 'onyx producer 2-2' Combining high-resolution 24-bit/192kHz converters with premium Mackie analog circuitry and Built-Like-A-Tank™ hardware design, the bus-powered Onyx Series USB Audio Interfaces give you the power to capture your best performance and experience media with pristine fidelity at home or on the go.

Perfect for singer-songwriters the Onyx Producer 2•2™ expands the versatility with dual Onyx mic pres and MIDI I/O for controllers, synthesizers and more.

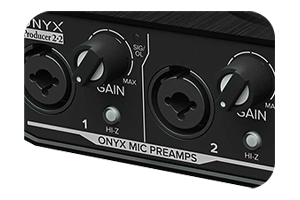

Analogue CircuitryWhether you’re tracking your latest song idea or doing a live stream, the Onyx Series USB Interfaces deliver true studio-quality sound with maximum headroom and ultra-low noise. Utilizing our proven Onyx™ mic preamps, everything from vocals to guitars to synthesizers will be captured with incredible accuracy and warmth.


Direct MonitoringFeaturing a true analog monitoring path directly from the preamps to your studio monitors and headphones, you can track while listening in either mono or stereo to the direct analog source with zero routing. Not only that, it also means you can adjust your buffer settings to maximize your computer’s processing ability.

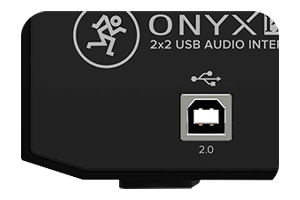

Get ConnectedOnyx Series USB Interfaces feature USB 2.0 connectivity for fast data transfer and minimal latency. Also, being bus powered, your studio can be truly mobile – just plug into your laptop and you are ready to go, no external power required. Compatible with Mac (Core Audio) and PC (ASIO).

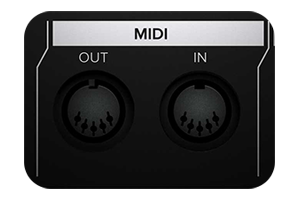

MIDI I/OAll that great MIDI gear shouldn’t go unused. The Onyx Producer 2•2 is equipped with MIDI I/O to keep you in touch with your favorite synths, controllers, sequencers, and more. Perfect for complex live performance and studio setups.

'Waveform OEM' Software Included

4K Recording

WAVEFORM OEM™ DAWWaveform OEM is a multi award-winning workstation, featuring powerful and creative tools to inspire the modern musician. Unlike typical ‘Lite’ versions, it does not impose any restrictions – you get unlimited track count, powerful features, compatibility with all popular plugins and efficient performance on Mac®, Windows®, and Linux® operating systems.

DAW ESSENTIALS COLLECTION™Introducing a collection of 16 contemporary FX plug-ins for use with any DAW. These plug-ins utilize the very latest algorithms and coding techniques to deliver extraordinary sound quality in an extremely efficient package, allowing the plugins to be used liberally across a wide range of native computer systems.

Mackie 'Onyx' Series USB Audio Interfaces

Mackie - 'onyx producer'The all-new bus-powered Onyx Series USB Audio Interfaces give you the power to capture your best performance and experience media with pristine fidelity at home or on the go.

'EM-USB' Tech Spec

Features Specification
Computer Connectivity USB
Form Factor Desktop/Portable
Simultaneous I/O 2 x 2
Number of Preamps 2
Phantom Power Yes
A/D Resolution 24-bit/192kHz
Built In DSP/FX FX plug-ins
Analogue Inputs 2 x XLR-1/4" combo (mic/line/Hi-Z)
Analogue Outputs 2 x 1/4" (monitor out)
Headphones 1 x 1/4"
USB 1 x Type B
Software Tracktion Music Production, DAW Essentials Collection plug-ins
OS Requirements - Mac OS X 10.8 or later
OS Requirements - PC Windows 7 SP1 or later
Bus Powered Yes
Power Supply USB Bus powered
Computer Interface Type USB 2
Connections (Input) 2 x XLR / Jack Combo
Mic Preamps (Max) 2
Instrument Inputs (Max) 2
Phantom Power Yes
Sample Rate (Max) 192 kHz
Bit Resolution 24
iPad Compatible No
Connections (Output) 2 x 6.35mm (1/4") TRS Jack
Dimensions (mm)
DSP Processing No
Misc. Notes
Additional Information
Scan Code LN85033
Model Number 2048720-00
GTIN 663961053166

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
28 days
RTB Period:
12 months
