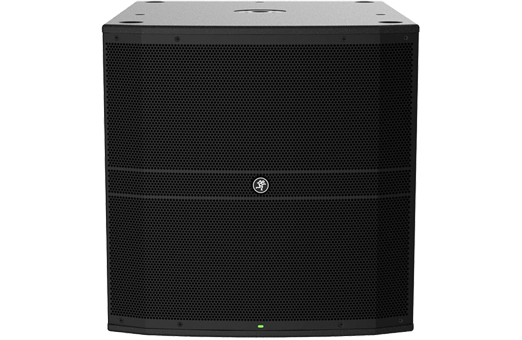

18" Powered Subwoofer
Mackie - 'DRM18S'
2,000-watt Active Subwoofer
with 18" High-excursion WooferBuilding a world-beating PA rig is simple – once you have Mackie’s DRM18S that is. This ground-breaking active subwoofer is packing 2000 watts of power and revolutionary DSP to ensure premium live sound. The DRM18S was engineered for professional live performances, with a custom high-sensitivity transducer and a road-ready texture-coated 18mm plywood cabinet.
In addition to all of this, the DRM18S couldn’t be simpler to set up, thanks to Mackie’s DRM Control Dashboard, featuring a high-contrast, vibrant full-colour display on the rear panel. For world-beating sound and simple setup, you’ll be hard pushed to find a better subwoofer than Mackie’s DRM18S..
18"LF Driver Size
30Hz-120hzFrequency Range
135dBMax Peak SPL
at a glance
• State-of-the-art active subwoofer
• 18" high-excursion woofer delivers exceptional sensitivity & bass response
• Acoustic correction yields reference-quality sound — even at high SPLs
• Loaded with Impulse DSP for peak performance
• Alignment Delay control for delay stacks
Premium Mackie Features!
Mackie - 'DRM' series Learn why DRM is the best loudspeaker series in its class.
Advanced Impulse™ DSP ModuleWith up to 2300W of pure, efficient Class-D power, DRM Series Loudspeakers have the headroom for the most demanding applications. And to ensure the best performance possible, Power Factor Correction technology keeps the system running perfectly even when plugged in to AC power that is a bit unstable.
Versatile ConfigurationsDRM Series loudspeakers offer a complete solution for a wide range of venues from the stage to front-of-house. All models feature M10 flypoints plus available configurations such as floor monitor, line array, dual-angle pole mount, and more.
Here Comes The BoomWith up to 2300W of pure, efficient Class-D power, DRM Series Loudspeakers have the headroom for the most demanding applications. And to ensure the best performance possible, Power Factor Correction technology keeps the system running perfectly even when plugged in to AC power that is a bit unstable.
Road-Worthy DesignSolid-wood cabinets are internally braced for enhanced rigidity and acoustic performance. The tough, durable textured coating offers a layer of protection that is ready for every gig. Integrated handles, rubber feet that won't fall off, steel grilles and amplifiers are designed and built to handle high-demand production day in and day out.
DRM Control Dashboard
full-colour displayWhen setup time is limited, changes need to happen on the fly, or you just want to get your system going without extra hassle, the last thing you need is the controls on your loudspeakers being difficult.
The DRM Control Dashboard™ starts with a big, bright, full-colour display that is easy to read and offers unmatched visual feedback on levels, adjustments, and more. The default window keeps you informed on every critical setting at a glance. Big green level meters let you know clearly when you have signal and if it is clipping.
But how do I control it? One single knob, that's it. Spin to select what you want, push in, set it how you like it, done.
Control Overview
• 3-Band Parametric EQ
• Venue Specific Voicing Modes
• Array Modes (DRM12A Only)
• Variable Crossover
• Alignment Delay
• Configuration
• Real-time amplifier temperature
Advanced Impulse DSP Module
What does it do for me?Mackie’s filtering technology is not your typical speaker processing. The goal of our Advanced Impulse™ DSP is to remove all the anomalies that loudspeakers and horns contribute to a signal, from “honkiness” or “squelch” to "mushy" low end, effectively making the drivers "invisible" and output nothing but perfect, clean sound.
By more intelligently (and more thoroughly) employing the benefits of FIR filtering, Advanced Impulse DSP eliminates undesired acoustic anomalies across the entire dispersion zone (horizontal and vertical), as well as frequency range and time domain.
How it's doneThe main way this is accomplished is by measuring the negative frequency response and time domain impacts that each transducer and horn in the system introduces – on axis as well as off – and reversing/correcting for those anomalies before the signal hits the speaker. The result is the output from the speaker is fully corrected for flat, clear, time-aligned, and smooth sound throughout the entire time, space, and response domains.
Want to learn more?Check out the full rundown from a Mackie Acoustic Engineer!
DRM Series - DRM Control Dashboard Guide
From levels to EQ to delay, the DRM Control Dashboard is the nerve center for everything on your DRM Series Powered Loudspeaker. Whether you are a proud new owner or just looking to learn more about DRM, this complete guide will get you well informed on all the tools available in the DRM Control Dashboard.
The Tech Spec
| Features | Specification | Powered/Unpowered | Unpowered |
|---|---|
| LF Driver Size | 18" subwoofer |
| Impedance | 8 ohms |
| Power Rating | 500W Continuous, 1000W Program |
| Total Power | 2000W Peak |
| Inputs | SpeakON |
| Outputs | SpeakON |
| Frequency Range | 33Hz-250hz (-10 dB) |
| Frequency Response | 40Hz-250Hz (±3 dB) |
| Maximum Peak SPL | 129dB |
| Mounting Options | M20 Threaded pole attachment, Flyable via FB100 Fly Bar and FKDRM18S kit (optional) |
| Enclosure Material | 18mm Plywood |
| Height | 23" |
| Width | 23" |
| Depth | 31.1" |
| Weight | 75.7 lbs. |
