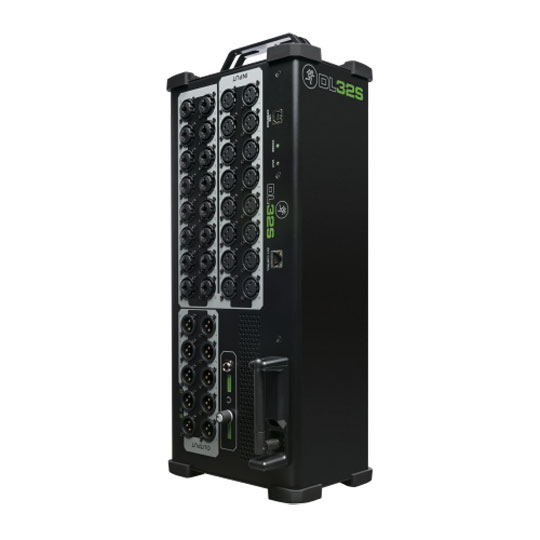

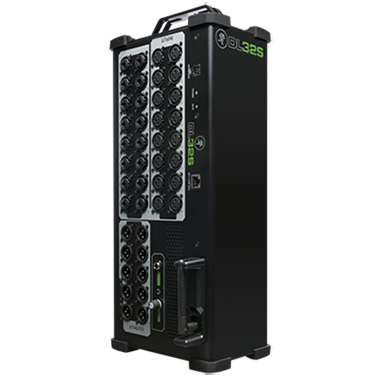

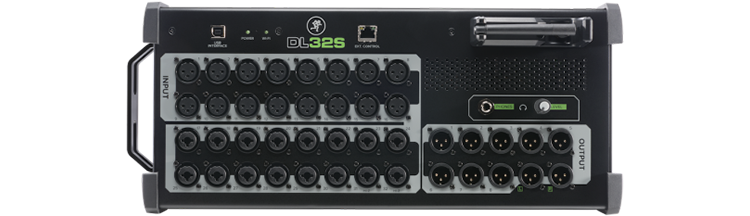

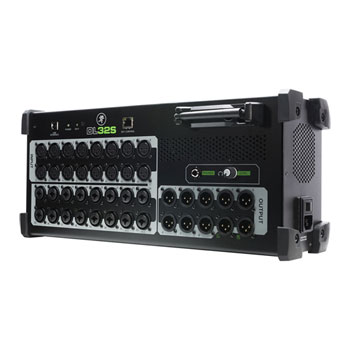

Mackie DL32S Stage Box Mixer
Mackie - DL32S, 32-Channel Wireless Digital Live Sound Mixer with Built-In Wi-Fi
- SCANPROTECT Protect against installation damage for 28 days. More info
32 Channel Wireless Digital Mixer
Mackie - DL32S
EXPERIENCE YOUR BEST MIX EVERThe DL32S wireless digital mixer delivers proven mixing power with legendary Onyx+ mic preamps in an all-new Built-Like-A-Tank™, stage-friendly design made to withstand real-world abuse. Get mixing quickly with built-in Wi-Fi and the industry-leading, multi-platform Master Fader™ app.
Create stunning multi-track recordings and get playback for a virtual soundcheck via USB I/O. Loaded with channel/output DSP plus 4 FX processors, DL32S gives you the capability and flexibility you need for your best mix ever.
MASTER FADERMaster Fader is the main user interface for your DL Series mixer. Rather than knobs, faders and buttons on a large piece of hardware, you get powerful mixing tools on your tablet, Mac, or PC and at up to 20 different devices simultaneously. The intuitive design of the Master Fader app makes managing your mix, large or small, easy and efficient.
Organize your channels with view and mute groups, utilize subgroups with full bus processing, control levels of channel groups simply with VCAs, and even lock out devices from specific capabilities within the app. And when you get a mix you like, you can save it all into a snapshot.
at a glance
• Complete Wireless Control, Built-In Wi-Fi
•
32 Mic Inputs with Onyx+ Recallable Pres
• 10 Fully Assignable XLR Outputs
• 4-Band EQ, HPF & Dynamics on Each Input
•
15 Output Buses w/ EQ & Alignment Delay
• 31-Band Graphic EQ on Output Busses
• 6 VCAs and 6 Mute Groups
• 32x32 USB 2.0 Interface
Powerful Processing
studio-quality effectsFrom EQ to compression, every bit of signal processing is implemented with the highest quality possible maintaining the fidelity of each source. Every channel and output bus gets it's own dedicated processing.
The 4-band parametric EQ on each channel and output features a dedicated high-pass filter, modern and vintage modes, and built-in RTA for maximum versatility and detailed analysis of each source. The clear UI makes it easy to make adjustments, view settings, and choose presets.
Each FX processor features tons of studio-quality reverbs and delays plus effects like chorus, tremolo, flanger, and sweep filter. Fine tune each effect with advanced parameters and EQ.
The Tech Spec
| Features | Specification | Max I/O Capacity | 32x Input / 12x Output |
|---|---|
| Number of Analog Input Channels | 32 |
| Number of Mic Preamps | 32 |
| Number of Analog Output Channels | 10 |
| Faders & Level Adjustment | No |
| Built-In Effects | 4x Stereo Preset (Factory) |
| Analog Inputs | 8x XLR Balanced Input 8x Combo XLR-1/4" TRS Balanced Input |
| Analog Outputs | 8x XLR Balanced Output 1x 1/4" TRS Headphone Output |
| Digital I/O | 1x RJ45 (Wi-Fi Router, 100 Mb/s) 1x XLR AES3 Output |
| USB I/O | 1x USB-B 2.0 (Host Connection) |
