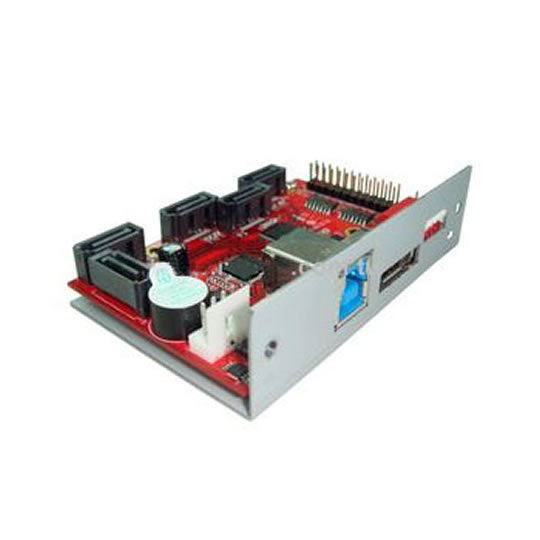

Lycom UB-208RM USB3.0 & eSATA to 5 Driver H/W RAID Adapter

Lycom UB-208RM USB3.0 & eSATA to 5 Driver H/W RAID Adapter ( for 1U Rack Mount )

Lycom
Scan code: LN40709 Manufacturer code: UB-208RM Request call
£67.49Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview UB-208RM: eSATA & USB3.0 to 5 SATA Drives H/W RAID Adapter with SCSI-1 Frame. (for 1U Rack Mount)

One external eSATA or USB3.0 host port can access 5 units of SATA drives with Hardware RAID R0, R1, R3, R5, BigDrive supported! Features • 5Ports Native SATA II 3Gbps hardware RAID Adapter.
• Hardware Raid Board with SCSI-1 (Centronic 50pin) Metal frame and Mounting hole.
• Hardware RAID controller on board for max performance.
• Supports eSATA I, eSATA II, eSATA III, USB2.0 and USB3.0 host connection.
• When SATA II or SATA III host connection, support optical drives and Hardware Raid 0, Raid 1, Raid 3, Raid 5, Clone, JBOD (BigDrive mode), Individual Drives (PM mode).
• When SATA I host connection, support Hardware Raid 0, Raid 1, Raid 3, Raid 5, Clone, JBOD (BigDrive).
• When USB3.0 or USB2.0 host connection, support Hardware Raid 0, Raid 1, Raid 3, Raid 5, Clone, JBOD (BigDrive mode), Individual Drives (PM mode).
• DIP Switch on board for easy Hardware RAID configuration.
• Supports 48-bit LBA addressing.
• Supports Native Command Queue (NCQ).
• Supports Hot-Plug.
• 24 LED Pin Headers for active LED and error LED of Host & 5 SATA devices.
• Support SATA I, SATA II, SATA III drives.
• Compliant with Universal Serial Bus 3.0 Specification Revision 1.0.
• Supports SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction.
• Supports Windows 7, Vista, XP, 2003, 2008, Mac OS X and Linux kernel 2.4 and above.
• Includes Windows GUI for RAID management and configuration.
• Fully RoHS compliant.
Specifications
Specifications
Interface
Connectivity
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
TekSpek Guides
Firewire
Firewire
Date Issued: 21st Oct 2008

You've probably read the USB Tekspek, and perhaps your intrigue, or product interest, has lead you to look up Firewire as well. The two are similar in some respects, particularly some of the products that use the two technologies. However, Firewire has its differences, which means it has both benefits and drawback when compared to USB. This Tekspek will look at Firewire and also look at it with respect to USB.

Read More

System Buses & Bandwidth
System Buses & Bandwidth
Date Issued: 21st Oct 2008

In computing terms, system buses are used to connect various components to the motherboard’s core logic and, often, to each other. Modern PCs run with a multitude of high-speed buses ranging from the interconnects between, say, the chipset and the CPU, graphics card, memory, and peripherals.

Read More

Gigabytes and Gibibytes
Gigabytes and Gibibytes
Date Issued: 23rd Aug 2005

If you've used a computer for any duration of time you'll have come across the terms “kilobyte, megabyte, gigabyte” and so on. Then there's “kilobit, megabit and gigabit” to add a bit of confusion and to top it all off you've maybe heard or read terms like “gibibyte” on occasion.

Read More

Reviews
Rated 5 out of 5 by 1 reviewer.
Rated 5 out of 5 by Instant DIY RAID Storage Pros: - Affordable. - Easy to install. - Solid performance of USB3. - eSATA connectivity. - Supports up to five disks at SATA II (3gbps) speeds. - Headers for status and error lights for the array as a whole and for individual disks. - Supports a wide range range of RAID modes. Cons: - No cache memory. - No battery power*. - Can be awkward to power. Performance: As noted, performance over USB3 is extremely good, but only once configured into a single array. When configured as a collection of individual disks performance is significantly worse than eSATA due to the lack of command queuing and general latency of USB. However, once organised into a suitable array it is easily possible to saturate USB3 with a RAID-0 or RAID-5 array with enough disks. The controller itself only has the minimum cache required for SATA communication and for it to operate correctly, though most hard drives you would want to use in a RAID array will have 64mb of cache that should eliminate this disadvantage. Power: The controller has no battery power, which means that any protection against loss of power must come from an uninterruptible power supply, or could possibly be wired into the case somewhere. Supplying power to the controller is the trickiest part, as common, affordable ATX PSUs all require a signal from a motherboard in order to activate. This isn't a problem if you intend to run the controller inside an existing computer system, but it means that installing this controller on its own inside a case intended purely for storage either requires a more specialist PSU, or the use of the "paperclip" trick to activate the PSU; this isn't as unsafe as it sounds, and simply involves using a paperclip (or wire etc.) to connect the PS_On pin of the ATX power cable to ground, causing it to turn on. My recommendation for this is to do it permanently in order to use the PSU's own mains power switch for activating your system, but to get a PSU with very stable power output. As a general rule you don't really need more than about 10-15W for every disk you want to be able to put into the system, so just buy the highest quality PSU you can afford. Personally I want for a Seasonic Platinum Series Fanless 460W PSU, also available from Scan, which should be more than enough 15 HDDs, and may even be able to handle the maximum 54 2.5" drives I could fit inside my case! Construction: To build your own RAID Array using one of these controllers is simple as all you need is: - One or more of these RAID Controllers (each one supports five disks, you can use SATA multipliers but I don't recommend it). - A computer case in your desired size, personally I recommend one with lots of 5.25" drive bays. - Some hard drives either installed into the case directly, or installed into a back-plane compatible with 5.25" drive bays. I recommend IcyBox back-planes as most of them support hot-swaping. - A PSU suitable for your RAID controller(s) as mentioned above. - Any additional cooling you want (personally I disabled my back-plane fans in favour of a separate fan controller with a large 140mm exhaust fan for the whole case as it's much quieter this way). It's pretty much a case of hooking everything together, connecting a USB or eSATA cable to your PC, and switching the unit on. Once switched on, you can use the RAID Manager software available on the driver CD or from the Lycom site (the one on the site is possibly newer). The software presents a straightforward GUI allowing you to easily construct the desired RAID array, with no need to fiddle around with the dip-switches on the back of the controller itself. Just remember that if you're going to use eSATA that your RAID controller needs to be switched on before your computer is, otherwise it may not be recognised (as eSATA isn't hot-pluggable on most systems). Summary: For self-build RAID this controller is an absolute must, I have one creating a five-disk JBOD (concatenated/big disk) set at the moment, and intend to get a second one so I can create a RAID-5 array, all in the same case. I do hope for a Thunderbolt controller in future, but for HDDs USB3 is plenty fast for five disk arrays, and while self-building isn't super cheap, it's far more affordable than Thunderbolt enclosures, and far more powerful than USB ones. 09 December 2013
