USB 3.1 Combo Host Adaptor Card with Type C and Type A 2Ports PCIe from Lycom UB-138

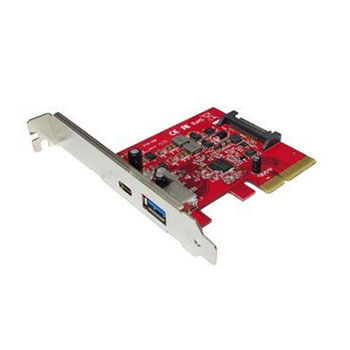

Lycom UB-138 USB 3.1 Type C + Type A 2Ports Low Profile PCIe Host Adapter

Scan code: LN70852 Manufacturer code: UB-138
£20.48
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Nov 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Directly attach the adapter to any 5V or 5V_12V SATA drive and Enjoy High Performance USB3.1 10Gbps Host Connection!

• USB3.1 PCIe x4 Lane Host Adapter supports PCIe Gen2 x2 or PCIe Gen3 x1.
• USB 3.1 Type C 1x and Type A 1x downstream receptacle ports.
• Provides 5V3A USB bus power USB 3.1 Type C port and 5V2A Type A port.
• Supports PCIe 1.0 and PCIe 2.0 and PCIe 3.0 motherboard.
• Compliant with Universal Serial Bus 3.1 Specification Revision 1.0.
• Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.1.
• Compliant with USB Attached SCSI Protocol Specification 1.0.
• All USB ports can handle SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction.
• Support USB3.1, USB3.0, USB2.0 and USB1.1 devices.
• Compliant with PCI Express Specification 3.0.
• Low Profile PCIe Form Factor.
• Regular size PCIe bracket on board and Low Profile PCIe Bracket included.
• Adapter board powered by PCIe slot.
• Optional 15Pin SATA power input can automatically provide sufficient 5V power to USB3.1 bus from 12V of power supply instead of PCIe.
• Require an empty PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.1 full performance.
• Provides driver for 32/64 bit Windows Win 10, Win8.1, Win8, Win7, Vista, 2012, 2008, 2003.
• Mac 10.9.5, Mac 10.10, Win10, 8.1, 8 natively OS built-in inbox driver support, no additional driver required.
• Mac 10.11 in-box driver Not support USB3.1.
• Fully RoHS compliant. Features • USB3.1 PCIe x4 Lane Host Adapter supports PCIe Gen2 x2 or PCIe Gen3 x1.
• USB 3.1 Type C 1x and Type A 1x downstream receptacle ports.
• Provides 5V3A USB bus power USB 3.1 Type C port and 5V2A Type A port.
• Supports PCIe 1.0 and PCIe 2.0 and PCIe 3.0 motherboard.
• Compliant with Universal Serial Bus 3.1 Specification Revision 1.0.
• Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.1.
• Compliant with USB Attached SCSI Protocol Specification 1.0.
• All USB ports can handle SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction.
• Support USB3.1, USB3.0, USB2.0 and USB1.1 devices.
• Compliant with PCI Express Specification 3.0.
• Low Profile PCIe Form Factor.
• Regular size PCIe bracket on board and Low Profile PCIe Bracket included.
• Adapter board powered by PCIe slot.
• Optional 15Pin SATA power input can automatically provide sufficient 5V power to USB3.1 bus from 12V of power supply instead of PCIe.
• Require an empty PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.1 full performance.
• Provides driver for 32/64 bit Windows Win 10, Win8.1, Win8, Win7, Vista, 2012, 2008, 2003.
• Mac 10.9.5, Mac 10.10, Win10, 8.1, 8 natively OS built-in inbox driver support, no additional driver required.
• Mac 10.11 in-box driver Not support USB3.1.
• Fully RoHS compliant.
Specifications
Interface PCIe 2.0 (x4)
Internal Connectors
External Connectors
  • 1 x USB 3.1 Type A
  • 1 x USB 3.1 Type C
Power Connector
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
RTB Period:
12 months
Manufacturer Contact Details
Loading Please Wait

Please wait . . .

Reviews
Lycom UB-138 USB 3.1 Type C + Type A 2Ports Low Profile PCIe Host Adapter is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Provides USB 3.1 This is a PCIe card that plugs into a spare slot at the back of your PC. It provides USB 3.1 on a Type A and a Type C socket. I installed it into a WIndows 10 PC, which saw the new hardware and installed the driver without having to use the supplied optical disk. When tested it worked perfectly. I have no problems recommending this for older PC's running Windows 10; I haven't tried it on older operating systems, but would expect it to work just fine. I also used a SATA power extension socket to enable charging through the USB cable.
