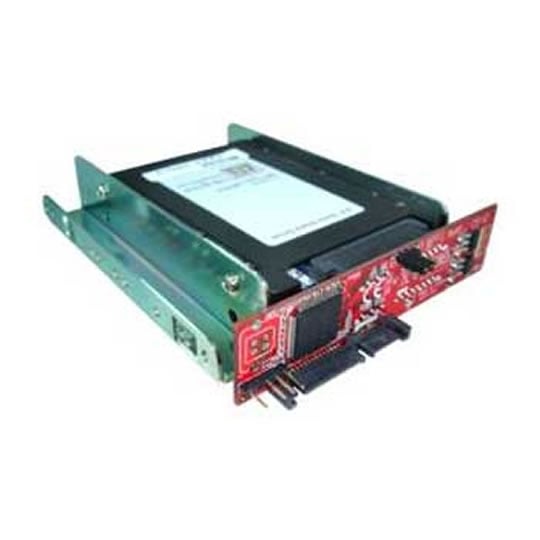

Lycom ST-139F Convert 2x2.5" Sata into a 3.5" SATA Raid Drive 3.5" form factor (inc Metal Rails)
Scan code: LN28504
Manufacturer code: ST-139F
End Of Life
Lycom ST-139F Convert 2x2.5" Sata into a 3.5" SATA Raid Drive 3.5" form factor (inc Metal Rails)
Lycom ST-139F Convert 2x2.5" Sata into a 3.5" SATA Raid Drive 3.5" form factor (inc Metal Rails)
Scan code:
LN28504
Manufacturer code:
ST-139F
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Product Overview
Convert two SATA 2.5” Solid State Disks or HDD as an Extremely High Performance & High Capacity Hardware RAID0 Disk on exactly 3.5” Form Factor!
Features
• 3Gbps SATA II high transfer rate
• H/W Raid 0 double the SSD reading performance to the world fastest drive
• Work with SATA II or SATA I or USB2.0 Host Port
• 22Pin SATA connector and 5Pin USB2.0 Pin Header for host connection
• Two 22 pin SATA (Signals and Power) female connector on board to 2.5” SSD or HDD
• Support Hardware Raid 0 (FAST, Stripping) and Non-Raid (2 Drives) modes
• Easy Hardware RAID setting by Jumper
• Supports NCQ
• Hot-plug and ATAPI support
• Complies with USB 2.0 specification transfer rate 480 Mb/s
• Compatible with USB OHCI / UHCI / EHCI hosts
• Mandatory SMART commands available
• Includes a set of metal frame and screws that convert dual 2.5” drives to a 3.5” Drive form factor
• 100% OS-transparent hardware converter to support PC, MAC and Linux, no driver required
• RoHS compliant
• H/W Raid 0 double the SSD reading performance to the world fastest drive
• Work with SATA II or SATA I or USB2.0 Host Port
• 22Pin SATA connector and 5Pin USB2.0 Pin Header for host connection
• Two 22 pin SATA (Signals and Power) female connector on board to 2.5” SSD or HDD
• Support Hardware Raid 0 (FAST, Stripping) and Non-Raid (2 Drives) modes
• Easy Hardware RAID setting by Jumper
• Supports NCQ
• Hot-plug and ATAPI support
• Complies with USB 2.0 specification transfer rate 480 Mb/s
• Compatible with USB OHCI / UHCI / EHCI hosts
• Mandatory SMART commands available
• Includes a set of metal frame and screws that convert dual 2.5” drives to a 3.5” Drive form factor
• 100% OS-transparent hardware converter to support PC, MAC and Linux, no driver required
• RoHS compliant
