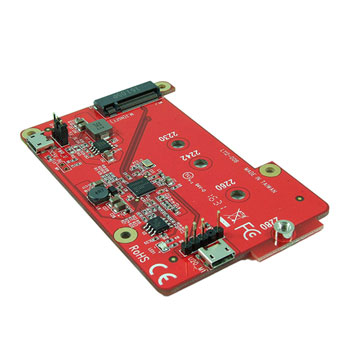

Lycom Pi-112 Raspberry Pi USB to M.2 SATA SSD Coverter Board

Lycom Pi-112 Raspberry Pi USB to M.2 SATA SSD Coverter Board

Thumbnail 1 : Lycom Pi-112 Raspberry Pi USB to M.2 SATA SSD Coverter Board
Lycom Pi-112 Raspberry Pi USB to M.2 SATA SSD Coverter Board : image 1
Scan code: LN83062 Manufacturer code: Pi-112
£11.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Oct 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Product Overview Easy install and utilize M.2 NGFF SATA SSD Drive to your embedded Raspberry Pi!

Features • Install 80/60/42/30 mm M.2 SATA SSD to Raspberry Pi via USB
• Both USB micro-B connector and USB 5Pin Pinheader connection to Raspberry Pi
• USB2.0 5Pin Pin Header Assignment: 5V, D-, D+, NC, GND
• On board activity LED for M.2 access
• M.2 NGFF type 2280-D5-B B Key Socket on board
• Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 and 2230 SSD
• Supports dual-sided SSD module 1.5mm component height on the top and bottom side
• Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)
• Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
• Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95
• PCBA powered by Raspberry Pi USB Bus
• Jumper selection either PWR-U external 5V sufficient power or Raspberry Pi own USB bus power to M.2 SSD
• Fully RoHS compliant
Specifications
Edition
Form Factor
CPU Included No
CPU Type
CPU Model
Architecture
Manufacturing Process
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
Max. TDP
CPU Socket N/A
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type
Memory Included No
Memory Capacity Included N/A
Memory Channels
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
Max. Memory Capacity
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots N/A
SATA N/A
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive None
Drive Bays N/A
Backplane I/O
RAID Support N/A
Internal I/O N/A
Network Interface Type
Network Chip/Modules
Front Panel
Back Panel
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour
Dimensions
Weight
Includes
Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
