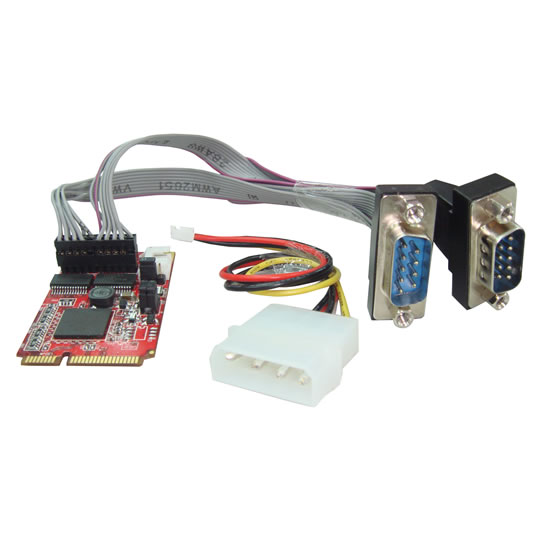

Lycom IO-109 2 Port Mini PCIe RS232

Lycom IO-109 2 Port Mini PCIe RS232 (16C950 UART)

Lycom
Scan code: LN41674 Manufacturer code: IO-109 Request call
£37.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Mid Range
Delivery options £5.48 By DPD On 9th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview IO-109 Mini PCIe 2Ports RS232 with DB9M bus Power Host Adapter (16C950 UART)

Add 2 Ports RS232 with DB9M 5VDC or 12VDC bus power output and 128 byte deep FIFO at Mini PCI Express x1 card to Transmit and Receive Data at 230 Kbps to your PC System! Features 1. Mini PCI Express
• 1-lane 2.5Gbps PCI Express host interface for embedded application
• Compliant with PCI Express Specification, revision 1.0a
• Fully RoHS compliant

2. RS232 (UART) Serial Port
• Two 16C950 High performance UART DB9M channels
• 128-byte deep FIFO per transmitter and receiver
• Superset and backward compatible to 16C550, 16C650, 16C750 and 16C850
• Jumper to select 5VDC or 12VDC Power output on DB9M Port for POS device use
• Individual Jumper to select RI / DC-Power in each DB9M Port
• Includes one power cable for sufficient 5V or 12V on DB9M bus power from PC power supply
• Supports data transfer rate up to 230 Kbps
• 128 Rx interrupt thresholds
• 128 Tx interrupt thresholds
• 128 flow control thresholds
• Supports 64bit / 32bit Windows and Linux
• Chipset: Oxford
Specifications
Specifications
Interface Mini PCI-E
Connectivity 2 x RS232
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
12 months
