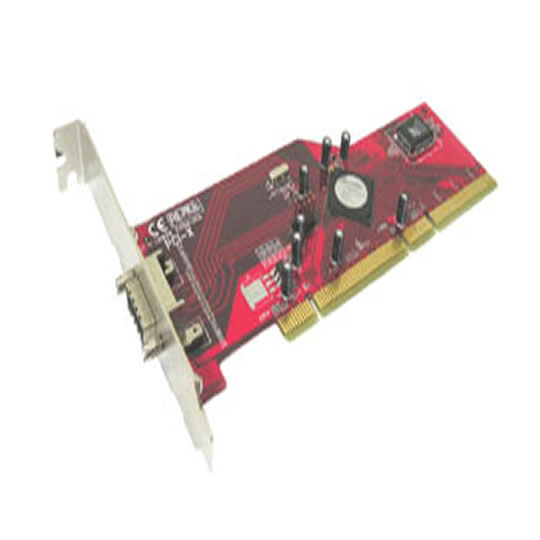

Lycom 64-105M Raid5 SATAII - 3Gbps Multilane 4xExternal 4Ports 64Bit Low Profile PCI-X Host

Lycom 64-105M Raid5 SATAII - 3Gbps Multilane 4xExternal 4Ports 64Bit Low Profile PCI-X Host

Scan code: LN20087 Manufacturer code: 64-105M Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Mid Range
Delivery options £5.48 By DPD On 20th Mar 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview SATA II-3Gbps External 4Ports PCI-X card with Multilane 4x External connectors to support NCQ, Port Multiplier, Raid5, Raid10, Raid0, Raid1and JBOD!

RAID 0 (Striping), RAID 1 (Mirroring), RAID 0+1 (mirrored-stripping), RAID 5 (Distributed Parity RAID) and JBOD (Just Bunch of Disks) manage multiple disk drives to enhance I/O performance and provide redundancy in order to withstand the failure of any individual member, without the loss of data.
Features Type 4x Multilane SATA connector with thumbscrews

48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
1. PCI-X

Compliant with PCI-X Specification, revision 1.0a

Supports 133 MHz PCI-X with 64-bit data
All registers appear in unified memory space
Full-chip command completion status accessible with single PCI-X burst access
I/O port access to register space
Low Profile PCI form Factor
2. High Speed Serial ATA

Fully compliant with Serial ATA 1.0a and Serial ATA II Extensions to Serial ATA 1.0a Specifications revision 1.1

Hot-plug capability

Supports Serial ATA Generation 2 transfer rate of 3.0 Gbps

Supports Serial ATA II Port Multiplier 1.0 Specifications revision 1.1

Supports First-party DMA commands for Native Command Queuing (NCQ)

Plesiochronous, Single PLL architecture, 1 PLL for 4 ports

Output Swing Control

Supports four independent Serial ATA channels

Independent Link, Transport, data FIFO, command fetch, scatter/gather, and command execution

31 Commands and Scatter/Gather Tables per Port

Four Pin header on board for Device LED connection

Protocol Override per Command

Staggered Spin-up Control

RAID 5 (Distributed Parity RAID) has Highest Read data transaction rate and Good aggregate transfer rate

JBOD is a virtual disk that combines all disk drives as one entire disk drive

Provides RAID 0 (Stripping) to greatly increase the performance of data transfer by simultaneously writing data to multiple drives

Provides RAID 1 (Mirroring) to protect the data from a disk failure by writing identical data on 2 drives

RAID 0+1 (Mirrored-Stripping) combine both Striping and Mirroring technologies to provide both the performance enhancements that come from Striping and the data availability and integrity that comes from Mirroring

Completely with drivers for Windows 2000 ,XP and 2003 Server

Supports 64bit / 32bit Windows Vista

Fully RoHS compliant

Supports Mac OS X v10.3.9, v10.4. See SiliconImage SiI3124.

Linux 32bit / 64bit drivers support for RHEL 4.0 Up2, RHEL 4.0 Up3, SuSE9.0 SP2, SuSE9.0 SP3. See SiliconImage SiI3124.

Interface PCI-X (64 bit)
  • 4 x eSATA 3Gb/s
  • 1 x PCI-X (64 bit)
