End Of Life

MEI 100 SeriesLD Systems - Wireless IEM's

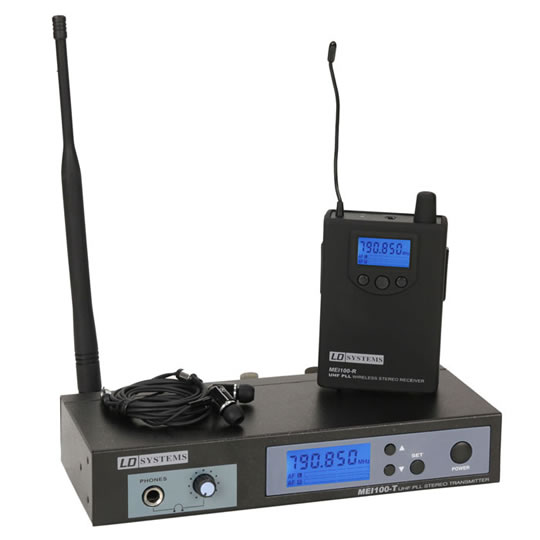

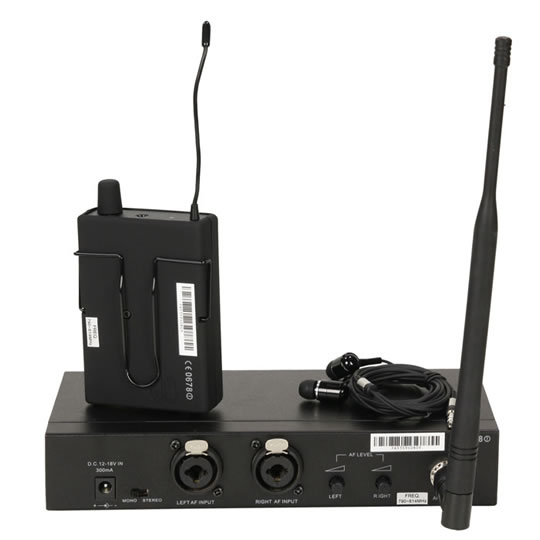

LD Systems MEI 100 Series Wireless In-Ear Monitoring System (X Version - Freq. Range 838 - 865 MHz)

LD Systems
Scan code: LN42887 Manufacturer code: LDMEI100X Request call
End Of Life
Mid Range
Product Overview X-Version ! Frequency Range: 838 - 865 MHz
The MEI 100 is a wireless in-ear monitoring system with outstanding sound characteristics. A corrected frequency response ensures optimal adaptation to auditory requirements. The MEI-100 features 160 possible frequencies, permitting 8 systems to be operated in parallel without intermodulation.
A limiter at the input prevents distortion even with an overload of +12 dB, providing optimal hearing protection. Both mono and stereo operation are possible, making the system very flexible and suitable for many applications such as live acts, theatre and voice.
Both the sender and the receiver have a clearly arranged multifunctional display, which indicates all operating states. The sender also has a headphone output which allows monitoring at the sender side.
Optimised power management ensures a long battery life without replacement. High-quality earphones for the receiver are included.
Features Specifications MEI 100 TX Transmitter
Article No.: LDMEI100TX
Frequency range: 838 - 865 MHz
RF output power: 10 dBm
Gain adjustment range: 20 dB
Max. audio input level: +12 dBV
Front panel controls: Power, Set, Up and Down, Headphone volume control
Rear panel controls: Input level left/right, Stereo/Mono switch
Input: Neutrik COMBO balanced (left/right)
Dimensions: 212 mm x 90 mm x 38 mm
Power requirements: 12 V to 18 V at 300 mA, supplied by external power supply
Operating temperature: -10 °C to 50 °C

Specifications Receiver MEI 100 BPRX
Article No.: LDMEI100BPRX
Frequency range: 838 - 865 MHz
Image rejection: > 60 dB
S/N ratio: > 95 dB
THD: < 1%
Audio output level: 100 mW 32 Ohm
Audio response: 80 Hz to 18 kHz ± 3 dB
Dynamic range: > 90 dB, A-weighted
Dimensions: 95 mm x 65 mm x 25 mm
Power requirements: 2 AA batteries
Battery life: > 8 hours (depending on battery type)
