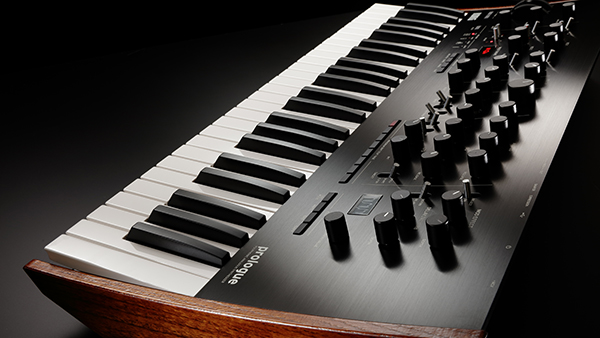

The ultimate multi-voice, multi-timbre, multi-engine Analog Synthesizer
A new-generation of flagship analog synthesizer. prologue is a fully-programmable, full-featured, professional synthesizer. Preceded by the four-voice polyphonic minilogue and the monophonic monologue, it's the long awaited debut of the flagship: the prologue.
prologue is a polyphonic analog synthesizer equipped with a full-sized keyboard. With powerful analog circuits that are descended directly from the earlier models of the series, together with a newly developed digital multi engine and gorgeous DSP-based effects, prologue expands the variety of sounds and the possibilities for user customization.

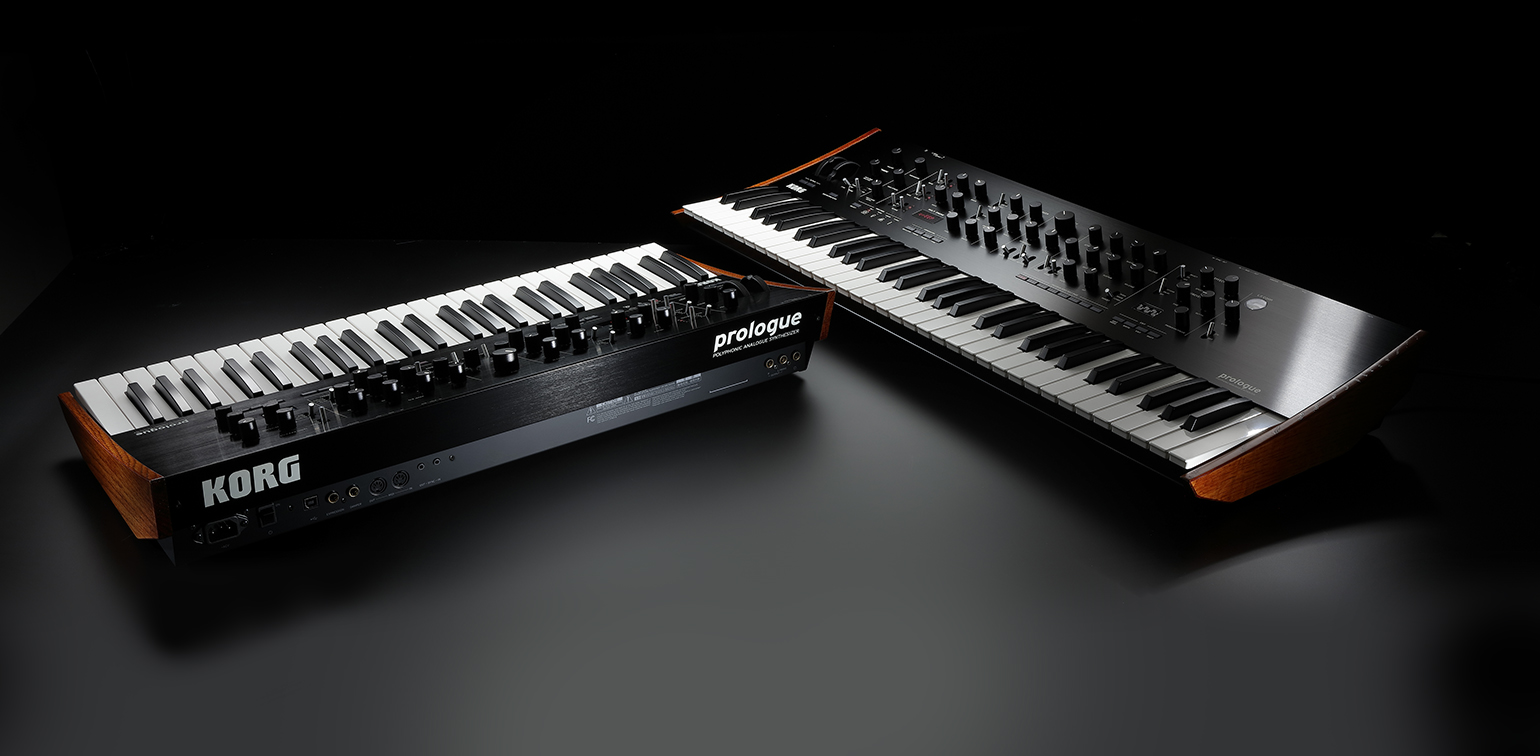

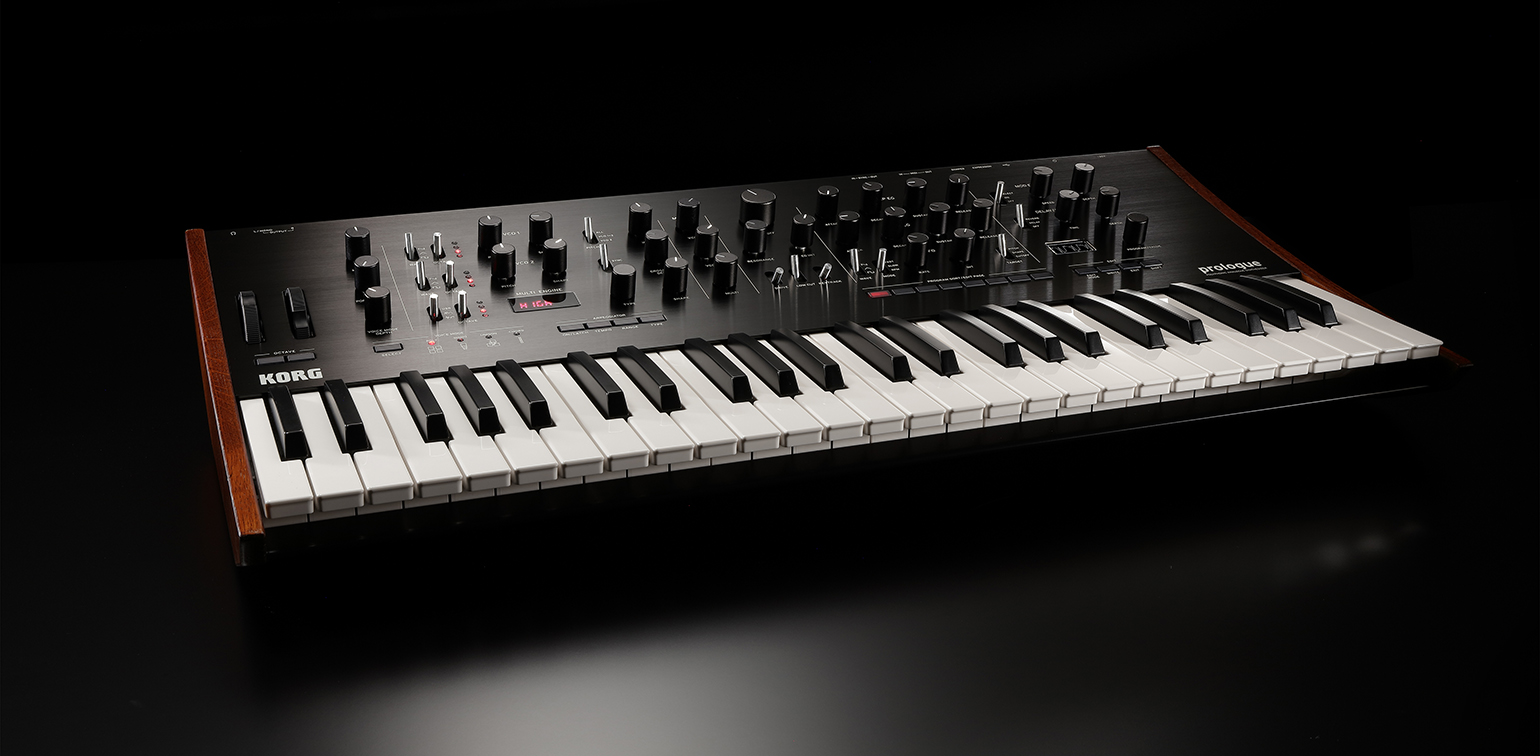

The lineup is comprised of two models that cover musicians' needs for not only stage use, but also studio, home, or touring use: 16-voice 61-key prologue-16, and the eight-voice 49-key prologue-8. These instruments are capable of sounds that go beyond existing analog synthesizers.
16/8-Voice Analog Sound

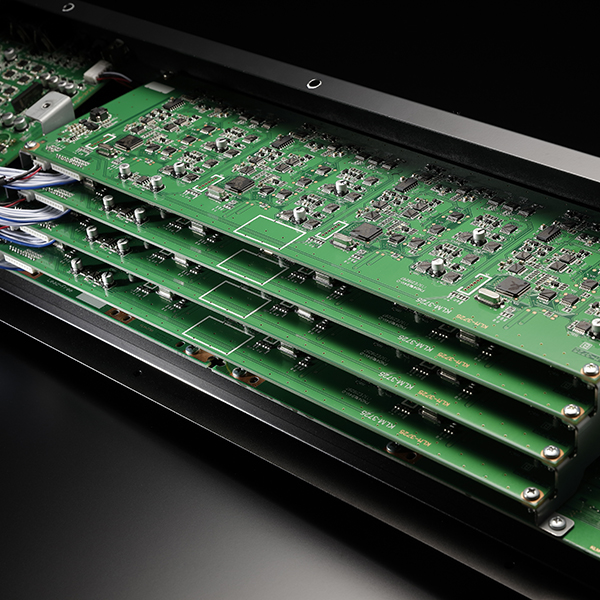

The prologue is a polyphonic analog synthesizer with 8 or 16 multitimbral voices. KORG's analog synthesizer development in recent years has culminated in the prologue, which was designed using 11,000 discrete electronic components. Although the prologue is a flagship instrument, it still retains the inviting feel and accessibility of its predecessors. It features a pure analog path, impeccable sound quality, stunning presence unlike any other poly synth, and the same intuitive interface as the minilogue and monologue, granting you intuitive access to a vast world of analog synthesis.
The prologue uses a structure of 2VCO + MULTI ENGINE, 1VCF, 2EG, 1VCA, and 1LFO. In addition to distinctive, original circuitry, such as wave shaping to shape the oscillator's overtones and a sync/ring switch, prologue also features a two-pole low pass filter with enhanced sharpness, drive that adds powerful distortion, and a low cut (high pass) switch. Every detail has been improved on from minilogue and monologue. Its sound covers every sonic possibility: fat basses, powerful leads, and the beautiful pads that you expect from a polyphonic synthesizer.

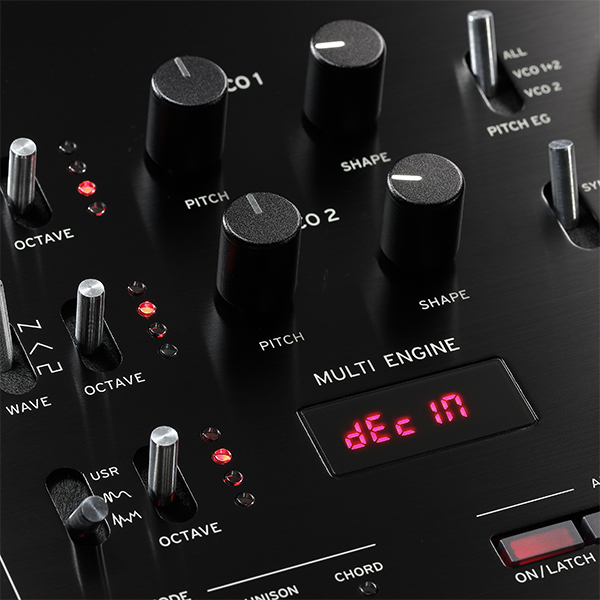

Newly Developed Multi-Engine
The ingenuity of prologue goes beyond its analog design. The newly developed multi engine is provided as VCO3, adding digital waveforms and FM. This multi engine, which is equipped with three different sound engines, can be combined with the analog VCOs to expand prologue's sonic potential far beyond that of a traditional analog synthesizer.
There are four types of noise generator, indispensable for percussive sounds or sound effects. Experience how digital filtering can produce direct changes in the color of the noise.
The VPM (Variable Phase Modulation) / FM oscillator was newly developed for prologue. Its metallic and sharp sounds with their complex overtones could never be obtained by analog means. With 16 types of oscillator and the SHAPE knob, you'll be intuitively guided through complex sound design. Combine these wave shapes with prologue's gorgeous analog filters, and prepare for sounds you never thought possible.
The user oscillator section lets you load oscillator programs of your own creation. Sixteen slots are provided, and one type of morphing wavetable oscillator is built-in as a preset.

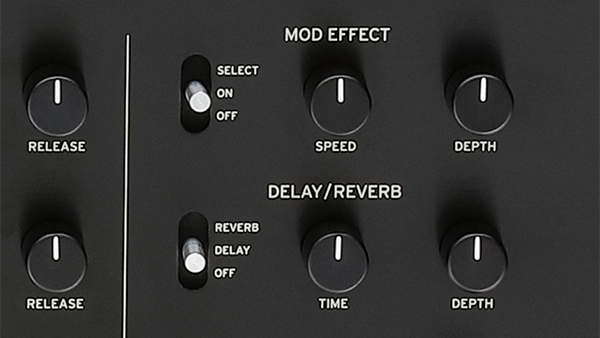

The high-quality digital effects feature pristine 32-bit floating-point processing, and add a further polish to the sound of the prologue. With two effect units provided (a modulation effect and delay/reverb), you can choose from a wide variety such as chorus or ensemble, warm tape delay, or diverse reverbs. The user effect slots let you load effect programs of your own creation.
The prologue offers an SDK (Software Development Kit) that allows developers to program, customize and extend the capabilities of the multi-engine and digital effects and is expected to be available for download in the spring of 2018. The prologue provides 16 user oscillator slots and 16 user effect slots, and users can use the prologue Librarian software (also expected to be available for download in the spring of 2018) to load into their prologue new oscillators and effect programs created by developers with the prologue SDK (Software Development Kit).
What types of sound will you create by combining the expanded digital oscillators with analog synthesis? You can create original programs and share code to participate in the user community. Start with sample code provided by KORG. The prologue belongs to you.

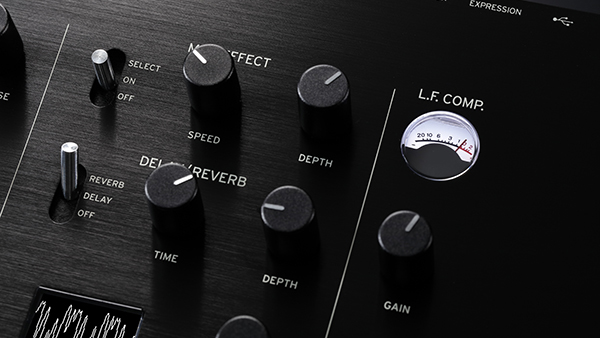

The exclusive VU meter is available only on the prologue-16, and indicates the newly developed master effect L.F. COMP. It's a low end booster/compressor using an analog circuit, delivering a solid sense of presence that cannot be obtained from a simple EQ. You'll particularly notice the difference in high-volume stage performances where maximum dynamics can be utilized.

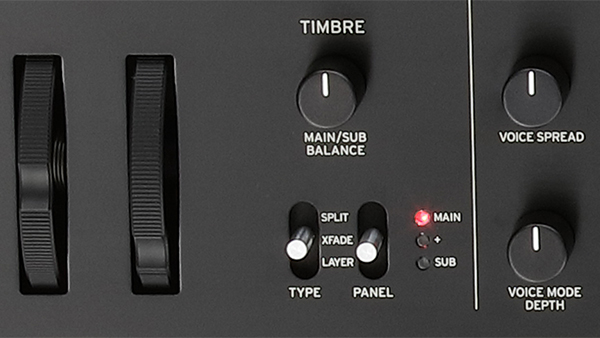

The prologue is a two-timbre synthesizer that lets you play two different programs simultaneously. In addition to layer and split, you can use crossfade to smoothly transition between the main timbre and sub timbre. An ample 16 or 8 voices ensure that the player's advanced performance needs will be met.
The prologue provides voice modes that let you freely combine the 16 or 8 voices for performance. The standard POLY mode lets you play chords with up to 16 or 8-note polyphony. MONO mode is ideal for bass using the sub-oscillator. UNISON allows you to generate thick lead tones by sounding all voices in unison. CHORD lets you play chords with one finger. In conjunction with the DEPTH knob, you can use these modes to obtain a variety of effects.

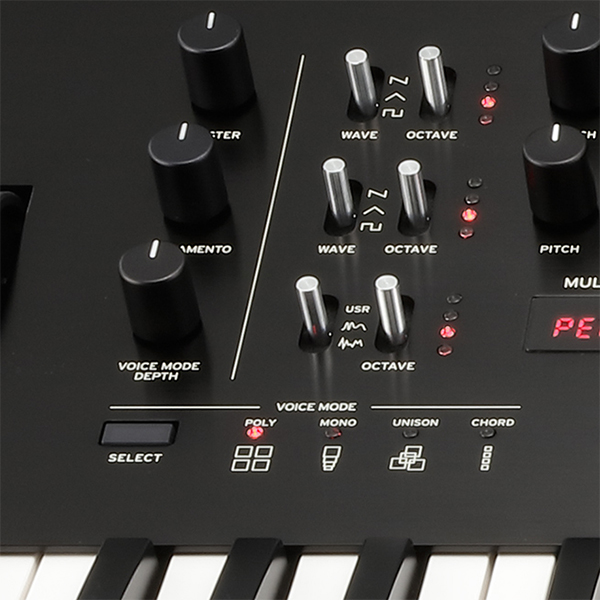

Four Voice Modes
- POLY: Operates as a poly synth with up to 16 or 8 voices. Turn the VOICE MODE DEPTH knob to switch to DUO mode, in which the instrument operates in unison as a poly synth with up to 8 or 4 voices.
- MONO: Operates as a mono synth with sub oscillator.
- UNISON: Operates as an all-unison mono synth.
- CHORD: Plays chords.

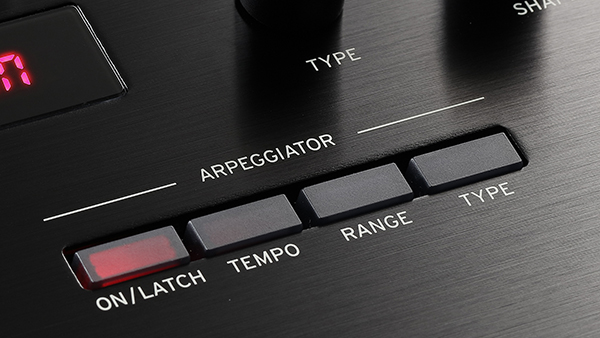

The powerful arpeggiator opens up a world of limitless inspiration. It provides a four-octave range, and six arpeggiator types including manual set. From phrases that could not be performed on a keyboard to sequence-like sound designs, the arpeggiator can play a versatile array of roles.
The program sort function lets you instantly change the sorting order of the 500 programs. You can sort by category, alphabetical order, use LIKE to view the programs that you marked as your favorites, FREQUENT to sort the programs in order of their frequency of use, or ENVELOPE to sort the programs in order of their envelope shape (note duration). By choosing from eight different sorting conditions, you'll be able to quickly find the sound that you need, without interrupting the tempo of your rehearsal or production workflow.
Eight program sort methods
- PROG NUM: Sort by program number.
- CATEGORY: Sort by program category.
- ALPHABETICAL: Sort programs alphabetically.
- LIKE: Sort by programs that you "liked."
- FREQUENT: Sort by how frequently you used the program.
- ENVELOPE: Sort by envelope shape.
- RANDOM: Sort randomly.
- LIVE SET: Sort programs registered in a live set.

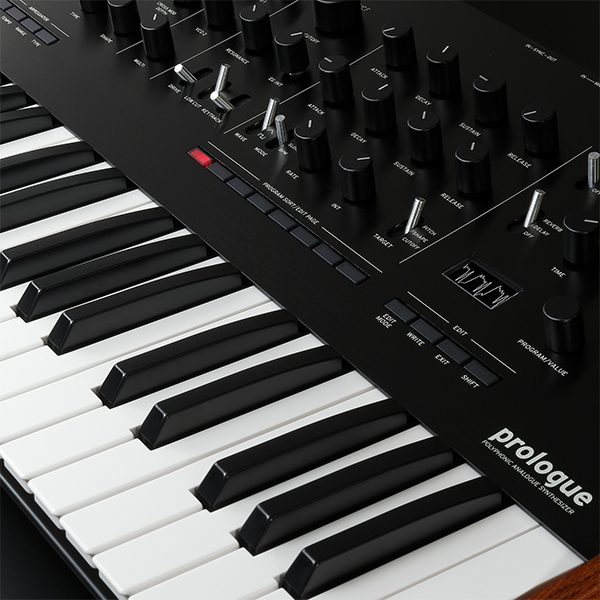

Japanese-Made Natural Touch Keyboard
The attention to detail expected of a flagship extends to prologue's playability and design as well.
The keyboard is a high-quality Japanese-made natural touch keyboard, providing the same superb touch and feel as on KORG's high-end workstations, and allowing a high degree of expressive power.
prologue's body emanates beauty and the presence of a boutique synth, and newly redefines the look of a classic synthesizer. The black aluminum front panel features the same curvature as the minilogue, and sports a beautiful hairline finish. Metal knobs with a sense of weight, diamond-cut silver indices, and oak wood side panels are some of the details that emphasize the high quality of this Made In Japan instrument.
• Newly developed multi-engine equipped with three types: noise, VPM, and user.
• High-quality digital effects.
• An open API (Application Programming Interface) for user-created oscillators and effects
• Bi-timbre support.
• Voice modes that allow voices to be flexibly recombined.
• Arpeggiator equipped with a variety of types and range settings.
• Program Sort allows rapid access to 500 programs.
• Japanese-made high-quality natural touch 49-key keyboard.
• Oscilloscope function shows the waveform visually.
• Tough and stylish body made of aluminum and wood.
• Sync with another groove machine to enjoy jam sessions.
• Lineup includes a 16-voice 61-key model and an eight-voice 49-key model.
• prologue-16 61 keys (Natural touch keyboard with velocity)
• prologue-8 49 keys (Natural touch keyboard with velocity)
• Analogue sound generator + Multi digital sound generator (Noise, VPM, User)
• prologue-16 - 16 voices
• prologue-8 - 8 voices
• 500 voices (more than 250 preload, 250 user programs).
• Each program provides a program sort function that includes voice mode and timbre settings, and allows up to 8 × 4 banks of live set programs to be registered.
• 4 (POLY, MONO, UNISON, CHORD).
• The VOICE MODE DEPTH setting allows different parameters to be varied for each mode.
• Max two timbre (Main timbre, Sub timbre)
• Layer, crossfade, and split settings are possible.
• 6 types (Manual, Rise, Fall, Rise Fall, Random, Poly Random).
• Tempo and note range can be changed
• 8 (PROG NUM, CATEGORY, ALPHABETICAL, LIKE, FREQUENT, ENVELOPE, RANDOM, LIVE SET)
Main Synth Parameters
• VCO1 - WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
• VCO2 - WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
• MODULATION - PITCH EG (ALL, VCO1+2, VCO2), PITCN EG INT, SYNC, RING, CROSS MOD DEPTH
• MULTI ENGINE - NOISE/VPM/USER, OCTAVE, TYPE, SHAPE
• MIXER - VCO1, VCO2, MULTI
• VCF - CUTOFF, RESONANCE, EG INT, DRIVE, LOW CUT, KEYTRACK
• AMP EG - ATTACK, DECAY, SUSTAIN, RELEASE
• EG - ATTACK, DECAY, SUSTAIN, RELEASE
• LFO - WAVE (SAW, TRIANGLE, SQUARE), MODE (FAST, SLOW, BPM), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)
Main Effect Parameters
• MOD EFFECTS - OFF/ON/SELECT (CHORUS, ENSEMBLE, PHASER, FLANGER, USER), SPEED, DEPTH
• DELAY/REVERB - OFF/DELAY/REVERB, TIME, DEPTH
• L.F. COMP - (prologue-16 only) OFF/ON, GAIN
• Noise Generator - 4 types
• VPM oscillator - 16 types
• User oscillator - 16 slots
• CHORUS - 8 types
• ENSEMBLE - 3 types
• PHASER - 8 types
• FLANGER - 8 types
• USER - 16 slots
• DELAY - 8 types
• REVERB - 8 types
• Wheels: Modulation wheel that can modify different parameters for each program, pitch wheel
• Knobs: PORTAMENTO knob, VOICE SPREAD knob (only on prologue-16)
• Main - Real-time OLED oscilloscope provides visual feedback of parameter changes
• MULTI ENGINE section - 7 segments x 6 digit LED display
• Headphone jack (Stereo phone jack)
• OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
• SYNC IN jack (3.5 mm [1/8"] mini jack, maximum input level 20 V)
• SYNC OUT jack (3.5 mm [1/8"] mini jack, output level 5 V)
• MIDI IN jack
• MIDI OUT jack
• USB B jack
• EXPRESSION jack
• DAMPER jack (half damper is not supported)
• AC Power Supply terminal
• prologue-16 - 38 W
• prologue-8 - 23 W
Dimensions (W x D x H)
• prologue-16 - 874 mm x 348 mm x 118 mm/34.41" x 13.70" x 4.65"
• prologue-8 - 709 mm x 348 mm x 118 mm/27.91" x 13.70" x 4.65"
• prologue-16 - 9.1 kg/20.06 lbs.
• prologue-8 - 7.5 kg/16.53 lbs.
• AC power cable
Accessories (sold separately)
• Soft Case SC-PROLOGUE soft case (For prologue-16/prologue-8)
• Sync Cable SQ-CABLE-6 Sync cable
• Damper Pedal DS-1H damper pedal
• Pedal Switch PS-1 pedal switch, PS-3 pedal switch
• Expression/Volume Pedal XVP-20 Volume/Expression pedal, XVP-10 Expression/Volume pedal
• Foot Controller EXP-2 foot controller
