Scan code: LN113238 Manufacturer code: PA4X-76

Korg - 'Pa4X' 76 Note Professional Arranger Keyboard

Korg - 'Pa4X' 76 Note Professional Arranger Keyboard, 128 Voices, 148 Effects, 128 Oscillators

Thumbnail 1 : Korg - 'Pa4X' 76 Note Professional Arranger Keyboard Thumbnail 2 : Korg - 'Pa4X' 76 Note Professional Arranger Keyboard Thumbnail 3 : Korg - 'Pa4X' 76 Note Professional Arranger Keyboard Thumbnail 4 : Korg - 'Pa4X' 76 Note Professional Arranger Keyboard
Scan code: LN113238 Manufacturer code: PA4X-76
£3,300.00Item currently awaiting an ETA
Pre order
From £68.75 / month (APR 0%) or 0% for 4 months
Monthly Payment: £275.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £3,300.00
Total inc. interest: £3,300.00
Monthly Payment: £137.50
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £3,300.00
Total inc. interest: £3,300.00
Monthly Payment: £91.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £3,300.00
Total inc. interest: £3,300.00
Monthly Payment: £68.75
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £3,300.00
Total inc. interest: £3,300.00
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £82.42 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

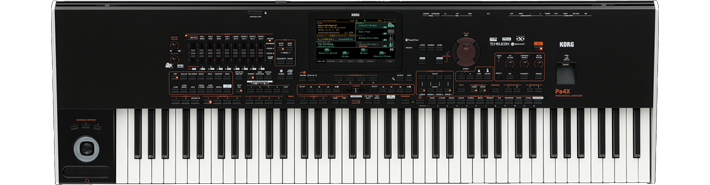

Korg - 'Pa4X' 76 Note
Professional Arranger Keyboard

korg pa4x 76

Deliver The Perfect PerformanceKORG has spent decades creating new technologies designed to excel every keyboard performance to the highest possible level, from the legendary Donca-matic to the world’s most popular workstations. KORG’s flagship Pa4X Professional Arranger is a continuation of this tradition with fantastic upgrades to every element of the sound quality with enhanced performance capabilities. The Pa4X Professional Arranger isn’t just a keyboard. It’s your backing band; your accompanist; and your musical director. It’s your soundman; your effects engineer; and your always in-tune background singers whilst you’re always in control.

Perfect for composing, recording, and combo use, the easy-to-use Pa4X certainly comes to life in the hands of the professional solo keyboard performer. The flawless operation and superior sound of one keyboard instrument more in the spotlight than ever. Every element of KORG’s industry-leading Professional Arranger series has been re-imagined and improved, resulting in the Pa4X, an instrument without equal. The all-new EDS-X (Enhanced Definition Synthesis – Expanded) sound engine delivers unmatched realism.

With highly detailed sounds, drawing on a huge PCM resource over 10 times larger than those found in previous models. KORG’s exclusive DNC (Defined Nuance Control) offers highly-articulate solo instruments. Partnerships with Waves Audio and TC Helicon provide state-of-the-art audio processing and vocal effects. Plus, there are a range of new instruments and drumkits, along with a massive infusion of Styles to cover a world of musical genres.

76 KeysKeyboard

128 VoicesPolyphony


Amazing Features • Easy-to-use panel layout and intuitive completely redesigned graphical interface
• Huge 7-inch capacitive TouchView™ display with tilting system
• Semi–weighted keys with velocity sensitivity and aftertouch
• Revised Digital Drawbar Organ sound engine
• Elegant, streamlined aluminum cabinet

Sound Quality At Its Best

Enhanced Definition Synthesis-eXpanded

Enhanced Definition Synthesis-eXpandedThe Pa4X ise dependant on KORG’s advanced EDS-X (Enhanced Definition Synthesis-eXpanded) sound engine, and comes complete with over 1,900 ready-to-play sounds. This realistic range offers a vast collection of classic and contemporary keyboards, band and orchestral instruments, along with electronic and acoustic instruments, from techno to folk. Included is a new multi-layer stereo grand piano (with damper and body resonance), and electric pianos from the well-known KORG SV-1 Stage Piano.

The digital drawbar organ features key on/off noises, leakage, and Rotary Speaker emulation. Along with this, the Pa4X has been equipped with new wind instruments, strings, basses, even acoustic and electric guitars. Sounds have been carefully captured using state-of-the-art methods that allow the smallest of details to be accurately reproduced.

Defined Nuance Control

Defined Nuance ControlThree assignable switches, the four-way joystick, even a ribbon strip, allow KORG’s unique DNC (Defined Nuance Control) to recreate the subtle nuances and articulations of acoustic instruments creating ultra-realistic performances rich in expression, all in real time and on demand. Bring new life to any solo or melody to with the power of a passionately-played saxophone; the changing embouchure of a trumpet; the breath textures found in a clarinet or harmonica; and the added characteristics that give extra authenticity to the pizzicato and arco sounds of a string section.

More than 110 authentic drumkits, including Ambient Drums, give life to any rhythmic passage; the Drum Family Easy Editing feature offers total control over volume, pitch, EQ, and more. An additional 1.5 GB (3.0 GB when compressed) of user memory allows new sounds to be added quickly and easily using KORG, WAV, AIFF, and SoundFont™ formats. Conduct your own sampling session and make the most of the complete sample recording and editing features found in the Pa4X.

Slim, Powerful & Easy To Use

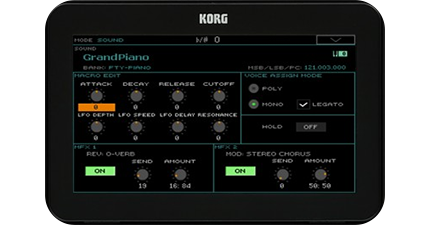

touch view

Naturally-ResponsiveBoth the Pa4X 76 and Pa4X 61 come with a naturally-responsive and semi-weighted keybed that provides both velocity and aftertouch sensitivity. The dynamic response is adjustable to work with any playing technique and any level of musicianship, from just a hobby to a demanding professional.

The main panel has been created to guarantee that all controls are ergonomically positioned and intuitively located to make every performance feel smooth and natural. Big, bright, and bold, the new capacitive TouchView display features a redesigned graphical interface that is easier than ever to read, even under the most unfortunate lighting environments.

Ultra-Fast Navigation

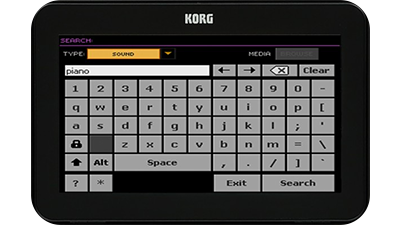

touch view

Optimum ViewingThe whole screen can be tilted forward and back to provide the perfect angle for optimum viewing, on or off stage. The multi-function Search feature can find what you are looking for quickly, if its that song, Style, or file that you were just using! Styles and Keyboard Sets can be read directly from a USB drive, without needing to load data in the internal memory.

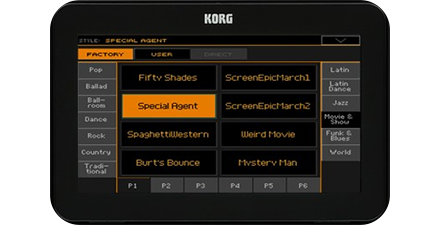

Do It With Style

korg pa4x 76

Forever Up-To-DateEach Style is a fully realized musical environment dedicated to reproducing a specific musical genre, and the Pa4X is full with over 580 of them. Play along with these styles which cover song styles from around the world, from the past modern day. These highly-versatile Styles have been designed by KORG’s international sound team to provide an extremely musical experience.

New Styles have been added, and many loved Styles have been brought up to date with new sounds, enhanced effects, and re-balanced mixing. Along with drums, percussion, and bass, each Style can offer up to five extra instrument parts that follow your chord changes and voicings, as well as the tempo. Guitar Mode 2 makes the Style’s guitar tracks more authentic than ever before possible.

In addition, each Style can be developed by using the four Pads. Each Pad can add a one-time or repeating riff, a percussion part, an accent sound, or even a sound effect. You can also program your own Pad riffs and phrases. Each Style features a variation of Intros, Variations, Breaks, Fill-Ins, Endings, even a count-in. You can also create your own brand-new Styles, or customize the existing ones.

The convenient Chord Sequencer function can quickly record and loop your chord progressions on the fly in Style Play mode; this can be useful for practice, but also for freeing up your left hand while performing live. These Chord Sequences can now be also saved as Style and SongBook entries for easy recall.

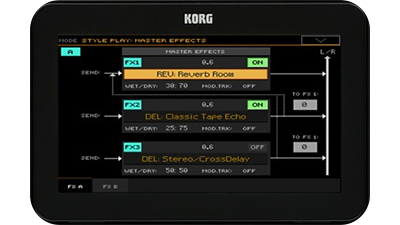

Studio Quality-Effects

studio-quality effects

The Best Sound... AnywhereKORG is known for studio-quality effects, and the Pa4X includes the best of the KORG library. 4 Insert and 3 Master effects can be used for the accompaniment tracks, while 1 Insert and 2 Master effects can be used for the real-time keyboard tracks.

Over 140 effect types are available, including reverbs, delays, vintage stomp box simulations, amp and cabinet simulators and more.

Each track features an EQ with Low, Mid and High controls, and a custom track EQ can be memorized in the Song Play mode, allowing your song to sound its best no matter what environment you're in. The final effects are the result of KORG’s long term cooperation with Waves Audio®, the world reference in studio mastering effects. The included Waves MAXX AUDIO™ suite gives you a louder and clearer, easily adjusting the sound to your musical taste or correcting a complex live scenario.

TC Helicon® Voice Processor

tc helicon voice processor

World-Leading TechnologyKORG’s long term hard work with the world leader in vocal harmonies, TC Helicon®, is continued in the Pa4X. The TC Helicon Voice Processor guarantees that your vocals have the highest sound quality possible .

Up to 4 realistic harmony voices are on-board, and can all be controlled using the keyboard or MIDI events. Available vocal effects include Double, µMod, Reverb, Delay, Filter, HardTune, Pitch Correction plus Compressor, EQ, Gate and more.

3 dedicated knobs and 3 buttons for controlling the most important Voice Processor settings have been added to the top panel and placed within easy reach. The Adaptive Mic Setting, another KORG exclusive, monitors the input signal and auto-adjusts parameters including the Adaptive Gate, EQ, Compression and the De-Esser to make the vocals sound smooth and “studio produced.” Just plug your microphone into the balanced XLR connection (phantom power available) and let the Pa4X do the rest!



Non-Stop EntertainmentKORG’s XDS Dual Player & Recorder comes with a crossfade slider for offering non-stop entertainment; load one as the other plays, then crossfade between them, or create a playlist for automatic playback. Two different MP3 or MIDI files can be played simultaneously. MIDI files and even MP3 files can be transposed, sped up or slowed down. There is also a Marker Function to allow direct jumps to a given position in the song, or to create loops between song sections.

The “MP3+G” (also known as MP3+Graphics) format and other common lyric formats are also supported. This feature allows MP3 files to play with lyrics and graphics that can be displayed on the built-in display or on an external monitor or both. The Vocal Remover eliminates the vocal track from MP3 songs almost instantly, which works great for live karaoke

The 16-track recorder allows complicated levels of sequencing and editing, and also offers quick and easy song creation using the Backing Sequence and Style functions. The Pa4X can record your whole performance; you can play back a song, play the keyboard, sing along, and everything will be recorded and saved as an MP3 file. You can then play that MP3 file again to add an extra keyboard track or voice using the well known “sound on sound” technique.

Using the note data saved in a MIDI file, the Pa4X can display traditional musical notation with notes and/or chords, together with lyrics and chord abbreviations. This complex Score Viewer can be seen on the internal TouchView™ screen, or displayed on an external video monitor. Chord names can also be seen in English or Italian.

The SongBook

the songbook

All The Help You NeedEspecially helpful for live use, the SongBook is a fully programmable and easily searchable Music Database. Each entry features all the settings required to play a particular song. The SongBook can save and access Styles, MIDI files, or MP3s and immediately bring up settings such as the song title, genre, artist, tempo, volumes, sounds, muted tracks, FX settings, easy-edit parameters, 4 keyboard sets, 4 pads, TC Helicon® presets, master transpose, and plenty more.

Everything needed to play your song back perfectly is in the SongBook. This massively useful performance feature is another KORG exclusive. A more refined Filter feature means you can search for entries using a combination of different criteria, such as all songs containing “love” in the title AND classified as a “ballad”. The SongBook includes also a renewed Set List function, with a handy panel-button association for fast recall, to make things easier during live gigs.

With the SongBook Editor you can view, create, and edit your KORG Pa-Series SongBook entries and Set Lists using a Windows based computer. It can also be synchronized with iOS and Android tablets to become your trusty external digital music sheet reader (third-party software required).

Korg PA4x - Power & Playability, Unparalleled Performance

The Tech Spec

Features Specification
Keyboard Pa4X 76: 76 keys (E1 – G7)
System Upgradable Operating System
Multitasking, load while play feature
Sound Generator EDS-X (Enhanced Definition Synthesis-eXpanded)
Filters with Resonance - Three band EQ for each track
Polyphony 128 Voices, 128 Oscillators
Effects Accompaniment/Song: 4 Insert Effects; 3 Master Effects (148 Types)
Keyboard Tracks: 1 Insert Effect; 2 Master Effects (148 Types)
Final Mastering Effects: Waves Audio Ltd. MAXX Suite (Includes MaxxEQ™, MaxxBass™, MaxxTreble™, MaxxStereo™, MaxxVolume™)
Voice Processor Technology by TC Helicon® Four-part Harmonizer, Double, µMod, Reverb, Delay, Filter, HardTune, Pitch Correction; plus Compressor, EQ, Gate (Adaptive Mic Setting on the Mic input)
Sounds / Drumkits Factory: More than 1,900 Factory Sounds including two multilayer Stereo Piano with damper/body resonance, GM/XG sound sets and more than 110 Drumkits * including Ambient Drums
User Area: 768 Sounds, 384 Drumkits
Digital Drawbars: 9 Footages, Percussion, Key On/Off, Leakage (Effect section includes rotary speaker)
Defined Nuance Control (DNC) Technology
Natural Ambience Drums Sound
Full Sounds/Drumkits editing
Sampling User PCM RAM Memory: 1.5 GB compressed (equivalent to 3 GB linear data)
Load KORG, Wav, AIFF and SoundFont™ formats
Save KORG, Wav and AIFF formats
Full Edit, Time Slice, Sampling feature
Styles Factory: More than 580 Factory Styles, freely reconfigurable sets
User: 1,248 locations, including User, Favorite and Direct banks
Eight Accompaniment tracks, 4 Keyboard Sets, 4 Pads per Style; Style Settings (Sounds and Arranger parameters) on each Style
Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table)
Style Record with Step Record, Track and Event Edit
MIDI Song to Style Converter
Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to KBD Set Mode
Chord Sequencer Chord Sequence recorder in Style Play mode
Chord Sequences can be saved to Style and SongBook En-tries
Edit functions: delete, copy from Style/SongBook, import/export from/to SMF
Keyboard Set Library Memorize keyboard Sounds settings
Factory: More than 500 Factory Keyboard Sets, freely recon-figurable
User: 1,056 locations, including User and Direct banks
“My Setting” special Keyboard Set
KAOSS FX Automatic MIDI FX generator
More than 65 Factory Presets
Song Play Patented XDS Crossfade Dual Sequencer Player with X-Fader Balance control
Supported formats: MID, KAR, MP3 + lyrics, MP3+G
2 Players with separate Select, Start/Stop, Home, Rewind and Fast Forward controls
Lyrics, Score, and Chord data can be displayed on screen, or on external video monitor
Markers with Add, Delete, Edit and Loop functions
Jukebox function
MP3 Player / Recorder Double MP3 Player and MP3 Recorder, Transpose (+6/-5 semitones), Tempo change (±30%), Vocal Remover, Records MP3 files including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone, Effects, and KAOSS Effects
Sequencer Quick Record (Backing Sequence), Multitrack and Step Record functions - Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF (MID) native format
SongBook Fully programmable music database based on Styles, MIDI Songs (MID and KAR files), MP3 Songs with automatic selection of Style Play and Song Play modes
User definable Set Lists, with Entries selectable from the control panel
Filtering and sorting options
Compatibility "i-Series" models: Styles
Pa-Series models: Styles, Performances, Programs/Sounds, Songs, SongBook Entries, Pads
Pads Four Assignable Pads + Stop Buttons
Pad Record function
General Controls Master Volume; Fade In/Out; Keyboard-Acc/Song Balance Volume; Ensemble; Octave Transpose; Master Transpose; Quarter Tone and Arabic Scale memorized inside Keyboard Sets; Joystick (pitch + modulation); Ribbon; Mic Volume; Harmony/Double; Delay/Reverb; Mic Preset; Mic On/Off; Harmony On/Off; Double On/Off; 8 Assignable Sliders; Slider Mode; MP3 Volume; 3 Assignable Switches; Tempo +/-; Tempo Lock; Metronome On/Off; Dial; Up/+; Down/-; Search; Shift; Chord Scan (Lower, Upper); Split; Keyboard Tracks Sound Select and On/Off; Record
Control Inputs Damper pedal (support half-pedaling with optional DS-1H pedal)
Assignable pedal/switch
EC5 multiswitch pedal
Mic/Line Inputs Mic: Combo XLR balanced with Gain control and Phantom Power
Line 1: Left/Right Jack (1/4") Line Input, balanced
Line 2: Stereo Mini-jack (1/8") Line Input, unbalanced
Outputs Audio Output: Left/Right, Out 1, Out 2; (1/4" Jack) balanced
Headphone Output x 1 ( 1/4" Jack)
Video Out (RCA connector)
MIDI IN, OUT, THRU standard MIDI connectors
USB to MIDI using the USB Device port
16 User-definable MIDI Presets
USB Type A (HOST, for memory and controllers) x 2 (front/rear)
Type B (DEVICE, for personal computers and tablets) x 1 (rear)
2.0 Hi-Speed connections
Storage Pa4X 76: Standard
Micro SD card: (Card not included) - Rear panel slot with plastic cover
USB Flash Drive: (Drive not included) - 1 Front panel port - 1 Rear panel port
Display 7” Wide capacitive color TouchView™ TFT display
Clock Internal System Clock
AC - Power Consumption 100-240 Volts, 50/60 Hz
0.5 Watt in standby / 16 Watt normal / 38 Watt with PaAS installed
Dimensions (W x D x H) 1,192 x 364.4 x 125.56 mm / 46.93" x 14.35" x 4.94"
Weight 16.3 kg/35.93 lbs
Accessories AC Power Cable, Music Stand
Number Of Keys
Connections None
Weighted Keys
Included Software
USB Bus Powered No
Product Weight
Key Size
Transport Controls No
Additional Information
Scan Code LN113238
Model Number PA4X-76
GTIN 04959112141315
