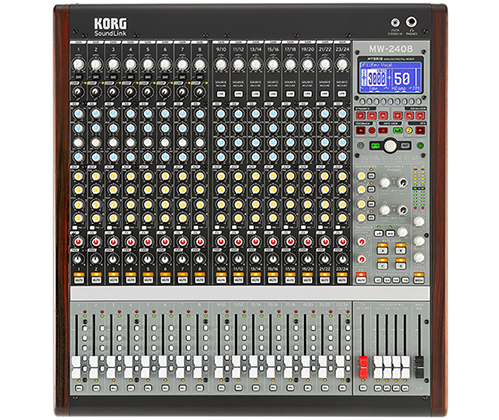

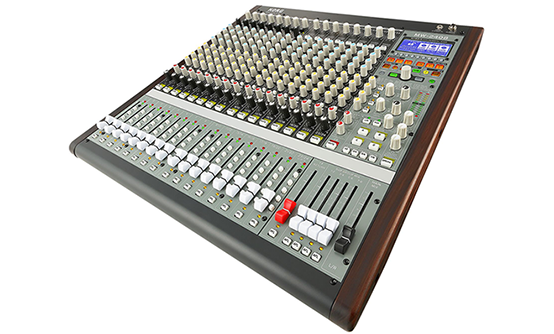

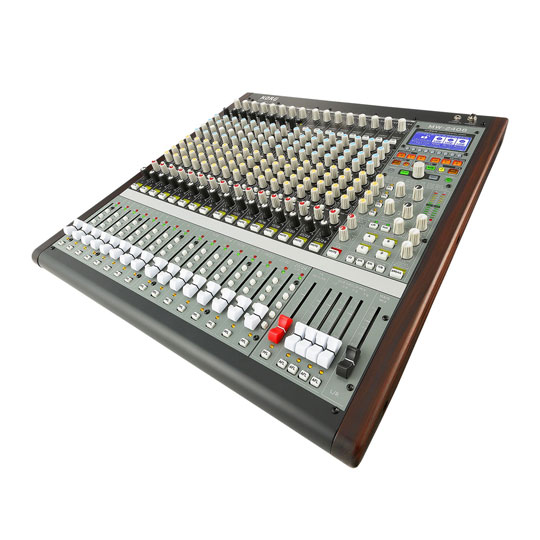

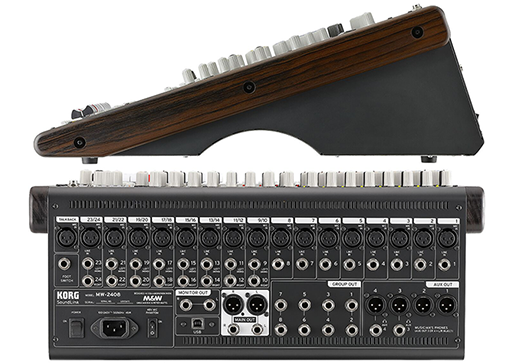

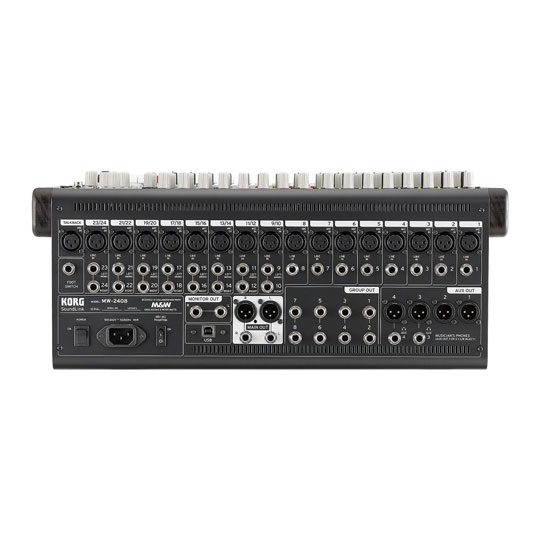

Korg MW 2408 Mixing Desk
Korg MW 2408 Mixing Desk - 24 channel, analogue digital hybrid mixing console
- SCANPROTECT Protect against installation damage for 28 days. More info
Korg - Soundlink MW 2408
hybrid digital/analog 24 channel mixing desk Korg has teamed up with the legendary mixer design team duo of Greg Mackie and Peter Watts to engineer hybrid/mini-consoles that deliver a creative mixing experience, in an easy and simple to use manner.
Available in both 24, and 16 channel models, these new mixers give instant control over those inevitable emergencies that can occur when mixing in a live scenario. With stunning sound quality, musician friendly features, the MW1608 represents a wonderful harmony between the analogue and digital realms.
Designed in Conjunction with Mixer Guru's Greg Mackie & Peter Watts
When using a SoundLink, you’ll soon discover all the typical Greg Mackie features and nuances that will make you ask the question, ‘Why don’t other mixers have this?’.
Upon hearing your first live mix, you’ll soon discover why Peter Watts helped to design classic Trident consoles and then countless high-end studio processor and preamps. Between both of these legendary visionaries, there’s over 40 years of experience in designing mixers, in that time, they’ve picked up a lot of ideas and knowledge, many of which have been incorporated into the SoundLink desks.
Featuring HiVolt Preamps
OFFERING VAST HEADROOM
The SoundLink series of desks feature HiVolt mic preamps which genuinely deliver on the generic ‘Low noise, high headroom’ claim. If you’ve ever listened to the ‘White Album’, Rhianna’s ‘Rated R’, Elton John’s classic ‘Goodbye Yellow Brick Road’, amongst 100’s of other classic albums, you’re enjoying the sound of the legendary Trident mixing console.
Peter Watts played an integral role in designing Trident technology, and he has brought the same rich, warm preamp, EQ and dynamics qualities to the products designed today. HiVolt preamps deliver the most headroom of any comparable product on the market today, digital or analogue.
Musician Friendly Features
intuitive functionalities
It’s clear that the SoundLink desks have been designed in conjunction with practical musicians. It’s the only small mixer available on today’s market that features ‘Mute Groups’.
This function allows you to instantly call up different combinations of channels for a variety of groups on stage, different songs, sound checks, an acoustic number, or drum solos.
There are 4 group options, each of these is programmable in great details and easily recallable.
Not just Effects...KORG Effects
BEST IN CLASS EFFECTS
Rather than using a generic, run-of-the-mill digital FX processor chip, SoundLink mixers utilise a professional-grade proprietary Korg custom chip that takes knowledge and expertise from Korg’s decades of experience.
The SoundLink’s onboard FX are truly a cut-above the generic FX usually found on mixers, for example, all 6 reverbs include an alternate ‘WARM’ version, an asset that veteran KORG fans will tell you is extremely useful. Parameters of every effect can be tweaked, saved and recalled upon, and activated by an optional footswitch available separately.
Furthermore, you get test tone generators for use with the built-in 24-bandSpectrum Analyzer that’s another SoundLink exclusive in a mixer in this price range.
Premium Music Software Included
Premium iZotope software included
The SoundLink MW 2408 & 1608 ships with the powerful RX elements software by iZotope. This powerful, professional software suite has several tools that will enable you to clean, repair, or even rebalance the entire mix of any recording, which makes this software the ideal companion for the SoundLink range of mixers.
To download: Please go to the KORG Bundle Software website and insert the code included in the SoundLink Mixers. This way you will be able to get a specific download code for“iZotopeRX 7Elements”. Once you have that download code, go to iZotope’s website and use the code to download the software.
The Tech Spec
| Features | Specification | Analogue |
|---|---|
| Input Type | Balanced Female XLR and 1/4" TRS |
| HiVolt Mic Preamp | -128dBu E.I.N, -10 to-60 dBU nominal input level; 3KΩ input impedance |
| Frequency Response to Main Output (at unity gain) | +0.5 to - 1.5 dBu 20Hz to 20kHz |
| THD to Main Output ( 20 - 20 kHz, unity gain, unwtd ): | 0.004% |
| S / N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A - wtd) | -70 dBu |
| System Crosstalk (Ref = +4 dBu, 20 Hz - 20 kHz, unwtd ) | Input to Output , - 70 dBu ; Adjac ent Channels , - 90 dBu |
| Gain Control Range (± 1 dB) | +10dB to +60dB (Mic), - 10 to +40dB (Line) |
| Main Outputs | Balanced male XLR and ¼” TRS |
| Maximum Output Level | +26 dBu |
| Output Impedance | 75 Ω |
| Headphone Output | 100 mW / ch. @ 32 Ω load , 20 Hz - 20 kHz ( +0.5dB, - 1.5dB)7 |
| Signal Processing | |
| Mono Channels | HI (12k, shelving), MID (peak, sweepable from 250hz to 5k) and LO (100 Hz, shelving) , ±15dB boost/cut |
| Stereo Channels | HI (12k shelving), HI MID (2.5k shelving), LO MID (250 hz shelving) and LO (100Hz shelving) |
| High Pass Filter | 12dB / octave at 80Hz |
| Digital Multi - band EQ: | 31 - bands with nine frequencies selectable at any one time, Wide 1 - octave interval and Narrow ½ - octave m odes |
| Digital Compresso | Hard – 1ms to 40 ms Attack, +1 1dB to 0dB Threshold; Soft – 1 m s to 40 m s Attack, +11 to - 5dB Threshold |
| Digital | |
| Main L/R Bus ADC Dynamic Range | 115d B (A - wtd) |
| Aux and FX Buses ADC Dynamic Range | 111d B (A - wtd) |
| DAC Dynamic Range for all Out buses | 115d B (A - wtd) |
| Internal Processing: | 32-bit for internal processing |
| Digital Effects | Rev Hall, Rev Hall Warm, Room, Warm Room, Rev Vocal, Rev Vocal Warm, Stage, Stage Warm, Plate Reverb , Plate Reverb Warm, Spring Reverb Warm, Analog Delay, Tape Echo, Variable Delay, Delay of the Korg SDD3000, Chorus, Flanger, Exciter, Sub Bass booster, 1 kHZ Test Tone, Slow Sweep, Fast Sweep, White or Pink Noise |
