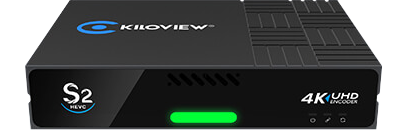

Kiloview S2 4K H265 HDMI2.0 Video Encoder
Kiloview S2 Video Encoder, 4Kp30 Encode, HDMI 2.0, H.265, NDI HX/RTMP/SRT, USB, RJ45 PoE
- SCANPROTECT Protect against installation damage for 28 days. More info
Kiloview - 'S2 H.265 4K Video Encoder'
4Kp30 EncoderS2 is an UHD 4K Video encoder designed to meet the needs of all 4K video transmission applications. With input resolutions up to 4Kp60 and encoding resolutions up to 4Kp30. H.265 (HEVC)/H.264 high-performance encoding support and most protocols including NDI|HX/SRT/RTMP/RTMPS/HLS/UDP/RTSP/Onvif.
With H.265 HEVC encoding, S2 offers a lower encoding bitrate and with a reduction of more than 50% bandwidth comparing with H.264. （Typical encoding bitrate: H.265: 4KP30@4Mbps，H.264: 4KP30@8Mbps）

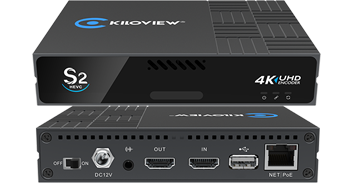

HDMI 2.0 Input
4K Transmission Ensures Better Image QualityWith HDMI 2.0 input, the S2 supports 4Kp60 and encodes up to 4Kp30, and is compatible with SD/HD/VESA.

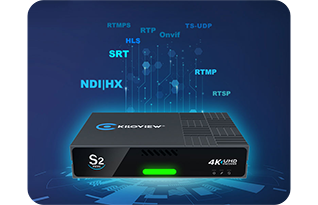

NDI|HX Support
SRT/NDI/NDI|HX SupportS2 supports RTSP/RTMP/RTMPS/HLS/TS-UDP/Onvif1.1/2.0/ and NDI|HX, so users can live stream with RTMP/RTMPS, produce live content with NDI|HX and manage remote productions with SRT, at the same time with one device.
Dual Audio Input
Audio & IntercomWith both embedded and 3.5mm analog line in audio supported. Together with Kiloview intercom software, S2 can support intercom functions for better communication (supported in software version 2.0+)

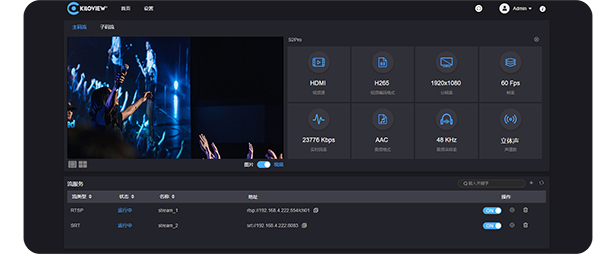

Redesigned Web UI
Real-time monitoring and preview of the videoThe newly-designed Web UI works perfect to preview the video source in real-time, allowing you to monitor the video status at any time.
Simultaneously Stream to 16 Platforms
Stream to 16 platforms simultaneouslyDual stream output (main stream and sub stream) - each stream can be sent to 8 platforms with the same or different protocols, altogether S2 can simultaneously live stream to 16 streaming platforms. Main stream resolution up to 4KP30Hz, sub stream resolution up to 1080P60.
Record to USB
It's a RecorderS2 features USB out capacity for local or NAS recording, storage and playback for video while streaming.

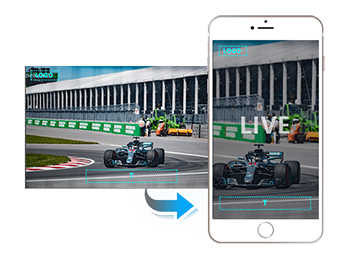

Add Overlays
Image and text overlay, wherever you likeYou can overlay LOGO/text/pictures to any position of the screen. At the same time, professional operations such as rotation/cropping, mirroring, and color adjustment are also available. (Supported in software version 2.0+).
Dual Power Options
Powered by PoE and DC 12 VS2 can be powered by PoE and DC 12 V. One ethernet cable can supply power and transmit signals at a time.

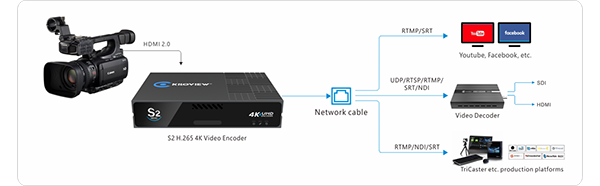

Multiple Applications
S2 ApplicationsThe S2 can be used in broadcast television, ProAV, live streaming and other video IP transmission applications, interactive connections, video network recordings, and integrated media projects.
The Tech Spec
| Features | Specification | Video interface | 1 x HDMI 2.0 Input |
|---|---|
| Analog audio interface | 1 x 3.5mm |
| USB interface | USB interface |
| Transmission type | Ethernet |
| Video loop | 1 x HDMI 2.0 loop |
| Input Video resolution | Up to 4KP60Hz |
| Video encoding algorithm | H.265/HEVC/ H.264/AVC, Motion-JPEG, up to 4KP30 |
| Audio encoding algorithm | AAC/G.711 |
| Encoding latency | 2 frames |
| Media protocols | SRT/RTMP/ RTMPS/HLS/TS over UDP/RTP/RTSP /Onvif/, NDI|HX/SIP |
| Tally | Supported |
| Tally | Supported |
| PTZ | Supported |
| Image / Text overlay | Custom defined text and picture overlay supported, which can be set to any position on the screen |
| Video storage | USB extended storage, with NAS storage available |
| Management | APP/ Web/IMS |
| Power Supply | DC 12V 1A |
| Power Consumption | 9 W |
| Working temperature | -20℃~45℃ |
| Size | 140*100*28mm |
| Weight | 300g |
