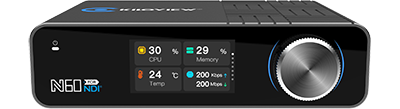

Kiloview N60 HDMI 2.0 to NDI Converter
Kiloview N60 HDMI/USB to NDI Bidirectional Converter, 2x HDMI 2.0, 2x RJ45, PoE, 4Kp60, NDI/NDI HX, USB 3.0 Type-A/C
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info
Kiloview - 'N60 Bi-Directionial NDI Converter'
Cover all your needsN60 4K NDI Bi-directional Converter is Kiloview‘s latest NDI converter, which can handle both NDI and NDI|HX, encoding and decoding. It supports resolution up to 4K UHD HDMI, YCbCr 4:2:2 10bit and AVC (H.264/HEVC(H.265), delivering high-quality images with ultra-low latency less than 80ms. N60 has a built-in LCD panel and a scroll-button for better interaction. With the panel you can quickly monitor and configure your device, such as IP configuration, recording status, etc. Besides, it can also work as a big Tally.
What’s more important, N60 supports USB 3.0 input from USB Web Camera or PC, which easily bring NDI technology to your video conferencing and image processing.
With other updated features such as PoE and dual ethernet ports, USB 3.0 with USB Camera in/out support, TF storage, PTZ control, 3.5mm analog audio and voice intercom, N60 is your ideal choice to get access to the fabulous NDI/NDI|HX world with the most versatile options and convenient operations.
Key Features
• Built-in LCD panel + Scroll Wheel
• USB 3.0 for Web Cam Input
• Cold-shoe and V-mount
• Ultra low latency transmission
• Local storage with TF card
• PTZ control via USB
The Tech Spec
| Features | Specification | Video Input | 1x 4Kp60 HDMI 2.0 |
|---|---|
| Video Output | 1x 4Kp60 HDMI 2.0 (Loop or decoding input) |
| Audio Port | 1x 3.5mm Line in 1x 3.5mm Line out |
| Network | 2x RJ45 1000Mbps Ethernet port Ethernet 1 with PoE (IEEE 802.3AT, 24W Max) |
| Video resolution | Input: up to [email protected] (4Kp60), lowest 720p50 Output (decoding or loop out): up to [email protected] (4Kp60), lowest 720p50) |
| NDI Codec Capacity | 1x NDI® FB/HX encoding or 1x NDI® FB/HX decoding |
| NDI®CODEC feature | NDI®CODEC feature SpeedHQ (NDI CODEC): SHQ0, SHQ2 ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264 ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265 AVC (H.264): Baseline, Main, High, High10, High 4:2:2 up to 5.2 level HEVC (H.265): Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier |
| Audio encoding and decoding | NDI Audio; AAC-LC, Opus, G.711 a-Law/u-Law; others software expansion |
| USB | 1x USB3.0 (type A) 1x USB3.0 (type C) |
| User Interface | 1.96〞LCD screen, Kiloview Magic Rotor |
| TF Storage | Support TF card for recording, capacity up to 2TB |
| Tally | Built-in OLED panel available as front/rear Tally |
| Power DC 12V （5.5/2.5）or PoE | DC 12V （5.5/2.5）or PoE |
For full Kiloview Specifications please visit Kiloviews site here
