Kiloview N4 HD HDMI/ NDI Bi-Directional video encoder
Kiloview N4 HD HDMI/ NDI Bi-Directional video encoder
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info

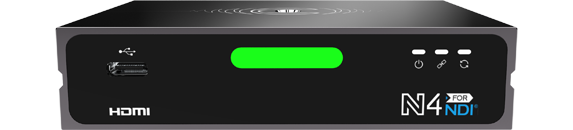

Kiloview - 'N4 for NDI® 1080p60 HDMI-NDI Bi-Directional Converter'
1080P60 HDMI 2.0 NDI Encoder/DecoderKiloview N4 for NDI® supports up to HD 1080P60 video input (Encoder) or 1080P60 video output (Decoder). This converter is small and compact enough to put in your pocket with the overall size of 100*80*24mm. It features an HDMI2.0 input and HDMI2.0 loop through for view on the monitor while NDI® streaming, or HDMI 2.0 output while decoding. A tally system with a big tally light is built-in for indicating which camera is in program or preview. It also has the 3.5mm audio input/output which supports intercom (a Kiloview software required).
Kiloview N4 for NDI® has a wide DC input range from 5V to 18V, so it can be easily powered by USB, power bank or camera battery, it can also be powered over Ethernet (PoE). A threaded screw camera mount is provided for your mounting on a camera. PTZ interface by USB adapter is supported.
The N4 for NDI® is also compatible with Kiloview IMS software to help with the device management, NDI® source management, remote configuration and upgrading, etc..
The Tech Spec
| Features | Specification | Model | N4 |
|---|---|
| Video Input | 1x HDMI |
| Video Loopout | 1x HDMI |
| Analog Audio | 1x 3.5mm Headphone(Out)/Micro phone (Input) |
| Network | 1x RJ45 (PoE), 100/1000Mbps Ethernet |
| Video Formats | Up to HD 1080P60 (Downward compatible with SD/HD/VESA and custom resolution) |
| NDI ® encoding and decoding | 1×NDI® encoding or 1x NDI® decoding |
| NDI ® CODEC features | YCbCr 4:2:2 video encoding, typical bit rates: 250Mbps @ 4Kp60, 125Mbps @ 1080P60 |
| LED Indicators | Tally, power indicator, connection status indicator |
| Power Supply Modes | Options for POE, DC 5-18V |
| Intercom | Support (equipped with Kiloview software) |
| PTZ Control | Support |
| DHCP | Support |
| Management | Web Page/IMS remote management |
| Operating temperature | -20℃ to 70℃ |
| Dimension | 100 x 80 x 28mm |
| Power Consumption | 6W |
