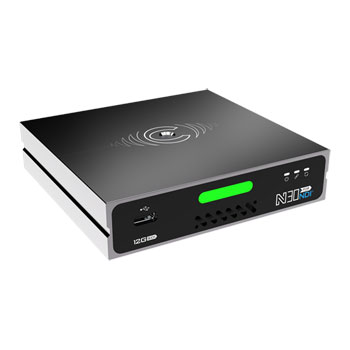

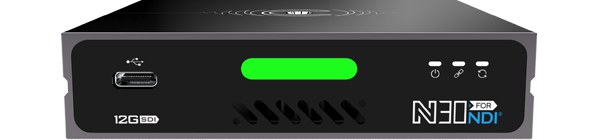

Kiloview N30 12G-SDI/NDI Bi-Directional Converter
Kiloview N30 Bi-Directional Converter, 2x 12G-SDI, UHD Encode/Decode, RJ45 PoE, Full NDI
- SCANPROTECT Protect against installation damage for 28 days. More info
Kiloview - 'N30 12G-SDI/NDI® Bi-directional Converter'
12G-SDI/Full NDI® Encoder/DecoderKiloview N30 for NDI® supports up to 12G-SDI video input (Encoder) or 12G-SDI video output (Decoder). It is small and compact enough to put in your pocket with the overall size of 100x80x28m. It features a 12G-SDI input and 12G-SDI loop for monitoring while NDI® streaming, or 12G-SDI output while decoding. A tally system with a big tally light is built-in for indication which camera is in program or preview. It also has a 3.5mm audio input/output.
Kiloview N30 for 12G-SDI has a wide DC input range from 5V to 18V, so it can easily be powered via USB, power bank or camera battery, it can also be powered over Ethernet (PoE).
A threaded screw camera mount is provided for your mounting on a camera. PTZ control is available by USB to Serial Adapter.
The Tech Spec
| Features | Specification | Model | N30 for NDI® |
|---|---|
| Video Input | 12G-SDI |
| Video Loopout | 12G-SDI |
| Analog Audio | 1x 3.5mm |
| Network | 1x RJ45 (PoE) |
| Video Formats | Up to UHD 12G-SDI (Downward compatible with SD/HD/VESA and custom resolution) |
| NDI ® encoding and decoding | 1×NDI® encoding or 1x NDI® decoding |
| NDI ® CODEC features | YCbCr 4: 2: 2 video encoding, typical bit rates: 250Mbps @ 4Kp60, 125Mbps @ 12G-SDI |
| LED Indicators | Tally, power indicator, connection status indicator |
| Power Supply Modes | POE supported, DC 5-18v |
| Intercom | Support (equipped with Kiloview software) |
| PTZ Control | Support |
| DHCP | Support |
| Management | Web Page/IMS remote management |
| Operating temperature | -20℃ to 70℃ |
| Dimension | 100 x 80 x 28mm |
| Power Consumption | 6W |
