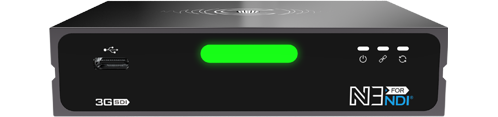

Kiloview N3 3G-SDI/NDI Bi-Directional Converter
Kiloview N3 Bi-Directional Converter, 2x 3G-SDI, 1080P60 Encode/Decode, RJ45 PoE, Full NDI
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info
Kiloview - 'N3 3G-SDI/NDI® Bi-directional Converter'
3G-SDI/Full NDI® Encoder/DecoderKiloview N3 for NDI® supports up to 1080P60 video input (Encoder) or 1080P60 video output (Decoder). It is small and compact enough to put in your pocket with the overall size of 100 x 80 x 24mm. It features a 3G-SDI input and 3G-SDI loop for monitoring while NDI streaming, or 3G-SDI output while decoding. A tally system with a big tally light is built-in for indicating which camera is in program or preview. It also has a 3.5mm audio input/output.
Kiloview N3 for 3G-SDI has a wide DC input range from 5V to 18V, so it can be easily powered via USB, power bank or camera battery. It can also be powered over Ethernet (PoE).
A threaded screw camera mount is provided for your mounting on a camera. PTZ control is available by USB to Serial adapter.
Amazing Features
• 1x RJ45 + PoE
• Intercom Supported
• Threaded Camera Mount
• PTZ Control Via USB
• Tally Light
• Compact Design
The Tech Spec
| Features | Specification | Model | N3 for NDI® |
|---|---|
| Video Input | 3G-SDI |
| Video Loopout | 3G-SDI |
| Analog Audio | 1x 3.5mm |
| Network | 1x RJ45 (PoE) |
| Video Formats | Up to UHD 1080p60 (Downward compatible with SD/HD/VESA and custom resolution) |
| NDI ® encoding and decoding | 1×NDI® encoding or 1x NDI® decoding |
| Protocol | Full NDI® |
| LED Indicators | Tally, power indicator, connection status indicator |
| Power Supply Modes | POE supported, DC 5-18v |
| Intercom | Support (equipped with Kiloview software) |
| PTZ Control | Support |
| DHCP | Support |
| Management | Web Page/IMS remote management |
| Operating temperature | -20℃ to 70℃ |
| Dimension | 100 x 80 x 28mm |
| Power Consumption | 6W |
