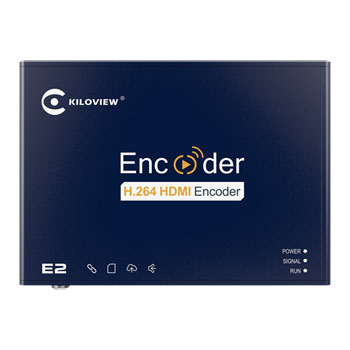

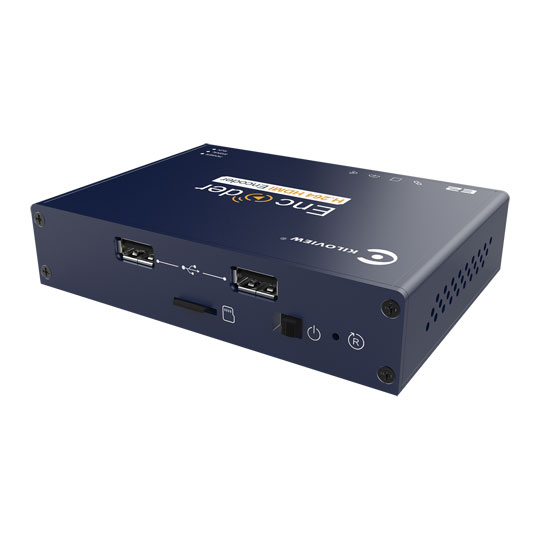

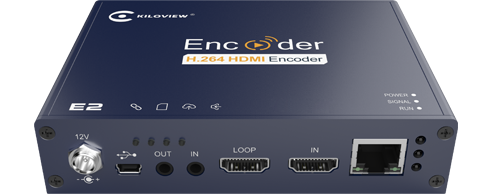

Kiloview E2-NDI HDMI to NDI Wired Video Encoder
Kiloview E2-NDI Video Encoder, H.264, HDMI to NDI, 1080p60, MicroSD, USB 2.0
Email me when the availability or price changes
Finance this product
- With a 10% deposit from just £12.09 / month (APR 19.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Kiloview - 'E2 H.264 1080P HDMI to NDI Wired Video Encoder'
Professional Video DecodingKiloview E2 NDI video Encoder can fastly and easily deliver H.264 encoding HDMI video streams of independent IP output to various servers for IPTV application, such as Wowza Media Server, Windows Media Server , Social media platform, and some other servers. Kiloview is a global partner of NewTek, this E2 encoder support NDI|HX technology, which is widely applied in video production, hotel TV system, school teaching.
Amazing Features
• H.264 Video Encoding
• Full Live platforms supported
• Low latency( ≤ 67)
• NDI|HX supported
• HDMI loop monitoring
• 7x24h working mode
• Low bitrate but quality image transmission
• Low power consumption (< 4w)
• SRT supported

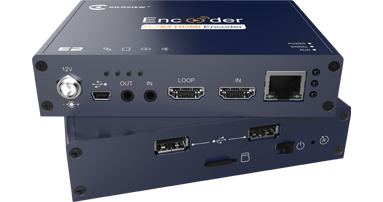

Full HD NDI|HX Support
NDI® Output, NDI® Virtual InputDeliver any digital video source to the network in full HD, with high-efficiency NDI® output via NDI|HX and native support for resolutions up to 1080p. Designate E2 as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and more using the free NDI® Virtual Input* tool. (* NDI Virtual Input included with the free NewTek NDI Tools download.)
Full Live Broadcast Platform Support
SRT SupportedSRT supported to ensure secure and reliable transmission.
Web-Based InterfaceMonitor video, manage login credentials, access recording controls, and configure audio, video, and network settings from any supported Web browser on any compatible networked device.

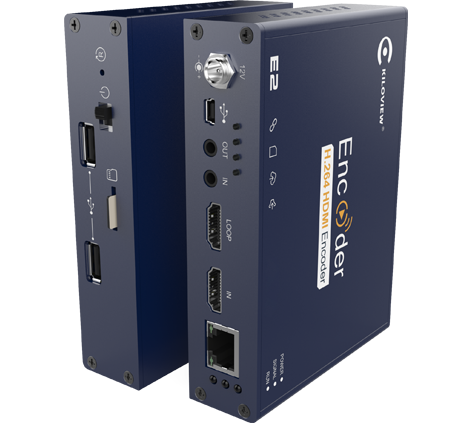

Network VisibilityAccess devices connected to other networks via IP address and make them visible within your production environment using NDI Access Manager.
High bandwidth adaptabilityAchieve low bit rate encoding and ensure high definition image quality, 1Mbps@720p, 1.5Mbps@1080p can get high quality video; Kiloview advanced video buffer technology and forward error correction technology ensure video encoding delay ≤ 67ms and no stuck; It supports up to 1080p60Hz video format, the resolution of output format can be customized.
Support full live broadcast platformsSupport RTMP/HLS/SRT/TS streaming media protocols for live broadcast on Facebook, YouTube, Ustream, Twitch, Wowza etc; With built-in KILOVIEW ® SUNSHINE streaming media server engine, 20 to 50 concurrent access simultaneously is supported; Support Onvif 1.1/2.0 easy access to security protection system /NVR system. Dual streams output supported and can be pushed to different live broadcasting platforms simultaneously, main stream encoding up to 1080p60Hz, sub stream encoding support 540p 60Hz.

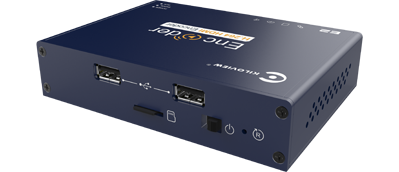

Strong flexibility to
support secondary developmentOpen API programming, SDK provided for second development;.Customization service is available based on client’s needs.
The Tech Spec
| Features | Specification | Model | E2 (NDI) |
|---|---|
| NDI|HX | Supported |
| Video Input | 1*BNC HDMI |
| Video Loopout | 1*BNC HDMI |
| Analog Audio Input/Output | 1*3.5mm |
| USB Interface | 2*USB 2.0 Type-A；1*USB 2.0 Mini-USB |
| Micro SD | 1*Micro SD/TF Card storage interface |
| Video Resolution | Up to 1080P60Hz: 1080p23.98/24/25/29.97/30Hz 1080p50/59.94/60Hz 1080i50/59.94/60Hz 720p23.98/24/25/29.97/30Hz 720p50/59.94/60Hz, 576i, 480i 720*480(NTSC)，720*576(PAL) |
| Network Support | Ethernet |
| Video Encoding | H.264/AVC High profile( Up to level 5.1)，compatible with Main profile and Baseline |
| Audio Encoding | AAC/G.711 |
| Encoding Latency | ≤67ms |
| Streaming Protocols | RTMP/HLS/SRT/TS over UDP |
| Management | App/ Web |
| Power | DC 12V 1A |
| Operating temperature | -20℃ to 60℃ |
| Dimension | 4.9 x 3.5 x 1.125"/125 x 89 x 28mm |
| Weight | 380g(13.4oz) |
