Kiloview D300 4K UHD H265 NDI HX video decoder
Kiloview D300 4K NDI HX Video Decoder, H.264/H.265, 2x RJ45 In to SDI/HDMI Out, 4K60, 9 Channel Decoding
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info
Kiloview - 'D300 4K UHD NDI®| HX (2.0) Video Decoder'

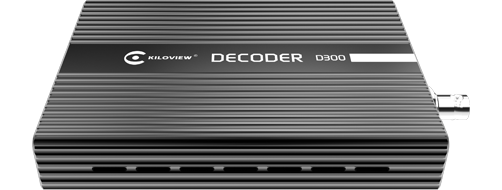

Professional Hardware DecodingThe D300-4K UHD NDI®|HX(2.0) Video decoder is a professional hardware decoding device that can decode multiple video streams without relying on a computer It outputs SDI signal and HDMI signal video, supports 4K UHD resolution, and supports multi-channels video stream split screen to the display wall and dynamic switching.
4K H.264/H.265 Decoding with NDI Support

Superior Decoding PerformanceSupport up to 4K, H.264/H.265, D300 decoder is remarkable in the globe embracing any IP-based stream decoding with 9 channels of video simultaneous decoding. Note: 9 channels with 1080P30, or 8 channels of 1080P60, or 4 channels of 4KP30.

Broadest Protocols Supported:
Network FriendlySupport NDI®| HX (2.0) protocol which greatly saves your network bandwidth and SRT protocol which makes your video transmission more secure, fast and reliable.
Support RTMP/HLS/TS over UDP/RTSP and more protocols for decoding.
Dual Interface Output

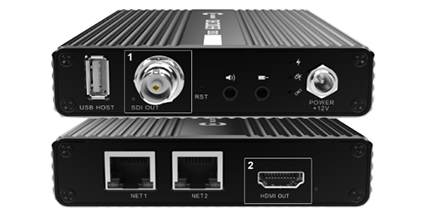

Dual Interface Output, Born for AV StudioSDI and HDMI dual interface for outputting, this box is friendly for all studio's neat setting up. Note:HDMI output up to [email protected], SDI up to [email protected] output with resolution adjustable.

Different Output, All in One UnitSDI and HDMI output content can be either the same or not. None of a source stream and neither interface should be failed.

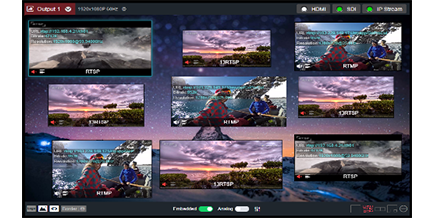

9 Channel Split Display

One-stop Device in VideoTransmissionFlexibility with customized split display of 9 channels of real-time decoded videos on screen wall. Pure and largest control over adjustment for displaying screen size and position as you wish. Easy go with graphic and logo overlay.

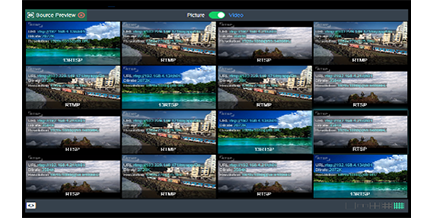

Software Bonus:Video Previewing FunctionWith updated feature, you could even preview 16 channels of real-time decoded video streams on its web page, from which you can choose 9 channels for outputting on displaying screen.
The Tech Spec
Features | Specification | Model | D300 |
---|---|
Input | 2*100M/1000M RJ-45 adaptive Ethernet port |
Video Output | 1*SD/HD/3G-SDI, support up to 1080p 60Hz; 1*HDMI 2.0, support up to [email protected] |
Output Format | SDI: up to 1080P60Hz; HDMI: up to 4K. Details as below: SDI: 1080p60/59.94/50, 1080P30/29.97/25/24/23.98, 1080I60/59.94/50, 720P60/59.94/50. 570I/50, 480I/60 HDMI: 4K [email protected]/30, 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50 Compatible with VESA |
Audio Output | SDI/HDMI embbedded, 3.5mm analog line-out output |
Media Protocol | NDI®|HX2.0/SRT/RTMP/HLS/TS over UDP/RTSP |
SDI Transmission Distance | Belden 1694A cable standard:SD SDI ≥ 350m;HD SDI ≥ 180m;3D SDI ≥ 100m |
Video Decoding | H.265 /H.264 |
Audio Decoding | AAC/G.711 |
Decoding Delay | < 200ms(Adjustable) |
Decoding Ability | 4K30Hz: up to 4 channels simultaneously 1080P 50Hz/60Hz: up to 8 channels simultaneously 1080P 30Hz, 1080I 50/60Hz or 720P and below; up to 9 channels simultaneously |
Split Sceen Display | 9 Channels of video sumltaneous decoding |
Management | Web |
Power Supply | 12V 1A |
Consumption | 6W |
Operating temperature | -20℃~60℃ |
Dimension | 13.8*10.5*2.5cm(5.4*4.1*0.9") |
Weight | 380g(13.4oz) |
