Compression, Drive & Boost Pedal
Keeley - 'Tone Workstation'

keeley tone workstation

Introducing the Tone WorkstationTen years ago, Keeley invented and made a small batch of the Tone Workstation, this then made its way into the hands of famous players and collectors. John Mayer recently took two of the originals out on the Dead & Company tour. For 2016 it’s more than a re-release; it’s a brand new, re-engineered workstation. The Keeley team of engineers and designers have upgraded the tone, enhanced the features, and reduced the size to now fit on anyone’s pedalboard.

The front end of your signal chain is where your tone develops. The first stage of amplification is vital for a sound that has clarity and delivers expressive tone. The work station gives you Compression, Drive, Overdrive & Boost. The Tone Workstation is designed to be the first stage signal chain. It may even be the only pedal you bring to a gig.

At A Glance • Intuitive design for ease of use
• Rugged construction, perfect for any pedalboard
• Designed and quality crafted in the USA
• True bypass circuitry

Enhanced Natural Guitar Tones

keeley tone workstation

Tons of SustainWith the classic Keeley Compressor, you can build a nice, wide tone with tons of sustain. You can adjust the Sustain control for more compression or squeeze. As you add sustain, your notes will ring out longer.

The Blend control allows for a compression which keeps the sound lively and crisp as you blend in your natural guitar tone. The Blend control is ideal for adding a bit of bite back in with high output pickups or humbuckers.

The Treble Boost switch can be used to further increase the treble and cut into the signal when using lots of compression. When the Blend is set completely CCW, you get only compressed signal out.

As you turn up the Blend, you get in more and more of your original signal, all the way to a 50/50 ratio. The attack and release times are pre-set in this compressor and are set for use with humbuckers or single coils.

Versatile Boost Options

keeley tone workstation

1962/Katana BoostThe 1962/Katana Boost section is one of many options for your core tone. With the 62/Katana channel, you can create a sound with just the right amount of break up. You can also use it in Boost mode, for that clean, pushed amp overdrive.

The 1962 is our British style overdrive, which is thick and wide tone with a moderate amount of crunch. Based on the famous Blues Breaker, the 1962 stage has been amplified by Keeley’s Katana Boost on either side, giving you tube-like saturation with the JFET valve simulation.

If you just want the famous Katana Clean you can have it at the flick a switch, pure clean, tube tone. In the Katana Mode, only the volume works; the Tone and Drive are disabled. It’s an irresistible clean sound people can’t get enough of.

15 Years of Overdrive

keeley tone workstation

Perfect MidrangeLast in the chain is Keeley’s renowned Red Dirt overdrive. The result is 15 years of modding tube screamers built into one toneful circuit.

Also featuring the Keeley JFET front end, the Red Dirt has the ideal amount of vital midrange coupled with the option to go all the way from clean and clear to super-saturated gain, times two!

The Red Dirt circuit captures every characteristic of your guitar’s tone and delivers a classic, silky smooth lead tone.

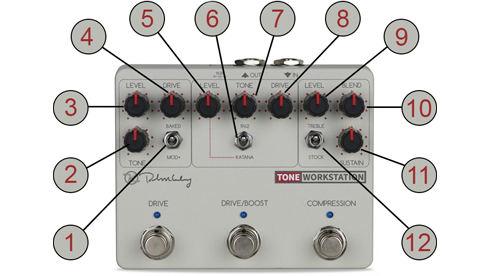

How To Control The Tone Workstation

keeley tone workstation

Dedicated Controls The Keeley Tone Workstation comes with dedicated controls for each part of the pedal allowing you to find the perfect tone with ease.

Footswitch

Mod+/BakedUp for high gain, down for lower gain

Switch

ToneTone of red dirt overdrive

Level

LevelOutput level of red dirt overdrive

Drive

DriveGain of red dirt overdrive

Level

LevelOutput level of the 1962 overdrive/katana clean boost

1962/Katana

1962/KatanaUp dfor 1962 OD, Down for Katana clean boost

Tone

ToneTone in 1962 mode (inactive in Katana mode)

Drive

DriveGain in 1962 mode (inactive in Katana mode)

Level

LevelOutput level of compressor

Blend

BlendLeft for full comp, right for 50/50 compression

Sustain

SustainRatio of compressor, increases sustain

Treble

TrebleTurn right for added brightness

Keeley Electronics Tone Workstation

The Tech Spec

Features Specification
Pedal Type Compressor, Overdrive, Boost
Analog/Digital Analog
Inputs 1 x 1/4"
Outputs 1 x 1/4"
True Bypass Yes
Power Source 9V DC power supply (sold separately)
Power Usage 20mA
Dimensions 2.09"(H) 4.74"(W) 3.91"(D)
Weight 0.93 lbs.
