Delay/Reverb Multi-Effects

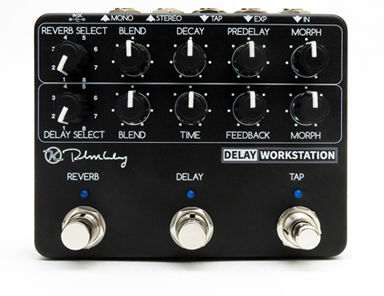

Keeley - 'Delay Workstation'

Multi-effects Pedal with 8 Delays
6 Reverbs, Stereo Outputs
Keeley’s vastly powerful ‘Delay Workstation’ is a multi-effects reverb/delay pedal, and is also a clever way to pack your pedalboard full of tricks, with only one stompbox! The Delay Workstation sports individual Reverb and Delay channels, each with 14 voices and unreal levels of control over each channel.
Here at Scan Pro Audio we were happy to see Keeley had included an integrated tap-tempo, an expression pedal input and also stereo outs to enable the Delay Workstation to be a part of anyone’s setup, regardless of any I/O differences in setups. This vastly boosts the versatility and usability for the Delay Workstation, put it to use with guitar/bass/even vocals! Keeley packed so much potential inside the Delay Workstation it's quite hard to comprehend!
Whilst a hugely capable, and sometimes intimidating pedal, Keeley designed the Delay Workstation to be easy to work with, and most importantly, great fun!
standout Features
• Compact multi-effects unit for delays and reverbs
• 8 sought-after delay types at the turn of a knob
• 6 variants of high-quality reverbs
• Onboard tap tempo offers supreme control
• Individually selectable effects
• Stereo outputs are great for larger guitar rigs
A One-Stop Shop for Delay & Reverb!

ignite your creativity!Using the Delay Workstation, it’s possible to bring together retro slapback and multi-head tape echoes with reverbs such as plate, or spring, to engineer some truly amazing soundscapes. Try setting the workstation for a nice analogue style delay, then crank the chamber reverb to create some truly ethereal vast spaces for you to work within.
Fancy a rhythmic delay with a little sparkle? It’s inside the Delay Workstation. Need to create a delay with a near-endless tail? You got it! With a little creativity and an adventurous spirit, the fun to be had with the Delay Workstation is massive! The only boundaries are the one’s you set for yourself.
With the Reverb side, the Delay Workstation is packing all the classic and iconic reverbs you’d expect to find. Using the ‘Morph’ control, you’re able to add some original and unique twists on reverbs like ‘spring tension’, ‘shimmer’ and crazy flanging. There are also two delays inside the reverb bank, it’s possible to use these to create some fantastic rhythmic patterns. All designed to ignite your creativity.
Navigating & Controlling the 'Delay Workstation'

keeley electronics
'Delay workstation'

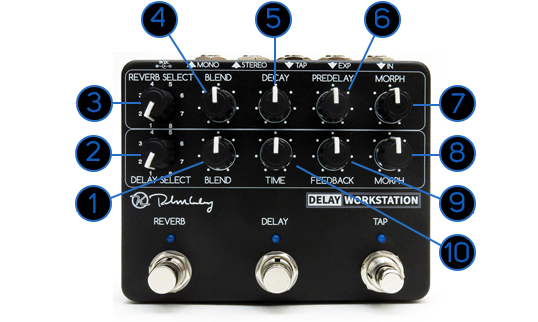

Keeley's 'Delay Workstation' is a hugely powerful and capable all-in-one delay unit. Capable of beautifully warm, rich delay tones all the way to huge cavernous ethereal type sounds, the Delay Workstation is surprisingly simple and intuitive to navigate. Take a look below and get to know this magnificent delay!

BlendBlend of wet/dry. Left for dry. right for wet. 50/50 at center.

Delay Select8 different delay types.

Reverb Select8 different reverb effects.

BlendBlend of wet/dry. Left for dry. right for wet. 50/50 at center.

DecayDecay the time of reverb. Function differs upon mode selected.

Pre delayPredelay time of reverb. Function differs upon mode selected.

MorphThis function differs upon mode selected.

MorphThis function differs upon mode selected.

FeedbackAdjusts the delay feedback in all modes.

TimeDetermines the delay time across all modes.
Keeley Electronics - 'Delay Workstation'
Multi-effects Pedal with
8 Delays / 6 ReverbsThe Keeley Delay Workstation is a powerful, dual DSP processor delay and reverb machine. Combining Keeley’s unique delay and reverb patches in an incredibly small package, the Delay Workstation is an extremely creative tool.

The Tech Spec
Features | Specification | Pedal Type | Delay, Reverb |
---|---|
Analogue/Digital | Analogue Delay with DSP effects |
Max Delay Time | 950ms |
Inputs | 1 x 1/4" (instrument) |
Outputs | 2 x 1/4" |
Other I/O | 2 x 1/4" (expression, tap tempo) |
True Bypass | Yes |
Power Source | 9V DC power supply (sold separately) |
Power Usage | 170mA |
Height | 2.1" |
Width | 4.7" |
Depth | 3.9" |
Weight | 0.93 lbs |
