Intel i7 Ghost Canyon Extreme NUC Mini PC Kit

Intel NUC9i7QNX Ghost Canyon Extreme NUC, i7-9750H, Intel UHD Graphics, DDR4, 2x M.2, PCIe Gen3, Dual TB3, Barebone Kit

Thumbnail 1 : Intel i7 Ghost Canyon Extreme NUC Mini PC Kit Thumbnail 2 : Intel i7 Ghost Canyon Extreme NUC Mini PC Kit Thumbnail 3 : Intel i7 Ghost Canyon Extreme NUC Mini PC Kit Thumbnail 4 : Intel i7 Ghost Canyon Extreme NUC Mini PC Kit
Scan code: LN109311 Manufacturer code: BXNUC9i7QNX3
£999.98
Order now and get it tomorrow, Wed 12th Aug
From £27.31 / month (APR 14.9%)
Monthly Payment: £89.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £999.98
Total inc. interest: £1,077.24
Monthly Payment: £48.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £999.98
Total inc. interest: £1,151.94
Monthly Payment: £34.17
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £999.98
Total inc. interest: £1,229.78
Monthly Payment: £27.31
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £999.98
Total inc. interest: £1,310.95
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 12th Aug to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Intel NUC 9 Extreme - Build Your Dream Rig

Intel i7 Ghost Canyon Extreme NUC 9

the first intel NUC to support desktop discrete graphicsThe Intel NUC 9 Extreme Kit is a very high performing piece of kit which is also upgradable with an Intel NUC 9 Extreme Compute Element. This Intel Extreme NUC 9 can house a desktop graphics card which is up to 8” in length making it a great option for enthusiast gamers. It offers the flexibility to be a monstrous gaming and streaming machine in a very small 5 liter chassis which makes it one of the smallest systems that supports desktop discrete graphics. The NUC 9 is fitted with a 5000W internal power supply and excellent integrated cooling which allows this compact PC to run cool and quiet while delivering desktop level performance on the latest games.

This Intel NUC 9 Extreme kit comes with the high end i7-9750H processor which has a massive 6 cores and 12 threads for fast and effortless multitasking. The Intel i7 CPU has a boost speed of up to 4.5 GHz so this is the powered, portable and customisable system that enthusiast gamers have been dreaming of. The NUC 9 extreme kit also supports three 4K displays and has the option for even more when you install a graphics card!

ProcessorCore i7-9750H

GraphicsIntel UHD 630 or Dual Slot 8" Discrete Graphics

Storage2 x (2280) M.2

DDR4 Memory2 x SODIMM Slots

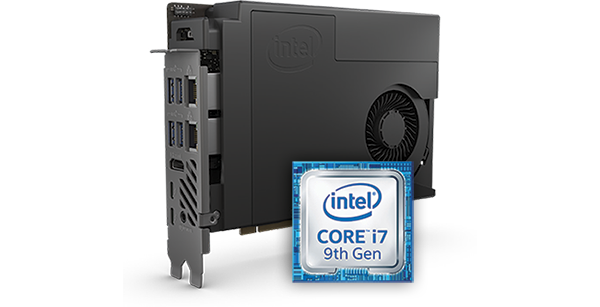

The All New Intel® NUC Compute Element

Ghost Canyon NUC Compute element

The New Standard in Compact and high performance Gaming Intel® NUC Elements are an entirely new way to design and build solutions and Mini PCs. The Intel® NUC Compute Element along with a series of Intel-designed components, deliver the flexibility of modular computing. You can easily upgrade your intel NUC with the Compute Elements hassle free to create the unique solution you need. The Intel Core i7 Compute Element has two NVMe or SATA m.2 slots which are also compatible with RAID 0/1 and Intel Optane Memory M10 and H10 ready. It also has two Thunderbolt ports, two intel gigabit LAN ports and a HDMI port along with four USB ports for your peripherals.

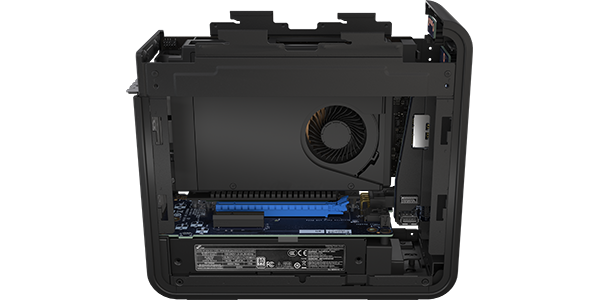

Add your own Graphics Card

Intel nuc 9 Mini PC external graphics card

additional displays supported with a discrete graphics card The Intel NUC 9 Extreme kit features a PCIe x16 slot which supports desktop graphics. A dual slot graphics card up to 8" in length can be installed into the NUC 9 Extreme and depending on your graphics card you can have the option to support more displays. This can enable you to be more involved in your work or whilst gaming.

Many Ports for all your Needs!

intel nuc 9 ports

Intel NUC 9 ConnectivityThe Intel NUC 9 Extreme Kit has all the ports you need for a heavy gaming RIG. The NUC 9 features 2x thunderbolt 3 ports, 2x Intel Gigabit LAN ports, a HDMI 2.0 port, an SDXC card slot with UHS-II support along with four USB 3.1 Gen2 ports. Intel WiFi 6 and Bluetooth 5 with dual antennas have also been integrated into the NUC 9 for a superfast wireless connection.

Discover the Features of the NUC 9

Specifications
Edition NUC 9 Extreme
Form Factor Intel NUC
CPU Included Yes
CPU Type Intel Core i7
CPU Model 9750H
Architecture Coffee Lake
Manufacturing Process 14 nm
Unlocked CPU No
Core 6 Core
No. of Threads 12
Clock Speed 2.6 GHz
Burst Frequency 4.5 GHz
CPU Cache 12MB
CPU Cooler
Max. TDP 45 W
CPU Socket N/A
Chipset Intel C622
Motherboard Form Factor Intel NUC
Motherboard Model
Memory Type DDR4
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 2666
Max. Memory Capacity 64GB
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel UHD Graphics 630
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed 350 MHz
Max. GPU Speed 1150 MHz
GPU Memory Size
GPU Memory Type Shared
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution 4096x2304 (4K) @60Hz
Graphics Interface PCIe 3.0 (x16)
Expansion Slots
  • 2 x M.2, 22-42/80, PCIe Gen3
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x4
SATA SATA3
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
Optical Drive None
Drive Bays N/A
Backplane I/O
RAID Support
Internal I/O
  • 3 x SATA III - 6Gb/s
  • 3 x USB 2.0 Header
  • 1 x USB 2.0 Port
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 2 x Intel (Gigabit LAN)
  • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
Front Panel
Back Panel
  • 2 x 10/100/1000 (LAN)
  • 1 x 2-in-1 Audio Jack
  • 1 x HDMI 2.0a
  • 2 x Thunderbolt 3
  • 4 x USB 3.1 Gen2 Type-A
  • 1 x WiFi 802.11ax/BT5.0 Module
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 500 W
PSU Efficiency Rating
PSU Redundancy Single PSU
Operating System Included No
Operating System Not Included
Colour Black
Dimensions 238 x 216 x 96 (mm WxHxD)
Weight
Includes
Notes
Storage Drives
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Additional Information
Scan Code LN109311
Model Number BXNUC9i7QNX3
GTIN 5032037177733
