Scan code: LN125100 Manufacturer code: BNUC11TNKI30000

Intel Core i3 Tiger Canyon NUC 11 Slim Mini PC Barebone Kit

Intel NUC11TNKi30000 Tiger Canyon Slim NUC, i3-1115G4, Intel UHD Graphics, DDR4, 3x M.2, PCIe Gen4, USB 4, Barebone

MORE INFO
MORE INFO
Thumbnail 1 : Intel Core i3 Tiger Canyon NUC 11 Slim Mini PC Barebone Kit Thumbnail 2 : Intel Core i3 Tiger Canyon NUC 11 Slim Mini PC Barebone Kit Thumbnail 3 : Intel Core i3 Tiger Canyon NUC 11 Slim Mini PC Barebone Kit
Scan code: LN125100 Manufacturer code: BNUC11TNKI30000
Order by 8:30 PM today and get it tomorrow (upgrade to Saturday delivery at checkout)
£299.99
Add To Basket
Get it Tomorrow, 13 AugIn stock
From £13.77 / month (APR 9.9%) or 0% for 4 months
Monthly Payment: £26.31
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £299.99
Total inc. interest: £315.60
Monthly Payment: £13.77
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £299.99
Total inc. interest: £330.50
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £7.49 / month (APR 15.9%)
Delivery Options
  • By DPD On 15th Aug to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

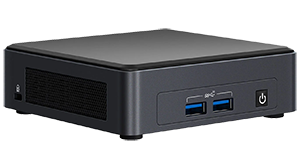

NUC 11 Core i3 Pro Barebone Kit from Intel

NUC 11 Pro Kit

Pint-Sized PowerThe Intel® NUC is a mini PC with the power of a desktop, packing features for entertainment, gaming, and productivity in a 4x4 form factor. You get an immersive media experience and responsive interaction while consuming a small amount of power relative to a full-sized PC. Due to its portable size and ease of installation, the Intel® NUC makes it easy to add devices and scale up rapidly based on changing productivity needs.

Core i3-1115G4Processor

Wi-Fi 6 AX201Integrated Wireless

4.10 GHzMax Turbo Frequency

4x DisplaysSupported

Please Note

This is a barebone system. Memory (DDR4 SODIMM), Storage (2.5" HDD or M.2 SSD) and operating system are not included and must be purchased separately.

Advanced Technologies

Intel® Virtualisation Technology for Directed I/O (VT-d)Intel® Virtualisation Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualisation adding new support for I/O-device virtualisation. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualised environments.

Side angle of NUC 11

Intel® Virtualisation Technology (VT-x)Intel® Virtualisation Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® Platform Trust Technology (Intel® PTT)Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8 and Windows® 10. Intel® PTT supports BitLocker for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.

Convenient Connectivity

Ready When You AreAll the connectivity options you need are available on the NUC 11 Pro Kit. Featuring USB 3.2 for fast data transfer speeds to the HDMI and Thunderbolt ports providing resolutions of up to [email protected] and supporting up to 4x displays. Also, if you're not in a zone where you can benefit from the integrated Wi-Fi 6 AX201, you can always rely on the blazing fast 2.5GbE port for reliable connectivity.

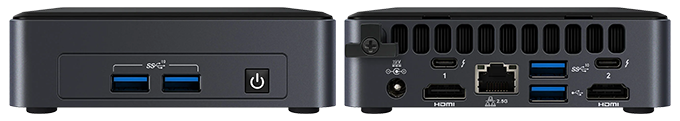

4K Recording

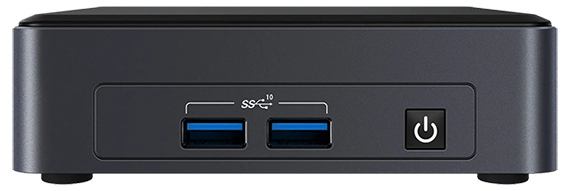

Front2x USB 3.2
1x Power Button

Rear1x Thunderbolt™ 4
1x Thunderbolt™ 3
2x HDMI 2.0b w/HDMI CEC
1x 2.5GbE LAN
DC Input: 12-20 VDC

Specifications
Edition NUC11TNKi30000
Form Factor Intel NUC
CPU Included Yes
CPU Type Intel Core i3
CPU Model i3-1115G4
Architecture Tiger Lake
Manufacturing Process 10 nm
Unlocked CPU No
Core Dual Core
No. of Threads 4
Clock Speed 2.4 GHz
Burst Frequency 4.1 GHz
CPU Cache 6MB
CPU Cooler
Max. TDP 28 W
CPU Socket N/A
Chipset N/A
Motherboard Form Factor UCFF (4" x 4")
Motherboard Model NUC11TNBi3
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 3200
Max. Memory Capacity 64GB
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel UHD Graphics
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots
  • 1 x M.2, 22-30 (Supports WiFi/Bluetooth Cards)
  • 1 x M.2, 22-42, PCIe Gen3
  • 1 x M.2, 22-80, PCIe Gen4x4
SATA N/A
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Optical Drive None
Drive Bays N/A
Backplane I/O
RAID Support
Internal I/O
  • 1 x Front Panel Connector
  • 1 x Internal Power Header
  • 1 x Serial (COM) Header
  • 1 x Wireless LAN Module
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel (2.5GbE LAN)
Front Panel
  • 1 x Power Button
  • 2 x USB 3.2 Gen1 Type-A
Back Panel
  • 1 x DC-In Jack
  • 2 x HDMI 2.0b
  • 1 x RJ-45
  • 1 x Thunderbolt 3 with DisplayPort Support
  • 1 x Thunderbolt 4
  • 1 x USB 2.0
  • 1 x USB 3.2 Gen1 Type-A
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 112 x 37 x 117 (mm WxHxD)
Weight
Includes
Notes
Additional Information
Scan Code LN125100
Model Number BNUC11TNKI30000
