Scan code: LN91946 Manufacturer code: BOXNUC8I3BEK3

Intel Dual Core 8th Gen i3 Short NUC Barebone Mini PC Kit

Intel NUC Kit, NUC8I3BEK, i3-8109U, DDR4, M.2 PCIe/SATA, Iris Plus Graphics 655, USB 3.1 Gen2, Thunderbolt3, Barebone

Free Bullguard Internet Security 2019 3 User/1 year Worth 19.99 - LN 90580
Thumbnail 1 : Intel Dual Core 8th Gen i3 Short NUC Barebone Mini PC Kit Thumbnail 2 : Intel Dual Core 8th Gen i3 Short NUC Barebone Mini PC Kit Thumbnail 3 : Intel Dual Core 8th Gen i3 Short NUC Barebone Mini PC Kit Thumbnail 4 : Intel Dual Core 8th Gen i3 Short NUC Barebone Mini PC Kit
Scan code: LN91946 Manufacturer code: BOXNUC8I3BEK3
£249.98
From £10.42 / month (APR 0%)
Monthly Payment: £41.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £249.98
Total inc. interest: £249.98
Monthly Payment: £20.84
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £249.98
Total inc. interest: £249.98
Monthly Payment: £13.89
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £249.98
Total inc. interest: £249.98
Monthly Payment: £10.42
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £249.98
Total inc. interest: £249.98
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £6.24 / month (APR 15.9%)
Delivery Options
  • By DPD On 22nd Nov 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

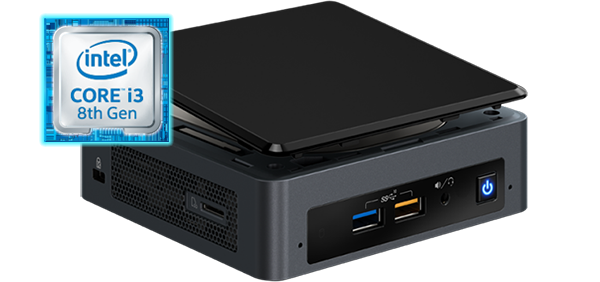

The Intel® i3 NUC Kit: Configure your own Mini PC

Intel i3 Nuc Kit

Grab Every GHz of Performance for Gaming & Content CreationGet ready for spectacularly responsive performance from the Intel® NUC Mini PC kits with 8th generation Intel® Core™ i3 processors. The latest generation of Intel NUC kits let you or your customers build the exact system they want. From choosing chassis size to memory options to storage configurations, the benefit of building an Intel NUC kit is the ability to completely customize the kit for your specific usage. Whether working on presentations, word processing, or streaming media, the Intel® NUC8i3BEK Mini PC kits deliver the features people want—in a size that fits easily into any lifestyle and any room in the house.

Core i3-8109UCPU

Intel Iris Plus Graphics 655GPU

1 x M.2 2242/2280Storage

2 x SO-DIMM 2400MHzDRAM - DDR4

Who Says Small isn’t Powerful?

Intel i3 CPU Mini PC

Think You Know What Small Can Do? Think Again The Intel NUC8i3BEK Mini PC kit with a true dual-core 8th generation Intel Core i3 processor delivers a big jump in performance compared to the previous generation Intel® NUC7i3BNK kits. Whether it’s built for a new home PC or a system with 4K UHD graphics for picture perfect entertainment, the Intel NUC8i3BEK Mini PC kit gives great visual immersion with Iris® Plus Graphics 655 and the unprecedented performance of Intel® Core™ processors. The Intel NUC Mini PC kits have chassis that are connectivity powerhouses; coming with Thunderbolt™ 3 which supports up to 40 GBps of data transfer, four USB 3.1 Gen2 Type-A ports, & two additional USB ports via 1x4 internal headers. There’s also room for an M.2 SSD. The Intel NUC Mini PC kits support triple displays all in 4K Ultra HD—with an HDMI 2.0a port and DisplayPort 1.2 via USB-C—so images or work can be shown across three screens without losing fidelity.

Extreme Connectivity for all your Peripherals

The New Standard in Compact Computing In a footprint that’s almost zero—especially when compared with a tower—the Intel NUC Mini PC kits can be custom built to have the performance and features of a desktop PC in a device that fits in the palm of your hand. The small size means the Intel NUC can be positioned almost anywhere—from behind a display to tucked discretely in an entertainment center. Moreover, with improved cooling, fan noise is minimal—which means a quieter experience no matter where the Intel NUC is positioned.

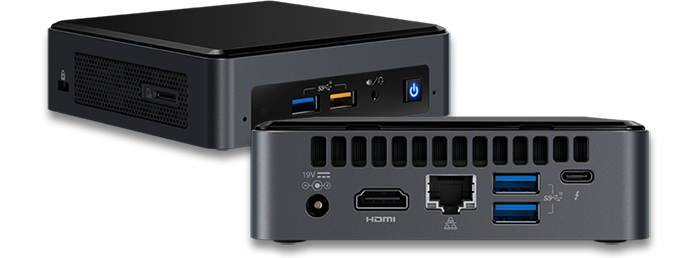

NUC 8 Ports

1 8th Gen Intel® i3-8109U CPU  2 Iris® Plus Graphics 655  3 Two DDR4 SO-DIMM sockets (up to 32GB, 2400MHz)
4 SATA3 Port connection for 2.5" SSD/HDD  5 Support for a 42 or 80mm M.2 SSD   6 Intel Optane memory ready (up to 32GB)
7 Intel Dual Band Wireless AC9560 and Bluetooth 5.0  8 Back Panel DC power connector (12-19V)   9 HDMI 2.0a   10 Intel Gigabit LAN
11 Two USB 3.1 ports on the back panel   12 Thunderbolt™ 3 USB-C port providing DisplayPort 1.2 or USB 3.1 gen 2
13 Kensington lock support   14 Support for user-replaceable third-party lids   15 Micro SD card slot
16 Consumer infrared sensor   17 Two USB 3.1 Ports   18 Headphone / Mic Jack   19 Power   20 Dual-array front microphones

Specifications
Edition Intel NUC Kit NUC8i3BEK
Form Factor Intel NUC (Short)
CPU Included Yes
CPU Type Intel Core i3
CPU Model 8109U
Architecture Coffee Lake
Manufacturing Process 14 nm
Unlocked CPU No
Core Dual Core
No. of Threads 4
Clock Speed 3.0 GHz
Burst Frequency 3.6 GHz
CPU Cache 4MB
CPU Cooler Air Cooled
Max. TDP 28 W
CPU Socket Integrated CPU
Chipset Intel SoC
Motherboard Form Factor UCFF (4" x 4")
Motherboard Model NUC8i3BEB
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included RAM Memory Not Included - Please Buy Separately
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 2400
Max. Memory Capacity 32GB (2x16GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel Iris Plus Graphics 655
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units 48
GPU Tensor Cores N/A
Base GPU Speed 300 MHz
Max. GPU Speed 1050 MHz
GPU Memory Size 128MB
GPU Memory Type eDRAM
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution 4096x2304 (4K) @60Hz
Graphics Interface On-board
Expansion Slots
  • 1 x M.2, 22-30 (Occupied by WiFi Card)
  • 1 x M.2, 22-42/80, PCIe Gen3/SATA
SATA M.2
Storage Drive Included No
Storage Drive Type Storage Drive Not Included - Please Buy Separately
Storage Drive Capacity N/A
Optical Drive N/A
Drive Bays N/A
Backplane I/O
RAID Support Not Supported
Internal I/O
  • 1 x CEC Connector
  • 1 x Front Panel Connector
  • 2 x USB 2.0 Header
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel (Gigabit LAN)
  • 1 x Intel Wireless-AC 9560 (ac WiFi, MU-MIMO, BT5)
Front Panel
  • 1 x Consumer Infrared Rx Sensor
  • 1 x HDD Activity LED
  • 1 x Headphone/Mic Combo
  • 1 x Power Button with LED
  • 1 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-A (w/ Quick Charging)
Back Panel
  • 1 x DC-In Jack
  • 1 x HDMI 2.0a
  • 1 x Kensington Lock Slot
  • 1 x MicroSDXC Card Reader (UHS-I)
  • 1 x RJ-45
  • 2 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C/Thunderbolt3
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage 90 W
PSU Efficiency Rating
PSU Redundancy Single PSU
Operating System Included No
Operating System O/S Not Included - Please Buy Separately
Colour Black/ Gunmetal
Dimensions 112 x 36 x 117 (mm WxHxD)
Weight
Includes
Notes
Additional Information
Scan Code LN91946
Model Number BOXNUC8I3BEK3
GTIN 5032037133876
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
intel
Telephone:
0870 607 2439
