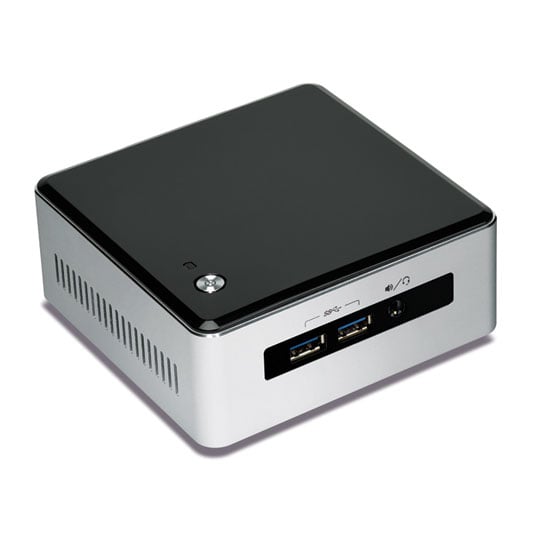

NUC5I5MYHE Intel i5 Dual Core Barebone OEM NUC Compact Mini PC

Intel NUC Core i5-5300U Dual Core 2.3GHz, DDR3L SO-DIMM, M.2 + SATA III 6Gb/s 2.5" Internal, Intel HD 5500, Barebone OEM

FREE Bullguard Internet Security 2017 3 User/1 year Worth 19.99
Scan code: LN62996 Manufacturer code: BLKNUC5I5MYHE Request call
£368.39Item overdue since 21 March 2018
Pre order
Pay on Scan Finance with a 10% deposit from just £9.20 / month (APR 15.9%)
From £17.69 / month (APR 14.9%)
Monthly Payment: £63.93
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £368.39
Total inc. interest: £383.54
Monthly Payment: £33.08
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £368.39
Total inc. interest: £396.85
Monthly Payment: £22.81
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £368.39
Total inc. interest: £410.45
Monthly Payment: £17.69
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £368.39
Total inc. interest: £424.32
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
3xs Approved High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Small. Solid. Reliable.
From enterprise to small and medium business, university computing labs to call centers, the Intel® NUC is driving new models of computing in small spaces. The Intel® NUC NUC5i5MYHE kit and NUC5i5MYBE board, built with a 5th generation Intel® Core™ i5 vPro™ processor, have a small footprint, but big potential. With 4K display support it's an ideal device for digital signage with video analytics, digital kiosk, intelligent vending, or PC replacement.

The power and performance to run analytics, reduce downtime
The new Intel NUC kit and board are powered by the Intel® Core™ i5-5300U vPro™ processor, providing an ideal combination of performance and reliability for usages where downtime isn't an option. Intel® vPro™ technology helps you manage and mitigate repairs remotely, reducing the time it takes to resolve hardware problems by 66 percent and software problems by 88 percent giving your digital signage, intelligent vending, and embedded customers the reliability and availability they require. The advanced capabilities of the Intel® Core™ i5 vPro™ processor gives your customers performance to run video analytics to help target and personalize messages and offers to the right audience. And the triple display capability means your customers can deliver their messages across multiple screens.

PC replacement delivers improved productivity
With the processing power and reliability of the Intel Core vPro processor and Intel® HD graphics for a seamless visual experience without needing an additional graphics card, this Intel NUC makes a perfect PC replacement. A VESA mount is included so your customers can create VESA-mounted All-in-Ones for big computing in small spaces. This Intel NUC also includes Intel® Turbo Boost Technology for performance that adapts to your clients' needs, along with improved energy efficiency.

Designed for flexibility and customization
A serial port option to connect legacy embedded devices means that you can customize the Intel NUC for a wide-range of usages, including POS systems. A replaceable lid further extends options for customization, enabling third-party innovation and new usage models with NFC and USB headers. Your customers can choose the type of storage they want, as well. The Intel NUC NUC5i5MYHE and NUC5i5MYBE have the option to install a 2.5" HDD or an M.2 SSD. The choice gives your customers options to store all their files locally or take advantage of the fast, power-efficient M.2 form factor which minimizes load times and improves reliability.

Just add your choice of Low Voltage DDR3L RAM, an M.2/SATA III 2.5" Solid State/Hard Drive & Windows 8.1 and you'll be ready to connect your completed Intel NUC to any compatible Keyboard, Mouse, Monitor/TV to work, play or relax with your new PC.

Note: This is a Barebone NUC Kit. RAM Memory, SSD/HDD Storage & Operating System (Windows) are not included. Features • 5th generation Intel® Core™ i5-5300U vPro™ processor
• Intel® HD Graphics 5500
• Discrete Trusted Platform Module (TPM 2.0)
• Internal DC power header (12V - 24V)
• Two DDR3L SO-DIMM sockets (up to 16 GB, 1333/1600 MHz)
• 2x Internal USB 2.0 ports via 1x8 header (for replaceable lid support)
• Storage support for M.2 SSD card and 2.5" HDD/SSD
• M.2 22x30 slot and wireless antennas pre-assembled (for wireless card support)
• eDP connector
• Support for user-replaceable third-party lids
• Intel® HD Audio via Mini DisplayPort* and Headphone/Microphone jack
• 2x USB 3.0 ports on the front panel
• Two Mini DisplayPorts version 1.2 supporting 8 channel digital audio (7.1 surround sound)
• 2x USB 3.0 ports on the back panel
• Intel® Gigabit LAN
• Back panel serial port expandability (requires 3rd party serial cable)
• Backpanel DC power connector (12V - 19V)
• Kensington lock support

Note: Barebone NUCs accept Low Voltage 1.35v DDR3L SO-DIMM Modules ONLY.
Form Factor Intel NUC
CPU Included Yes
CPU Type Intel Core i5
CPU Model i5-5300U
Manufacturing Process
Unlocked CPU No
Core Dual Core
No. of Threads 4
Clock Speed 2.3 GHz
Burst Frequency 2.9 GHz
CPU Cache
CPU Cooler
Max. TDP
CPU Socket Integrated CPU
Chipset Integrated Intel
Motherboard Form Factor
Motherboard Model
Memory Type DDR3L SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Channels
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR3L - 1333
  • DDR3L - 1600
Max. Memory Capacity 16GB (2x8GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel HD Graphics 5500
Discrete GPU No
Discrete GPU Chipset
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed 300 MHz
Max. GPU Speed 900 MHz
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
SLI Multi-GPU Configuration No
Max. GPU Resolution 3840x2160 (Ultra HD)
Graphics Interface On-board
Expansion Slots N/A
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive None
Drive Bays 1 x 2.5" Internal (up to 9.5mm thickness)
Backplane I/O
RAID Support N/A
Internal I/O
  • 1 x DC Power Header
  • 1 x Discrete TPM 2.0
  • 1 x eDP
  • 1 x M.2
  • 1 x NFC Header
  • 1 x SATA III - 6Gb/s
  • 1 x USB 2.0 Header
Network Interface Type
Network Chip/Modules
Front Panel
  • 1 x Headphone/Mic Combo
  • 2 x USB 3.0
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x DC-In Jack
  • 2 x Mini DisplayPort 1.2
  • 2 x USB 3.0
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage 65 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black/ Grey/ Silver
Dimensions 115 x 48.7 x 111 mm (mm WxHxD)

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
0870 607 2439
Customers also bought
Intel NUC Core i5-5300U Dual Core 2.3GHz, DDR3L SO-DIMM, M.2 + SATA III 6Gb/s 2.5" Internal, Intel HD 5500, Barebone OEM is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Nice piece of kit Replaced desktop PC with this tiny form factor pc. Performance is excellent
Date published: 2015-11-04
