Intel NUC 11 Pro Kit Core i7 Mini PC Barebone System

Intel NUC 11 Pro Kit, NUC11TNKv7, Tiger Canyon, Core i7-1185G7, DDR4 SO-DIMM, M.2 SSD Slot, Wi-Fi 6/BT, Barebone

Scan code: LN115449 Manufacturer code: BNUC11TNKV70000
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Intel NUC 11 Pro Barebone Kit with Core i7 CPU

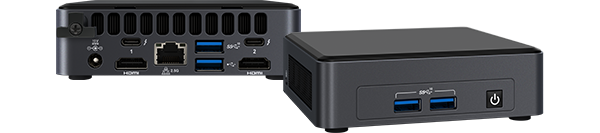

Intel NUC 11 barebone

the first intel NUC to support desktop discrete graphicsThe Intel NUC 11 comes with an 11th Gen Intel® Core™ i7 processor and Intel® Iris® Xe graphics so you can get high performance for computing at the edge for office productivity and collaboration. The latest 11th Gen Intel® Core™ processors give you the power for any task whether it’s work or play. Sleek, attractive, and designed to fit in a variety of commercial usage, the compact form factor is versatile and powerful. Connect fast—wired and wirelessly—with Thunderbolt™ ports, Intel® Wi-Fi 6 AX201, Ethernet speeds up to 2.5 Gbps, and support up to four 4K displays. Qualified for 24x7 operation and backed by a three-year warranty, the Intel® NUC 11 Pro is designed to keep business running for years.

ProcessorCore i7-1185G7

GraphicsDual HDMI w/HDMI CEC & Dual DP 1.4a via Type C

Storage2 x (2280) M.2

DDR4 Memory2 x SODIMM Slots

Immerse, Create & Collaborate

tiger Canyon NUC CPU

4Cores

8Threads

4.8GHzMax Turbo Frequency

12MBIntel Smart Cache

The New Standard in Compact and high performance Gaming11th Gen Intel® Core™ mobile processors power the ultimate thin & light laptops & Intel NUC kits with industry-leading CPU performance, discrete-level graphics, amazing AI acceleration, and great battery life. Intel® Optane™ memory accelerates launching the applications you use most.

Meet All of your Productivity Needs!

Intel nuc 11 display

additional displays supported with a discrete graphics card The NUC 11 may be small outside but is very powerful inside for business professionals. The NUC 11 is available in multiple processor and chassis options so you can find what best for you. The NUC is made for immersive experiences with Intel Iris Xe graphics. you can connect one 8K or up to four 4K displays!

Specifications
Edition NUC11TNKv7
Form Factor Intel NUC
CPU Included Yes
CPU Type Intel Core i7
CPU Model i7-1185G7
Architecture
Manufacturing Process 10 nm
Unlocked CPU No
Core Quad Core
No. of Threads 8
Clock Speed 3 GHz
Burst Frequency 4.8 GHz
CPU Cache 12MB
CPU Cooler Passive Heatsink
Max. TDP
CPU Socket N/A
Chipset N/A
Motherboard Form Factor UCFF (4" x 4")
Motherboard Model NUC11TNBv7
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 3200
Max. Memory Capacity 64GB
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots
  • 1 x M.2, 22-30 (Supports WiFi/Bluetooth Cards)
  • 1 x M.2, 22-42, SATA
  • 1 x M.2, 22-80, PCIe Gen4x4
SATA N/A
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
Optical Drive None
Drive Bays N/A
Backplane I/O
RAID Support
Internal I/O
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel Wi-Fi 6 AX201 (ax WiFi, BT5.1)
Front Panel
  • 1 x Power Button
  • 2 x USB 3.2 Gen1 Type-A
Back Panel
  • 1 x USB 2.0
  • 1 x USB 3.2 Gen1 Type-A
  • 2 x USB Type-C
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 112 x 37 x 117 (mm WxHxD)
Weight
Includes
Notes
Storage Drives
SSD Storage Included No
SSD Storage Type M.2 SSD
SSD Storage Capacity
Additional Information
Scan Code LN115449
Model Number BNUC11TNKV70000
GTIN 5032037204750
