Intel Core i7 6700K Unlocked Skylake Desktop Processor
Intel Core i7 6700K, S 1151, Skylake, Quad Core, 4.0GHz, 4.2GHz Turbo, 8MB Cache, 1150MHz GPU, 40x Ratio, 91W CPU Retail
INTEL i7 6700K PROCESSOR
Take control with the 6th Generation Intel® Core™ processors codenamed "Skylake-S". The i7 6700K is the flagship processor of the Skylake-S line-up that features exceptional performance that is increased by up to 22% and offers 6x faster storage bandwidth for quicker media access, all this means for an all-round more responsive PC. The 'K' prefix shows that this CPU is Unlocked and has overclocking enabled this is great news for extreme gamers and enthusiasts. Improved overclocking is supported on the 6700K when in conjunction with Z170 chipsets only, it uses the BCLK (base clock) overclocking feature.
Intel i7 6700 Performance
The Intel® Core™ i7 6700K boasts a 3.5 GHz base frequency and 3.9 GHz turbo frequency, the processor is also built on a 14 nm process, with a 91 W maximum TDP. The chip is a Quad-Core design with 4 threads. Integrated into the processor is Intel® HD Graphics 530 which delivers mainstream-level graphics with discrete-level performance and has full support for DirectX 12 API. Intel's 6700K is fully unlocked allowing you to tune performance and obtain higher frequencies when used with Intel 100 series chipsets. Previous generation Intel processors such as the Intel® Core™ i7-4790K processor used DDR3 memory, typically running at 1600 or 2133MHz. The Core i7 6700K has an enhanced memory controller that supports DDR4 memory, giving you a very healthy performance boost over DDR3.
Intel® Core™ i7 is a brand name applies to several families of desktop and laptops, The Core™ i7 brand targets the business and high-end consumer markets for both desktop and laptop computers, and is distinguished from the enty-level Core™ i3 and the more mainstream Core™ i5.
PROCESSOR FEATURES
Dramatic Increase in Media & Graphics
Intel® HD Graphics 530 can easily deliver an amazing visual experience in resolutions all the way up to Ultra HD 4K, so you can make the most of 4K displays. The Intel® Core™ i7 6700K also has support for the latest graphics APIs such as DirectX 12, this means that you will be able to run mainstream games and apps up to 2x better graphics than previous generation processors. Intel's on-board graphics processor is up to 28% faster than previous generation GPUs.
Responsive Performance
New architecture and design in the Intel® Core™ i7 6700K processor for desktops brings:

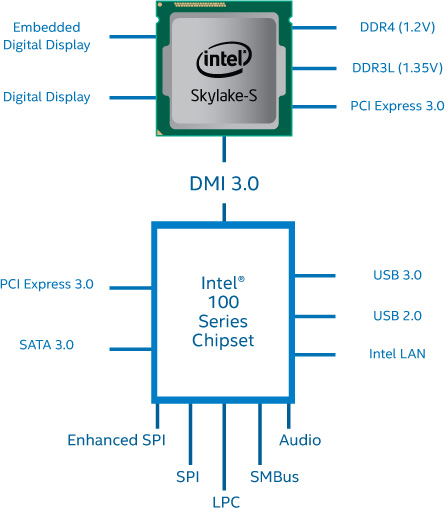

Support for DDR4 RAM memory technology in mainstream platforms, allowing systems to have up to 64GB of memory and higher transfer speeds at lower power when compared to DDR3 (DDR4 speed 2133 MT/s at 1.2V vs DDR3 speed 1600 MT/s at 1.5V)
Responsive Performance
New architecture and design in the Intel® Core™ i7 6700K processor for desktops brings:
Support for DDR4 RAM memory technology in mainstream platforms, allowing systems to have up to 64GB of memory and higher transfer speeds at lower power when compared to DDR3 (DDR4 speed 2133 MT/s at 1.2V vs DDR3 speed 1600 MT/s at 1.5V)
Increased Security
6th Gen Intel® Core™ i7 6700K processor offer hardware-level security features such as:
Intel® Software Guard Extensions (Intel SGX) that help protect your system and your data
Intel® Memory Protection Extensions that help protect an application's run-time integrity
Intel® Device Protection Technology and Intel® Device Protection Technology to help protect your system during boot
INTEL TECHNOLOGIES
Intel® Turbo Boost Technology 2.0
Dynamically increases the processor’s frequency, as needed, by taking advantage of thermal and power headroom when operating below specified limits.
Intel® Hyper-Threading Technology
Delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
Intel® HD Graphics
Play HD videos with exceptional clarity, view and edit even the smallest details of photos, and play today’s modern games.
Intel® Quick Sync Video
Delivers excellent video conferencing capability, fast video conversion, online sharing, and fast video editing and authoring.
Intel® Clear Video HD Technology
Visual quality and colour fidelity enhancements for HD playback and immersive web browsing.
Integrated Memory Controller
DDR4 Memory offers stunning read/write performance through efficient prefetching algorithms, lower latency, and higher memory bandwidth.
Intel® Virtualisation Technology
Offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel® AES
Advanced Encryption Standard Instructions engine for a variety of encryption apps, whole disk encryption, file storage encryption, internet security, and VoIP.
Intel® Power Optimizer
increases periods of silicon sleep state across the platform ingredients, including the CPU, chipset, and third-party system components, to reduce power.
CPU / Memory / Graphics Overclocking
On select products, CPU / graphics and memory can be run at frequencies above the rated frequency of the part resulting in higher performance.
Intel® Secure Key
Security hardware-based random number generator that can be used for generating high-quality keys for cryptographic (encryption and decryption) protocols.
Intel® Transactional Synchronization Extensions
TSX-NI is a set of instructions focused on enterprise-level multi-threaded performance scaling, making parallel operations more efficient.
Intel® Advanced Vector Extensions 2.02
AVX 2.0 has new optimized instructions to deliver enhanced performance on floating point–intensive apps.
Intel® OS Guard
A hardware-based security feature that protects the OS (operating system) kernel. OS Guard helps prevent use of malicious data or attack code.
Intel® Ready Mode Technology
Provides quick access to your PC with applications that are up-to-date and constantly connected.
Intel® Identity Protection Technology
Protect your one-time-password (OTP) credentials and PKI certificates and add a layer of encrypted second factor authentication for online transactions.
Green Technology
Manufactured with lead-free and halogen-free component packages
Conflict Free
Does not contain conflict minerals that directly or indirectly finance or benefit armed groups in the Democratic Republic of the Congo (DRC) or adjoining countries.
