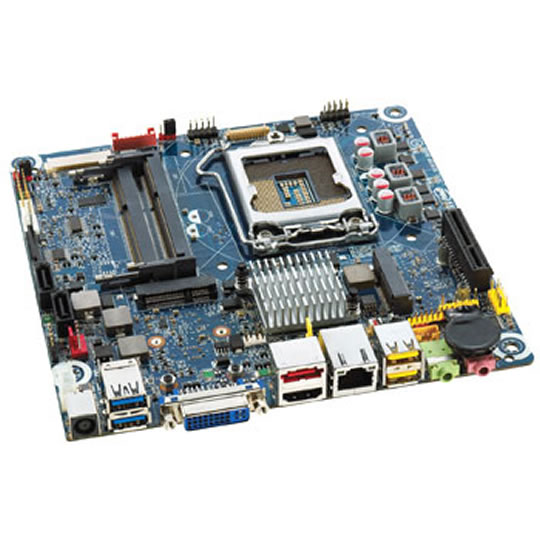

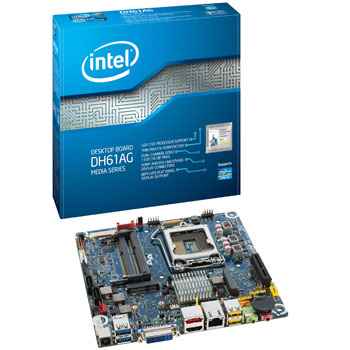

Intel BOXDH61AG Motherboard
Scan code: LN40404
Manufacturer code: BOXDH61AG
End Of Life
Intel BOXDH61AG Motherboard
Intel BOXDH61AG, Intel H61, S 1155, DDR3 SO-DIMM, SATA II - 3Gb/s, Mini ITX
Scan code:
LN40404
Manufacturer code:
BOXDH61AG
This product is no longer available to purchase.
Email me when the availability or price changes
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview
The Intel® Desktop Board DH61AG powered by the 2nd generation Intel® Core™ processors in the LGA1155 package offers Intel® HD Graphics with best-in-class media processing features in an innovative low z-height, Thin Mini-ITX form factor. Fully compatible with low height components such as SO-DIMMs and Full and half length PCI Express* mini-cards, the DH61AG also supports premium features such as SuperSpeed USB3, eSATA, and Hi Current/Fast charging USB 2.0 ports. Full display output support with HDMI* and DVI-I is complemented by flexible eDP or LVDS flat panel display support. Combination of low height components, premium features, and an external power supply make the DH61AG the perfect solution for high performance AIO systems, Tiny FF systems, and Home Theatre PC systems.
Features Memory
Two SO-DIMMs
Support for DDR3 1333 /1066 MHz DIMMs
Support for up to 16 GB of system memory
Audio
Intel® High Definition Audio (Intel® HD Audio) 10-channel (7.1+ 2 independent multi-streaming) audio subsystem using the Realtek ALC892* audio codec
Internal S/PDIF header and front panel audio header
LAN Support
Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller
Peripheral Interfaces
Two SATA 3.0 Gb/s and one External SATA (eSATA) 3.0 Gb/s ports
Two USB 3.0 ports
Ten USB 2.0 ports, two Hi-Current/Fast Charging back panel ports, and eight additional internal ports via five internal headers, 1via HMC, 2 via FMC
Expansion capabilities
One full-size Mini PCI Express* connector
One half-size Mini PCI Express connector
One PCI Express 2.0 x 4 connector
Features Memory
Two SO-DIMMs
Support for DDR3 1333 /1066 MHz DIMMs
Support for up to 16 GB of system memory
Audio
Intel® High Definition Audio (Intel® HD Audio) 10-channel (7.1+ 2 independent multi-streaming) audio subsystem using the Realtek ALC892* audio codec
Internal S/PDIF header and front panel audio header
LAN Support
Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller
Peripheral Interfaces
Two SATA 3.0 Gb/s and one External SATA (eSATA) 3.0 Gb/s ports
Two USB 3.0 ports
Ten USB 2.0 ports, two Hi-Current/Fast Charging back panel ports, and eight additional internal ports via five internal headers, 1via HMC, 2 via FMC
Expansion capabilities
One full-size Mini PCI Express* connector
One half-size Mini PCI Express connector
One PCI Express 2.0 x 4 connector
