End Of Life
Scan code: LN39655 Manufacturer code: BLKDH67CF/B3

INTEL BLKDH67CF B3 MoBo *OEM*

Intel BLKDH67CF/B3, Intel H67, S 1155, DDR3, SATA III - 6Gb/s, RAID SATA, PCIe 2.0 (x16), VGA On Board, Mini ITX

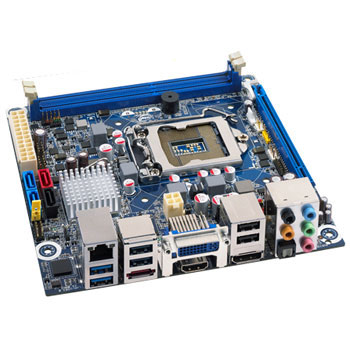

Thumbnail 1 : INTEL BLKDH67CF B3 MoBo *OEM*
INTEL BLKDH67CF B3 MoBo *OEM* : image 1
Scan code: LN39655 Manufacturer code: BLKDH67CF/B3
End Of Life
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Product Overview The Intel® Desktop Board DH67CF is Intel® H67 Express chipset-based desktop board in Mini-ITX form factor. It supports the 2nd generation Intel® Core™ i5 processor and other Intel® processors in the LGA1155 package. This board is featured with DVI-I, HDMI*, and DisplayPort* connectors and supports dual independent display. Powered by the 2nd generation Intel® Core™ processors, DH67CF delivers a superb visual performance for sharper images, richer color, and life-like audio and video.
Intel® Desktop Board DH67CF also offers premium features such as two SATA 6 Gb/s ports, two USB 3.0 ports with 5Gb/s link speed.
The Mini-ITX form factor provides maximum design flexibility for system designs ranging from All-in-One to portable systems.
Features Supports the 2nd-generation Intel Core processors, Including the Intel Core i5, Intel Core i3 and other Intel processors in the LGA 1155 Package for exceptional Performance
Intel H67 Express Chipset PCH
Intel Rapid Storage Technology for RAID 0, 1, 5 and 10
Dual-channel DDR3 with four connectors for 1333 / 1066 MHz memory support (16GB max)
PCI Express 2.0 x16 graphics connector
Two SATA 6.0 Gb/s ports and two SATA 3.0 Gb/s ports, with one port compatible with an eSATA extension
One eSATA 3.0 Gb/s port
Two SuperSpeed USB 3.0 ports
Ten HI-Speed USB 2.0 ports
Integrated Intel PRO 10/100/1000 Network connection for high speed and low power consumption
Ten-channel Intel High Definition Audio with Multi-streaming capability
DVI-I, HDMI and Display port
Mini-ITX form factor
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
intel
Telephone:
0870 607 2439
