Z-Tone-DI Active DI/Preamp by IK Multimedia
IK Multimedia Z-Tone-DI Active DI/Preamp, Advanced Tone Shaping, Active/Passive Selector, Z-TONE Control, PURE Channel
Z-TONE DI Box from IK Multimedia
Your instrument’s golden channelThe Z-TONE DI from IK Multimedia combines the award-winning sound shaping from IK’s AXE I/O interface with the flexibility to record both processed and DI guitar tracks at the same time, as well as best-in-class sound quality. It takes any audio interface (or live mixer) to the next level using the same techniques in the studio as pros like Joe Satriani. So when you want to track guitars the way the pros do, with a new level of sound quality and powerful workflow? Look no further than the groundbreaking Z-TONE™ DI.
Keep Your Sound Completely Pure and Transparent

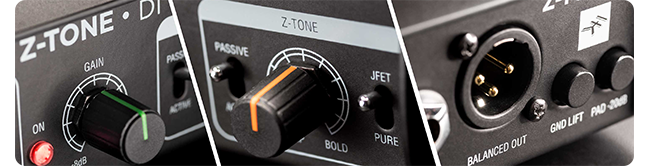

Comprehensive options Z-TONE DI offers a range of useful output options. The balanced XLR output offers a switchable ground lift, to eliminate noise and hum caused by ground loops, and an unbalanced ¼” output offers additional flexibility.
A Whole New way to Record

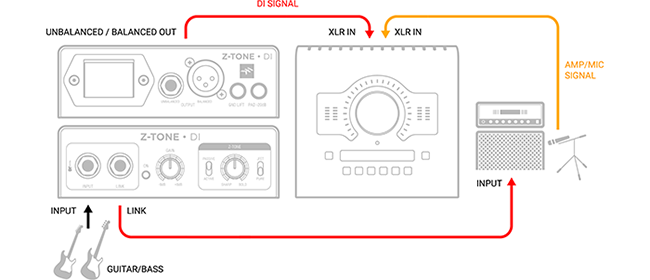

Flexibility with two tracks simultaneously Z-TONE DI lets you record two tracks simultaneously: the processed track coming from your amp and effects rig, and a direct track for post-processing using amp sims like the included AmpliTube 4. This way you can record with your real gear, and at the same time have maximum tone flexibility with a second track that you can process and fine-tune at will, without countless takes.
Powerful Tone Shaping Options

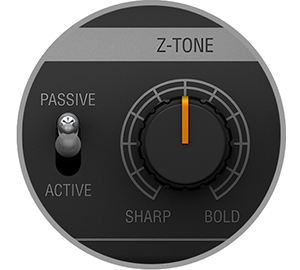

Pick your pickup:PASSIVE: Designed to accommodate everything from low-output vintage pickups to hotter modern humbuckers with ultra-low noise and extended frequency response.
ACTIVE: Bypasses unnecessary gain stages when using active pick-ups, to keep your signal path as direct and clean as possible.
Giving Yourself the Best Choice

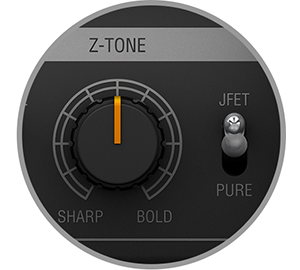

Choose your channel:PURE: A completely transparent and ultra-accurate preamp circuit that won’t color your sound in any way.
JFET: A Class A JFET input buffer for subtle harmonic
enhancement, midrange focus and warmth.
Tone and Feel like you’ve Never Heard

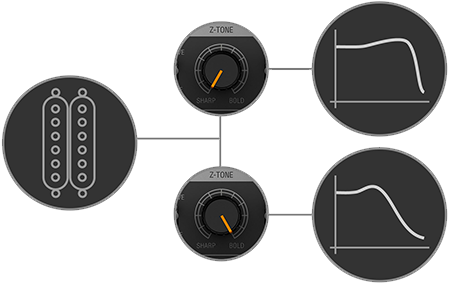

Z-TONE Circuits Guitar pickups can dramatically change their character depending on the impedance of your preamp. That’s why the tone and responsiveness of your guitar can change when plugging into different gear. Z-TONE DI puts you in control, with the same variable impedance control as our award-winning AXE I/O audio interface. Dial in impedance from 1 MOhm to 2.2 kOhms to shape your sound In unique ways. At the maximum impedance, you’ll find your sound tighter, sharper and more precise. Increase the load and the sound becomes thicker and more bold. You’ll quickly find yourself using this to give your guitars even more sonic character, dialing in sound that fits beautifully into the mix without the need for EQ.

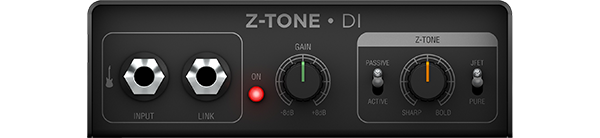

Special Features
• Active/Passive pickup selector
• PURE channel for transparent sound
• JFET channel adds warmth & harmonics
• Z-TONE variable impedance control
• 20 dB pad for extended operating range
• Balanced & unbalanced outputs
• Link out splits signal to amps & pedals
• Ground lift switch eliminates buzz & hum
• Rugged, stage-ready metal housing
AmpliTube 4 takes your Recording to a New Level

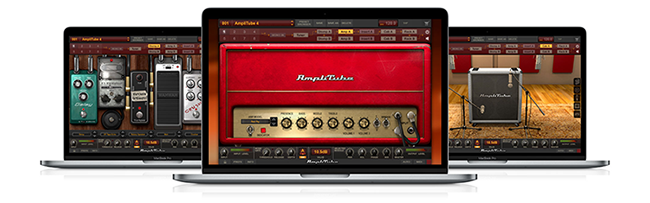

Amzing free software The Z-TONE DI comes with a full download version of AmpliTube 4, the hyper-realistic guitar and bass tone studio for Mac/PC, you can easily expand your sonic collection with IK’s range of additional amp and effect models – there are over 280 pieces to choose from, including officially licensed re-creations of gear from Fender®, Orange®, Mesa-Boogie® and other iconic gear manufacturers, as well as guitar legends like Slash, Jimi Hendrix and Dimebag Darrell, all available a la carte.
Premium Sound & Build
Every Nuance and DetailThe Z-TONE DI is designed to preserve the natural tone of your instrument. With exceptional 114 dB(A) dynamic range and extended 5 Hz - 30 kHz (+/- 1 dB) frequency response, Z-TONE DI ensures every nuance and detail of your instrument is carefully maintained.
The Tech Spec
Audio specs | I/O Gain | Unitary, from 1/4” input JACK to both 1/4” and XLR outputs when GAIN is at 0dB and Z-TONE at the SHARP position | Gain Range | From -8dB to +8dB | Input impedance | ACTIVE mode: Approx 20kΩ PASSIVE mode: Variable from 1MΩ down to 2.2kΩ |
Output impedance | Unbalanced out: 56Ω Balanced out: 600Ω |
Max input level before clipping | +13dBm when powered by 48V phantom +9dBm when powered by 9V battery |
PAD | -20 dB | Dynamic Range | Better than 114dB(A) for both outputs |
---|---|
Frequency response | 5Hz to 30kHz -1dB |
Power | Phantom power | +48V phantom on Balanced output |
Battery power | 9V - not included |
Consumption from phantom power | 6.5mA |
