3x3.5 HDD into 2x5.25" Bays Backplane from Icy Dock MB453SPF-B

Icy Dock MB453SPF-B 3x3.5" Sata II Hot Swap Aluminium Backplane into 2x5.25" Bays

Thumbnail 1 : 3x3.5 HDD into 2x5.25" Bays Backplane from Icy Dock MB453SPF-B

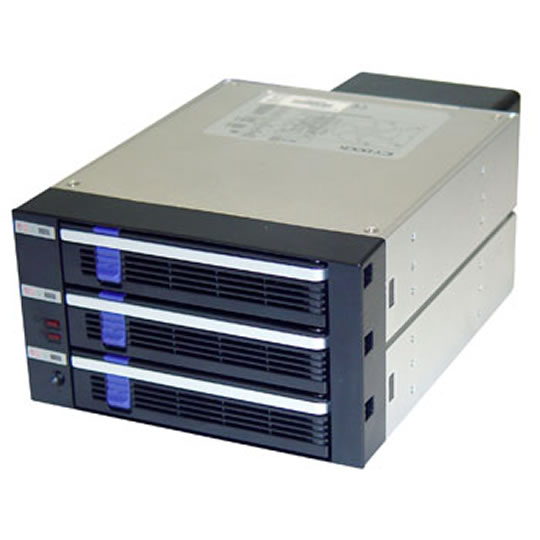

3x3.5 HDD into 2x5.25" Bays Backplane from Icy Dock MB453SPF-B : image 1
Scan code: LN13277 Manufacturer code: MB453SPF-B
3xs Approved
£100.99Item currently awaiting an ETA
Pre Order
Pre order
From £9.07 / month (APR 14.9%)
Monthly Payment: £17.53
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £100.99
Total inc. interest: £105.15
Monthly Payment: £9.07
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £100.99
Total inc. interest: £108.80
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Suggested alternatives
Product Overview Following the tradition of industrial systems' needs for stability, durability toughness and high sensitivities for storage drivers' operating conditions, ICY DOCK introduces the new multiple storage drive module with removable drive trays. Full aluminum built cooling body constructed to fit 3 drives within limited device bay fitting system cases, allowing extra rooms to fit the maximum number of drives to enable mass data storage. It is equipped with a hot swappable fan that may be detached if confined by depth limitations when integrating. It's also easy to exchange when replacement is necessary. No tools or wiring required! Simply swap with a new fan and back to operation. It's both space saving & user friendly for industrialized system solutions Features • Full aluminium construction
• 3 x 3.5" HDD in 2 5.25" bays
• SATA 3.0 Gb/s
• Hot Swappable
• HDD access and status LED
• Supports SATA II device activity signalling or discrete cabling from controller
• LED signalling fan failure and overheating
• Acoustic alarm on fan failure and overheating
• Adjustable alarm temperature
• SATA and Molex power plug
• Swappable fan (quick out mounting)
• Fanless operation possible (37 mm shorter)
Specifications
External Interface 3 x SATA III - 6Gb/s
HDD 3 x SATA III - 6Gb/s
Power Connectors
  • 2 x Molex
  • 1 x SATA
Space Requirement 2 x 5.25" External
Fan(s) Yes
Colour Black/ Blue
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
SCAN

Additional Notes:
"Please be aware any warranty offered in excess of 12 months is at the manufacturer's discretion and may be subject to change without notice."

We recommend that you retain your retail packaging within the first 28 days of purchase.

1 year warranty only, return to Scan subject to manufacturer's warranty.

This Warranty does not cover any damage due to abnormal use or conditions, misuse, neglect, abuse, accident, improper handling or storage, exposure to moisture, unauthorized modifications, alterations, or repairs, improper installation, improper use of any electrical source, undue physical or electrical stress, operator error, non-compliance with instructions.

Customers also bought
TekSpek Guides
PATA -vs- SATA
PATA -vs- SATA
Date Issued: 2nd Jul 2008

Serial ATA, or SATA, is a relatively new storage technology that is now being adopted in computers. It is the successor to Parallel ATA. SATA allows for faster transfers between the hard disk and the system, uses thinner cables and is easier to physically install

Read More

RAID
RAID
Date Issued: 14th Jun 2008

In this guide we will be examining a popular method used for increasing the performance and reliability of your hard drives and data storage

Read More

Reviews
Icy Dock MB453SPF-B 3x3.5" Sata II Hot Swap Aluminium Backplane into 2x5.25" Bays is rated 2.0 out of 5 by 1.
Rated 2 out of 5 by from Difficult to fit and extremely poor documentation I got this item to fit in a machine I built for a friend who needed the data security provided by a RAID array as it allows for a RAID 1 mirror pair and a hot spare. The main reason I chose this unit was the drive failure LED function provided. Unfortunately the documentation says almost nothing about how to use this function, simply labelling the 6-pin header as "HDD FAIL IN" (with no pin information) and stating that the fail signal must be provided by the host (but not what signal is required). It took a lot of searching the Internet to find that the three right hand pins of the header are not used and that the left hand pins need to be connected to 0V to illuminate the respective LED red. Unfortunately the RAID controller I had selected (LSI MegaRAID 9271-4i) used different signalling, using pairs of pins on a header (again badly documented) to drive LED's to indicate failed disks. This mismatch was resolved by using an Opto-Isolator where the isolator LED's were driven by the RAID controller and the isolator phototransistors pulled the drive cage pins to ground. This arrangement got around the problem that the cathode connections on the RAID controller were about 1.8V above the drive cage's ground voltage.
