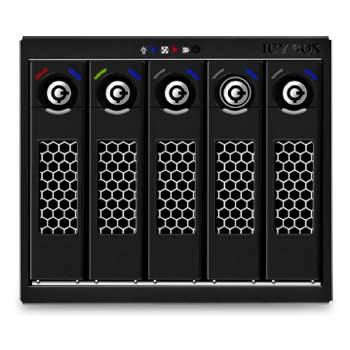

ICY BOX 5x 3.5" SATA/SAS HDD Backplane into 3x 5.25" Bays : image 1

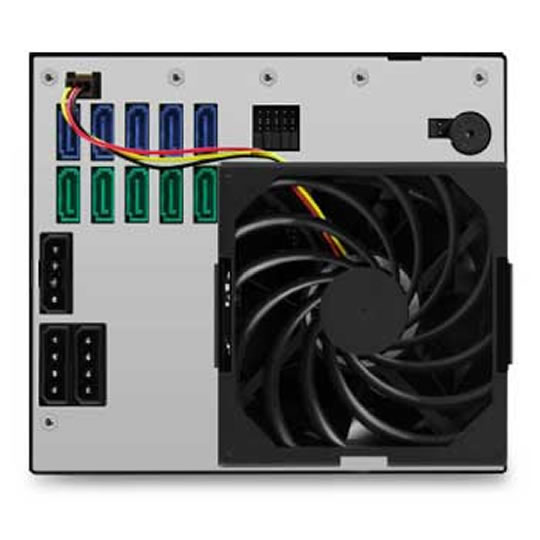

ICY BOX 5x 3.5" SATA/SAS HDD Backplane into 3x 5.25" Bays : image 2
Scan code: LN27712 Manufacturer code: IB-555SSK
£137.99Item currently awaiting an ETA
Pre order
From £12.39 / month (APR 14.9%)
Monthly Payment: £23.95
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £137.99
Total inc. interest: £143.68
Monthly Payment: £12.39
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £137.99
Total inc. interest: £148.65
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview


For the Toughest Server Service

These three HDD backplanes ICY BOX IB-553SK, IB-554SK and IB-555SK have proven themselves operating properly in the tough tasks of a server. They can be operated as both SATA and SAS drives, even as SAS hard disks in dual channel mode. They are extremely stable even with a very high data throughput. Therefore, we recommend it for the demanding duty in RAID systems. As important is the designed temperature control. The aluminum parts dissipate the heat and the 80-mm fan operates reliably and quietly. If necessary, removal and re-attachment of the fan is made without the aid of tools. In case the enclosure does get hot, optical and acoustic signals warn the user. All mechanical components are designed for the heaviest loads. The trays and their locks are a perfect fit and slide without resistance. The aluminum parts are electropolished.


Stress Resistant

The IB-55X Series is built for heavy duty. The best available materials were used in this enclosure which makes it the ideal 3.5" HDD solution for demanding environments. The aluminium parts are by electrolyte sealed and to add to the security, a lock was added.


Cool & Silent

The high quality metal dissipate the created heat by passive convection to the environment. The active convection is done using an 80 mm fan which is replacable without the need of using any tool. The big fan swirls sloly which makes it quieter.


Always up To Date

Up to five 3.5" SATA/SAS HDDs find a home in this backplane. When SAS HDDs are being used, they could be connected in Dual Channel mode. Optical and Auditory signals alert regarding the HDD and fan state. The temperature alarm signal can be set on three possibilities - 45°, 55° or 75°C.




Features
• 5x 3,5" SATA or SAS HDD in 3x 5,25" bay
• 2x host connector (dual channel) for each SAS HDD
• Hard disk capacity not limited
• SATA host interface 3.0Gbit/s
• HDD tray with key lock
• LED for power and HDD access
• Visual LED and audio alarm for fan failure & over-heat
• Access-LED signal from HDD or host selectable
• 80x80mm cooling fan toolless removable
• Audio alarm mute switch button on the front
• Alarm temperature adjustable (45°C, 55°C, 75°C)
• Plug & Play and hot swap
• Support all OS systems
Specifications
External Interface 10 x SATA II - 3Gb/s
HDD 5 x SAS/SATA
Power Connectors 3 x Molex
Space Requirement 3 x 5.25" Internal
Fan(s) No
Colour Black
Additional Information
Scan Code LN27712
Model Number IB-555SSK
GTIN 4250078184416
