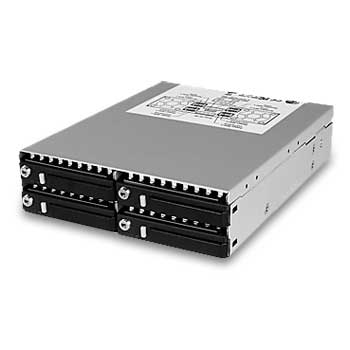

Icy Box IB-2222SSK 5.25" Bay Into 4x2.5" SATA or SAS (8x Port) Dual Channel HDD Backplane

Icy Box IB-2222SSK 5.25" Bay Into 4x2.5" SATA or SAS (8x Port) Dual Channel HDD Backplane

Icy Box
Scan code: LN32039 Manufacturer code: IB-2222SSK Request call
£58.99
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £5.48 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview For Professional Duty

HDDs in the 2.5" form factor are getting more and more popular as their storage capacity is growing. It is only consequent to employ them in servers.

That’s why ICY BOX offers a backplane that fits into a single 5.25" unit and is for four 2.5" SAS or SATA HDDs.

The height of the HDDs may even be 15 mm, for greatest storage capacity. Two host connectors per HDD make possible the operation of SAS HDDs in dual channel mode.

This ICY BOX works reliably even with huge amounts of data being pumped. That's a great recommendation for the hard duty in RAID systems.

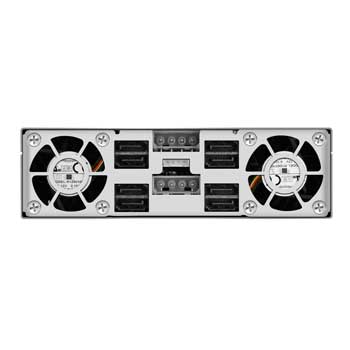

Accordingly demanding is the layout of the cooling. While the aluminium casing cools two 40 mm fans work reliably and silently. Everything is as solid and safe as you might know it from the ICY BOX backplanes fort he "big ones".

Features • 4x 2.5" SAS or SATA HDD in 1x 5.25" bay
• 2x Host Connector (Dual Channel) for each HDD
• Hard disk capacity not limited
• Support HDD height 9.5 - 15 mm
• SATA host interface 3.0 Gbit/s
• HDD tray with key lock
• LED for power, HDD access/HDD failure
• 2x 40x40x10 mm cooling fan
• Plug & Play and Hot Swap
• Support all operating systems
Specifications
Specifications
NAS Form Factor
Bays
Storage (Included) N/A
Max. Storage Capacity
HDD Interface 4 x SAS/SATA 3Gb/s
HDD Form Factor
Internal Flash Memory No
Internal Flash Memory Capacity
DOM Module No
DOM Capacity
CPU
CPU Model
Cores
CPU Speed
RAM Memory Included
RAM Memory Type
Max. RAM Memory Supported
Cache Drive Interface
Included Cache Drive Capacity
Included Cache Drive Type
LAN Type N/A
Expansion Slots
External Connectivity 8 x SATA 3Gb/s
Cooling
Noise Level
PSU Type
PSU Wattage
Max. Power Consumption
Dimensions 180 x 146 x 42 (WxHxD mm)
Weight 1.3 kg
