Scan code: LN101172 Manufacturer code: NVR-108H-D/8P

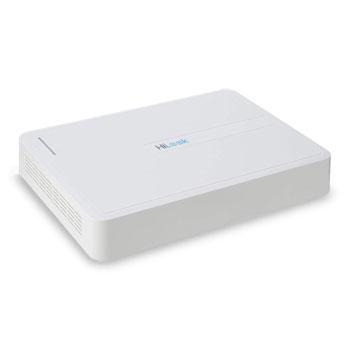

Hikvision HiLook 8 channel NVR with 8 Port POE

HiLook NVR-108H-D/8P 4MP Max 8Ch NVR H265+ HDMI/VGA PoE

Thumbnail 1 : Hikvision HiLook 8 channel NVR with 8 Port POE
Hikvision HiLook 8 channel NVR with 8 Port POE : image 1
Scan code: LN101172 Manufacturer code: NVR-108H-D/8P
RRP: £100.50
£98.40
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 21st Oct 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview he HiLook by Hikvision 8 Channel PoE 4 Mega-Pixel NVR is a 8 channel IP CCTV network video recorder that supports 8 plug-and-play IP PoE powered IP cameras at up to 4 mega-pixel resolution. The NVR-108H-D/8P supports H.265 compression when used with compatible H.265 IP network cameras. This reduces bandwidth and reduces the storage required enabling recorded footage footage to be stored for much longer than standard recorders.

Please Note: This Unit requires a Hard Drive Which must be purchased separately

The 8 Channel PoE 4 Mega-Pixel NVR has a HDMI and VGA output that can be connected to a monitor and used to display live images, recordings or configuration menu's. The NVR can display live images on a screen, monitor or TV from one 4 megapixel camera at a time or two 2 megapixel cameras at a time. The HiLook has 8 PoE enabled Ethernet ports which can be used to connect up to 4 plug-and-play IP network cameras. This delivers power and video over a single cable making installation quick and simple.

The NVR-108H-D/8P supports peer-to-peer technology for instant connection to the Internet with requiring any complex router configuration. Live images and recorded footage can be viewed from anywhere using the easy to use app which is available for most smart devices.

Video Input and Transmission
Connectable to the third-party network cameras
Up to 8 network cameras can be connected
Compression and Recording
H.265+/H.265 compression effectively reduces the storage space and costs
Full channel recording at up to 4 MP resolution
HD Video Output
HDMI/VGA output at 1080p resolution
Storage and Playback
1-ch playback at 4 MP resolution or 2-ch at 1080p resolution
1 SATA hard disk can be connected with 6TB capacity
Smart Function
Supports line crossing and intrusion detection
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Network & Ethernet Access
Hik-Connect for easy network management
100 Mbps Ethernet network interface
8 independent 100 Mbps built-in switch network interfaces

Features Video/Audio Input
IP video input: 8-ch
IP Video input: Up to 4 MP resolution
Network
Incoming bandwidth: 60 Mbps
Outgoing bandwidth: 60 Mbps
Video/Audio Output
LCD/HDMI/VGA output resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording Resolution: 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Decoding
Decoding format: H.265+/H.265/ H.264+/H.264
Capability: 1-ch @ 4 MP / 2-ch @ 1080p
Live view / Playback: 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Hard Disk
SATA: 1 SATA interface for 1 HDD
Capacity: Up to 6TB capacity for each HDD
External Interface
Built-in switch network interface: 8 independent 100 Mbps built-in switch network interfaces
Network Interface: 1 RJ-45 10 / 100 Mbps selfadaptive
Ethernet interface
USB Interface: 2, USB2.0
POE
Supported Standard: AF and AT
Interface: 8 independent 100 Mbps PoE network interfaces
Max. Power: 75W
General
Power Supply: 48 VDC
Consumption(without hard disk and POE): = 90 W
Working Temperature: -10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity: 10 % ~ 90 %
Chassis: 385 mm chassis
Dimensions: 285 × 215 × 48 mm
(11.2" × 8.5" × 1.9")
Weight(without HDD): = 1 kg (2.2 lb)
