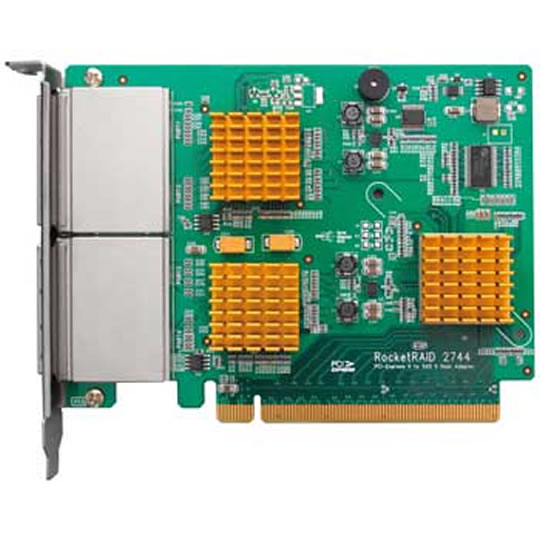

Highpoint RR2744, 16-port RAID Controller

Highpoint RocketRAID 2744 16 port 6Gb/s SATA/SAS 16x External Mini-SAS (SFF-8088)

Scan code: LN35732 Manufacturer code: RR2744 Request call
End Of Life
High End
Product Overview
• Online capacity expansion (OCE) and Online RAID level migration (ORLM)
• RAID Array Roaming
• Unplug/Remove RAID array
• Hot key (ctrl-h) boot-up RAID manager via BIOS
• Firmware update while running the Operating System
• Verify RAID Array for Bad Sectors and Parity Check
• Task Scheduler
• Automatic RAID rebuild
• Automatic drive (insert / removal) detection
• Hot Spare Disk
• Staggered Drive Spinup
• Rebuild Priority (Low - Highest)
• Spin Down Idle Mode
• Hot Swap and Hot plug
• Bad sector repair and remapping to reduce dropped drives
• Multiple RAID array
• Multiple Logical Drive
• 64bit LBA support greater than 2TB per volume
Features PCI-Express Bus Lanes 2.0 x16
SAS/SATA 6Gb/s RAID Controlle Marvell 88SE9485
SAS/SATA Interface SAS 6Gb/s
Port Count External 16 SAS/SATA Devices
Connector Type External Mini-SAS (SFF-8088)
RAID Level 0, 1, 5, 10, 50 and JBOD
Form Factor Full Height
Alarm/Buzzer Yes
Activity/Failure LED No
SAF-TE Connector Yes
Board Dimensions 4.21”L x 5.51”W

• SMTP for email notification
• Alarm / Buzzer alerts for drive failure
• SES-2 enclosure management (Failed, SMART (SHI))
• Enclosure management support I2C
• Hard Drive LED indicators (Activity and Failed)
• SHI (Storage Health Inspector - Drive analysis from S.M.A.R.T)
• Event Log
