Highpoint RocketRAID 2314(RR2314) 4 channel External PCI-e x4 to SATA II RAID controller card
End Of Life
Highpoint RocketRAID 2314(RR2314) 4 channel External PCI-e x4 to SATA II RAID controller card
Scan code: LN18088 Manufacturer code: Rocket Raid 2314LF
End Of Life

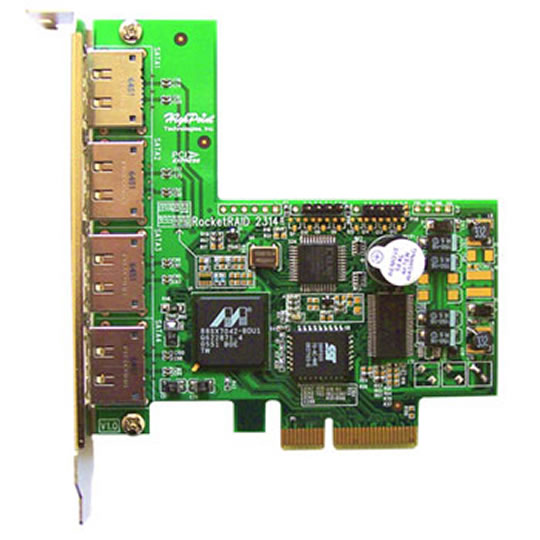

Highpoint RocketRAID 2314(RR2314) 4 channel External PCI-e x4 to SATA II RAID controller card : image 1
  • Thumbnail 1 : Highpoint RocketRAID 2314(RR2314) 4 channel External PCI-e x4 to SATA II RAID controller card
End Of Life

Highpoint RocketRAID 2314(RR2314) 4 channel External PCI-e x4 to SATA II RAID controller card

Highpoint RocketRAID 2314(RR2314) 4 channel External PCI-e x4 to SATA II RAID controller card
MORE INFO
MORE INFO

Scan code: LN18088 Manufacturer code: Rocket Raid 2314LF
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

Product Overview RocketRAID 2314 Host Adapter
Initially SATA was designed as an internal or inside-the-box interface technology, bringing improved performance and new features to internal PC or consumer storage. Creative designers quickly realized the innovative interface could reliably be expanded outside the PC, bringing the same performance and features to external storage needs instead of relying on USB or 1394 interfaces.
Features • PCI-e x4 (x8 and x16) slot compatible
• 4 External eSATA II ports at 3Gb/s per port
• Up to 4 SATA II or SATA I Hard Drives
• Support RAID 0, 1, 5, 10, and JBOD
• Compatible with eSATA enclosures
• Native Command Queuing (NCQ) for improved random performance
• Online Capacity Expansion (OCE) and Online RAID Level Migration (ORLM)
• Staggered drive spin up
• BIOS Booting (INT13) to RAID array
• Quick and Background initialization for instant RAID access
• Write through and write back cache for RAID arrays
• Hot swap and hot spare
• Online array roaming
• Automatic detect drive to rebuild degraded RAID
• S.M.A.R.T array monitoring for hard drive status and reliability
• 64bit LBA for RAID arrays greater than 2TB
• Web browser-base software (Web GUI)
• Command Line Interface (CLI)
• SMTP email notification for events and error reporting
• Remote array management through (Web GUI, RAID GUI and CLI)
• Support Windows (XP, 2000, Server 2003, x64 Edition and Vista), Linux, FreeBSD and Mac OS X
• RoHS Compliant
