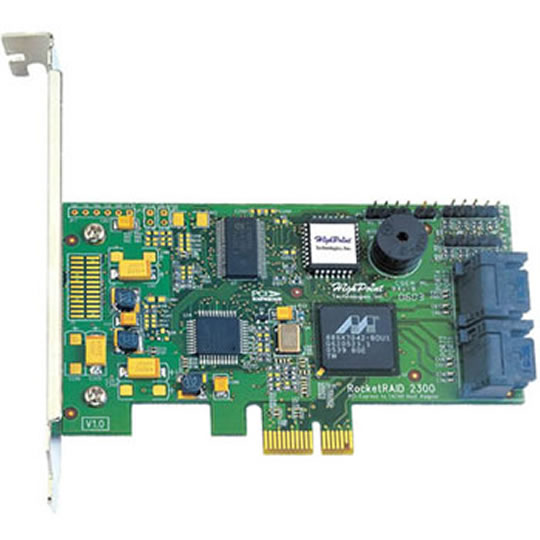

Highpoint RocketRAID 2300 (RR2300) 4 channel Internal PCI-e x1 to SATA II RAID HBA

Highpoint RocketRAID 2300 (RR2300) 4 channel Internal PCI-e x1 to SATA II RAID controller card

Highpoint
Scan code: LN14409 Manufacturer code: RR2300 Request call
£137.99Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
review Entry Level
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview The HighPoint RocketRAID 2300 PCI Express to SATA II RAID Controller is the next generation for high performance computing solutions utilizing the latest interconnect technology PCI-Express.

The RocketRAID 2300 is set to give much faster and improved I/O and supports features that are critical for high performance computing, high end workstation and enterprise storage server environments.

PCI Express delivers data transfer in both directions simultaneously with its serial data transfer system and brings with it higher clock speeds.

Each expansion slot in PCI Express can have several channels which gives plenty of room for expansion. There is also the same data rate in both directions providing the performance and scal-ability for the next decade. Features The HighPoint RocketRAID 2300 Controller offers 4 internal ports that combine high-performance storage connectivity of Serial ATA with HighPoint's advanced RAID features, includi-ng, Online Capacity Expansion, Online RAID Level Migration (OCE/ORLM) and HighPoint's RAID Management software. The RocketRAID 2300 supports advanced RAID levels 0, 1, 5, 10 and JBOD for maximum configuration flexibility.

HighPoint offers the broadest range of support for all major operating systems to ensure OS and hardware server comp-atibility. Drivers are available for all major operating systems, including Windows, Linux, FreeBSD and Mac OS X. Open source is also providedfor Linux and FreeBSD.

Specification
Host Side Interface: PCI-Express x1(x4, x8 and x16 slot compatible)
Device Interface: Serial ATA
Number of Channels: 4 Device Channels
Allowed Disk Connection: Four (SATA II or SATA I Hard Disks)
Supported RAID Levels: RAID 0, 1, 5, 10, and JBOD
Operating Systems Support: Windows, Windows x64 Editions, Linux (open source), FreeBSD (open source) and Mac OS X
RAID Management Tool: BIOS Browser-based RAID Management CLI
Some Highlighted Features: Hot swap/hot spare, Single RAID Cross Adapter, 64-bit LBA support for over 2TB supportt, Drive activity / Failed LED, SAF-TE chassis management, SMTP support for email notification.
Specifications
Specifications
Ports Total
Ports Internal
Ports External
Connectors 4 x SATA 1.5/3.0 Gb/s
Interface PCIe x1
JBOD No
RAID Support
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Low Profile Compatible No
Cables Inc.
Cache Memory
Notes
