Grass Valley ADVC G1 Storm 3G

Grass Valley ADVC G1 Storm 3G - HD / SDI based, multi format Editing with HDMI monitoring

Grass Valley
Scan code: LN36861 Manufacturer code: CAN-STORM3G Request call
£1,230.49Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
3xs Approved High End
Free Delivery Delivery options Free By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview STORM 3G is designed for video professionals who want one solution for both SDI based editing and tapeless workflows, with the capability to preview their projects on affordable HDMI monitors.

Based on the PCI Express form factor, the STORM 3G solution includes EDIUS nonlinear editing software, 3G HD-SDI inputs and outputs and an HDMI output for full resolution, real-time preview monitoring. Embedded HDMI audio provides high quality audio monitoring. It's a premium, hihg powered solution for multi format editing. Timecode input and output is supported via the RS-422 port for accurate editing from field logs. The reference input supports both analogue blackburst and tri-level sync. External VTR ingest can be controlled via the RS-422 port and the optional VTR for direct playout from the workstation.

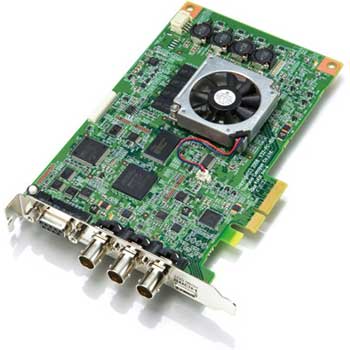

The STORM 3G board can handle any mix of high and standard definition (HD and SD) video content, unlimited video, audio, title and graphics layers and any combination of real time effects. It also offers real time, full resolution, full quality HD and SD video outputs.

Data Sheet Features • 3G SDI input and output with embedded audio and timecode
• HDMI output for full resolution, real time monitoring from the included EDIUS NLE software
• Embedded HDMI audio output for high quality audio monitoring
• Video and audio output stays perfectly in sync, with editing windows for accurate edting and trimming
• Reference input supports bi-level or tri-level sync
• RS-422 master or slave machine control support *
• Edit any mix of SD and HD resolution video content together in real time
• Works with many different native video formats, including AVCHD, AVC-Intra, MPEG-2, uncompressed, and more
• Supports newer file based formats including Infinity JPEG 2000, XDCAM HD and XDCAM EX, P2 (DVCPRO and AVC-Intra), and GFCam
• Compatible with Windows 7 (32/64 bit), Windows Vista (32/64 bit) and Windows XP (32 bit) operating systems
* Slave functions require the EDIUS VTR Emulation option, available separately
Specifications
Specifications
TV Type
Interface PCIe (x4)
Connectivity
  • 1 x 3G-SDI (In)
  • 1 x 3G-SDI (Out)
  • 1 x Mini HDMI (Out)
  • 1 x Ref In (BNC)
  • 1 x RS-422
Supported TV Standards
HDTV Compatible Yes
Remote Control No
Media Recorder No
Media Center Compatible No
Teletext No
Radio No
Dual Tuner Compatible No
Package Type Retail
