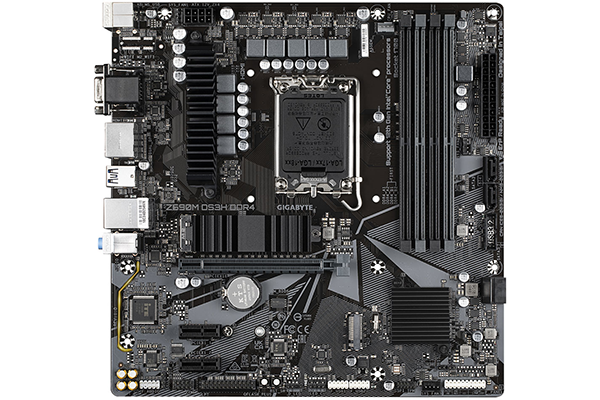

Gigabyte Intel Z690M DS3H DDR4 MicroATX Motherboard

Gigabyte Z690M DS3H DDR4, Intel Z690, S 1700, DDR4, PCIe 4.0, 2x M.2, Realtek 2.5GbE, USB 3.2 Gen2, HDMI/VGA/DP, mATX

Thumbnail 1 : Gigabyte Intel Z690M DS3H DDR4 MicroATX Motherboard Thumbnail 2 : Gigabyte Intel Z690M DS3H DDR4 MicroATX Motherboard Thumbnail 3 : Gigabyte Intel Z690M DS3H DDR4 MicroATX Motherboard Thumbnail 4 : Gigabyte Intel Z690M DS3H DDR4 MicroATX Motherboard
Scan code: LN123317 Manufacturer code: Z690M DS3H DDR4
Order now and get it tomorrow, Mon 30th May
£139.99
Get it Tomorrow, 30 MayIn stock
From £12.04 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £12.04
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £139.99
Total inc. interest: £144.39
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 30th May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Z690M Intel DS3H DDR4 MicroATX Motherboard from Gigabyte

Z690M

immersive viewing and gamingWith technology moving so fast, GIGABYTE still keep up with the latest trends and provide customers with advanced features and latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimised performance for gaming.

Intel Z690Chipset

1700CPU Socket

MicroATXForm Factor

The Latest Memory Technology

4K Recording

DDR4 XMP Up to 5333MHz and BeyondGIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard. ​

Ideal Cooling for your Memory

4K Recording

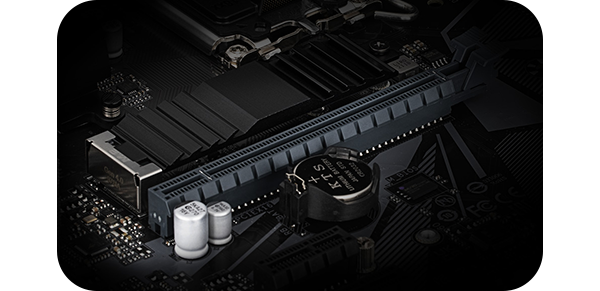

GIGABYTE Ultra-Efficient M.2 Thermal GuardWith durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. ​

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Versatile Connectivity Options

4K Recording

FOR every connectionGIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity. ​


back

2X Faster than everAdoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.

Audio you can be Truly Immersed In

back

High-End Audio CapacitorsGIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. They also feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Updates Made Easy

down

Step 1Plug the 24pin & 8pin power supply cable into the motherboard.

down

step 2Download and unzip the motherboard BIOS file and rename to "gigabyte.bin", save it to a USB flashdrive, then plug it into the Q-Flash USB port.

down

step 3Press the Q-Flash Plus button, and the motherboard will start updating the BIOS automatically.

Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go! ​

Specifications
Core Specifications
Edition Z690M DS3H DDR4
Form Factor MicroATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 5333(0C)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.2
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support N/A
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 2 x M.2
  • 1 x Parallel Port (LPT) Header
  • 1 x Q-Flash Plus Button
  • 1 x Reset Button
  • 1 x RGB (RGBW) LED Strip Header
  • 1 x S/PDIF-Out Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 3 x System Fan header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Realtek (2.5GbE LAN)

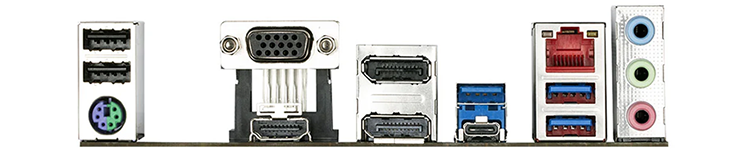

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x D-Sub (VGA)
  • 2 x DisplayPort 1.2
  • 1 x HDMI 2.0
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN123317
Model Number Z690M DS3H DDR4
GTIN 4719331830625
