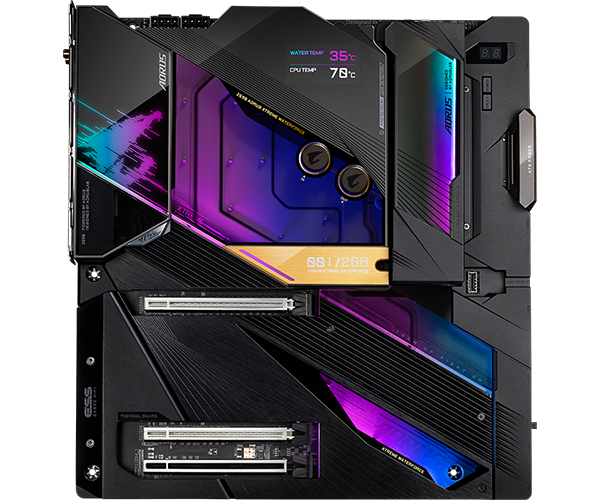

Intel Z690 AORUS XTREME WATERFORCE PCIe 5.0 E-ATX Motherboard from Gigabyte

Z690 AORUS

THE NEW ERA OF GAMING Rule supreme with the Z690 AORUS gaming motherboards. The new era of gaming platforms continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best gaming performance.

Intel® Z690Chipset

LGA 1700CPU Socket

12th Gen Intel®Compatible Processors

E-ATXForm Factor

The Latest Memory Technology

4K Recording

XTREME MEMORYGIGABYTE Z690 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability. ​

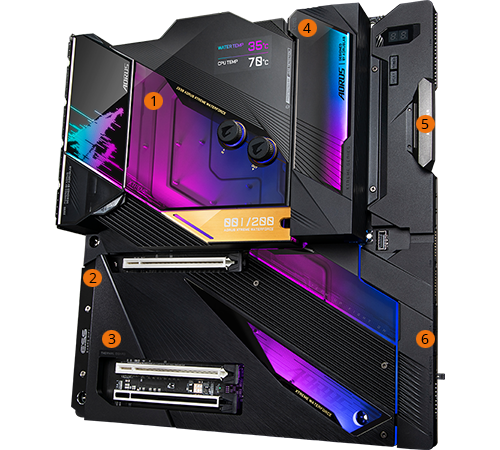

Superior Thermal Design

4K Recording

1All-In-One Monoblock

2NanoCarbon Baseplate

3Enlarged M.2 thermal Guard

4Type-C Connector for Waterblock

5Right-Angled Connectors

6Smart Fan 6

Versatile Connectivity Options

4K Recording

FOR every connectionGIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity. ​


back

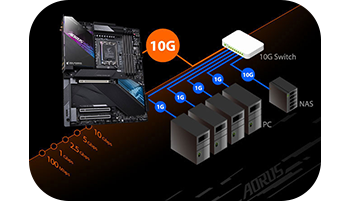

AQUANTIA® 10GbE BASE-T NetworkingThe AQUANTIA® AQC113C is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T/ 100BASE-TX Ethernet Controller which is able to provide up to 10 GbE network connectivity, with 10 times faster transfer speeds compared to general 1GbE networking and is perfectly designed for media centers, workstations and gamers.


back

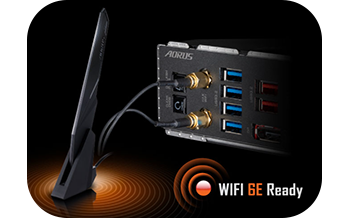

intel 802.11ax WIFI 6EIntel's latest Wireless solution 802.11ax WIFI 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Audio you Can be Truly Immersed In

4K Recording

ESSential HEX USB DACESSential HEX USB DAC reduces the pre-ringing and provides higher reverberation strength to achieve width and depth on the sound stage. The sound is clearly portrayed making directional sounds clearer and more accurate when playing FPS games.

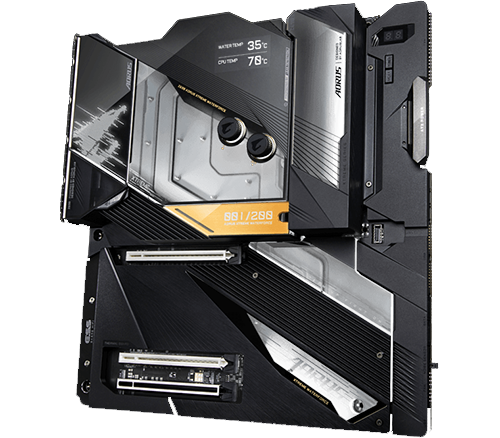

Make it Your Own

4K Recording

impressive PERSONALIZATIONNow offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model. ​

Updates Made Easy

down

Step 1Plug the 24pin & 8pin power supply cable into the motherboard.

down

step 2Download and unzip the motherboard BIOS file and rename to "gigabyte.bin", save it to a USB flashdrive, then plug it into the Q-Flash USB port.

down

step 3Press the Q-Flash Plus button, and the motherboard will start updating the BIOS automatically.

Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go! ​

Specifications
Core Specifications
Edition AORUS XTREME WATERFORCE
Form Factor E-ATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR5
Memory Channel
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
Max. Memory Capacity
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors Thunderbolt
Internal Connectivity
Expansion Slots
  • 4 x M.2 PCIe
  • 1 x PCIe 3.0 x4
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 5.0 x8
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
Rear I/O Connectors
  • 2 x Thunderbolt port
  • 10 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled Yes
Cooling
QPI Speed N/A
Board Dimensions 305 x 285 mm
Note
Additional Information
Scan Code LN120834
Model Number Z690 AORUS XTREME WATERFORCE
GTIN 4719331830366
