Scan code: LN122611 Manufacturer code: Z690 AORUS TACHYON

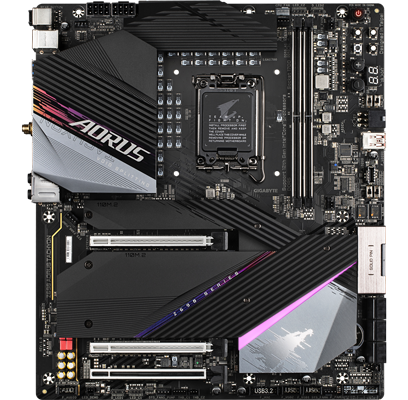

Gigabyte Intel Z690 AORUS TACHYON DDR5 E-ATX Motherboard

Gigabyte Z690 AORUS TACHYON, Intel Z690, S 1700, DDR5, SATA3, PCIe 5.0, 4x M.2, 2.5GbE, USB 3.2 Gen2x2, EATX

Thumbnail 1 : Gigabyte Intel Z690 AORUS TACHYON DDR5 E-ATX Motherboard Thumbnail 2 : Gigabyte Intel Z690 AORUS TACHYON DDR5 E-ATX Motherboard Thumbnail 3 : Gigabyte Intel Z690 AORUS TACHYON DDR5 E-ATX Motherboard Thumbnail 4 : Gigabyte Intel Z690 AORUS TACHYON DDR5 E-ATX Motherboard
Scan code: LN122611 Manufacturer code: Z690 AORUS TACHYON
£539.99
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
From £15.00 / month (APR 0%) or 0% for 4 months
Monthly Payment: £45.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £539.99
Total inc. interest: £539.99
Monthly Payment: £22.50
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £539.99
Total inc. interest: £539.99
Monthly Payment: £15.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £539.99
Total inc. interest: £539.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £13.49 / month (APR 15.9%)
Delivery Options
  • By DPD On 24th Jan to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Z690 AORUS Tachyon 12th generation Intel E-ATX Overclocking Motherboard

Z690 Tachyon from Gigabyte

Built by overclockers for overclockers If your a fan of overclocking & pushing the boundaries of modern system performance. Z690 AORUS TACHYON is the pinnacle of overclocking motherboard completely designed by and for overclockers, who are continuously seeking to break unimaginable performance limit. Its specialized VRM design, memory layout trace and built-in overclocking buttons and switches enable overclocking enthusiasts to unleash full potential of latest generation Intel Core processor. The Z690 Tachyon boasts a robust 15+1+2 power phase design, exclusive onboard overclocking kit combined with incredible DDR5 overclocking for extreme overclocking performance, WiFi 6E compatibility, PCIe 5.0 support, a fully comprehensive rear IO, Gen 4 m.2 support with passive thermal dissipation and full support for RGB Fusion 2.0 software giving you full control over your lighting ecosystem. If your looking to push boundaries, do it with Gigabyte.

Intel Z690Chipset

LGA 1700CPU Socket

12th Gen IntelCompatible Processors

E-ATXForm Factor

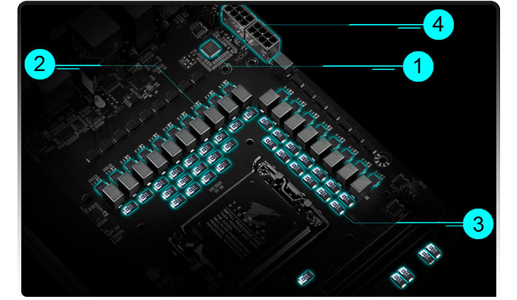

Incredible VRM Power Design

4K Recording

1. Digital PWM ControllerVRM design uses RENESAS RAA229131 PWM controller that directly drives 15 phases for the highest efficiency.

2. 105A Power StageEach vcore VRM phase uses 105A RAA220105 Power stage for maximum current capacity under extreme overclocking.

3. Tantalum Capacitor MatrixVRM design uses 100% full tantalum polymer capacitors for better transient response and less mechanical interference with extreme overclocking cooling device.

4. Dual CPU Power ConnectorsDual 8 pin CPU power connectors with metal shielding provide maximal current input to processor.

Xtreme Memory Overclocking

4K Recording

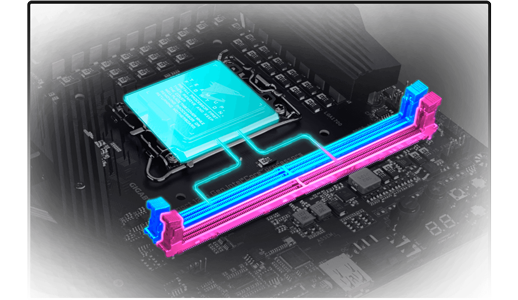

Unlock DDR5 VoltageGIGABYTE exclusive circuit design unlocks Native DDR5 voltage control, With 2-DIMM daisy chain memory trace layout, Z690 AORUS TACHYON can achieve the shortest memory DIMM distance between CPU, therefore reach the highest memory clocks and the lowest latency. Plus with DDR5 Booster

A Plethora of Storage Options

4K Recording

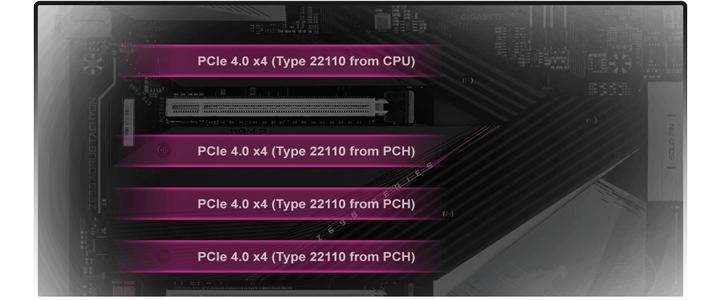

Gen 4 Storage Ready Bring your storage up to speed, with support for the latest gen 4 storage drives, capable of reaching a whopping 64Gb/s of theoretical bandwidth, 2x the speed of the previous generation, but don't fret it remains backwards compatible so will still support the drives you have if you wish to keep them.

Cutting-Edge Technologies

4K Recording

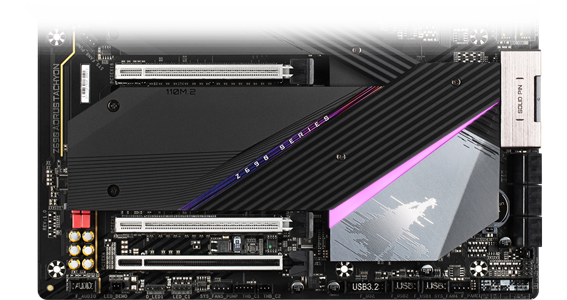

PCIe 5.0 DESIGN GIGABYTE Z690 Motherboards are ready to work with the upcoming PCIe 5.0 devices which are expected to experience double bandwidth than the current PCIe 4.0 devices. To reach the high speed and maintain good signal integrity, Gigabyte R&D uses the low impedance PCB to provide the maximum performance.

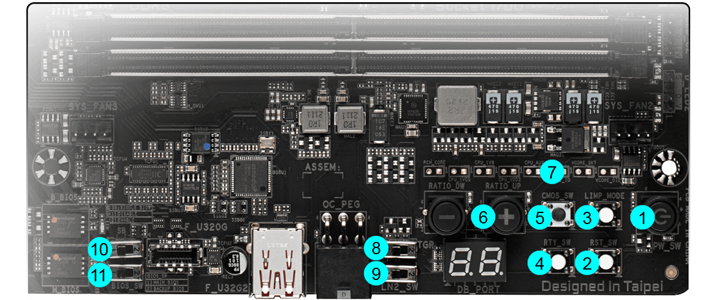

Exclusive Gigabyte Overclocking Kit

4K Recording

1. Power Button Power On/Off system.

2. Reset ButtonReboot system.

3. Limp ModeAllows the system to automatically reboot with default or safe settings without having to clear CMOS settings first. This is useful in situations when users fail to boot up the system with their self-defined memory parameters.

4. Cold Reset ButtonUse this button to force your system to reboot. This is usually used if a CPU crash or memory errors occur or warm reset doesn't work when tuning your system settings. Hitting this button to force the system to shutdown and boot again.

5. Clear CMOSClear BIOS setting.

6. CPU Ratio SwitchRaise or lower CPU ratio manually.

7. Voltage MeasurementUse multimeter to contact those points to measure different voltage value.

8. OC Trigger SwitchThis switch can be used to lower the CPU frequency to cool down the CPU temperature before running a benchmark without having to change any software settings. Instantly setting the TGR switch back to its default position when the benchmark begins will revert the CPU frequency to the original value.

9. Enhanced LN2 ModeDependent on the LN2 Mode Switch setting (unavailable if LN2_SW is set to 1). Enabling this switch will allow the CPU to boot up at a temperature as low as possible.

10. SB SwitchThe SB switch allows enabling or disabling of the Dual BIOS function.

11. BIOS SwitchThe BIOS switch (BIOS_SW) allows users to easily select a different BIOS for boot up or overclocking, helping to reduce BIOS failure during overclockin

Specifications
Core Specifications
Edition
Form Factor
CPU Socket
Chipset
RAM Memory Support
Memory Type
Memory Channel
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
Max. Memory Capacity
Audio
Audio
Graphics Support
Primary GPU Interface None
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
SATA Support N/A
RAID Support via
Storage Mode Support
Internal I/O
External Connectivity
Network Interface Type
Network Chip/Modules
Rear I/O Connectors
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions
Note
Additional Information
Scan Code LN122611
Model Number Z690 AORUS TACHYON
GTIN 4719331830380
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
