Scan code: LN120822 Manufacturer code: Z690 AORUS MASTER

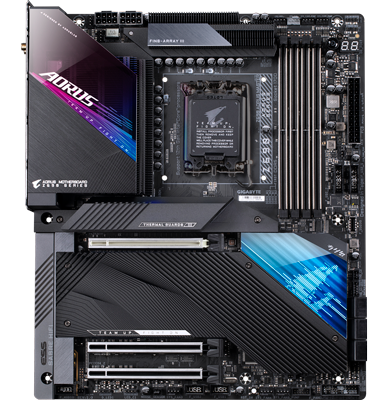

Gigabyte Intel Z690 AORUS MASTER PCIe 5.0 ATX Motherboard

Gigabyte Z690 AORUS MASTER, Intel Z690, S 1700, DDR5, PCIe 5.0, SATA3, 5x M.2, 10GbE, ax WiFi/BT, USB 3.2 Gen 2, ATX

Thumbnail 1 : Gigabyte Intel Z690 AORUS MASTER PCIe 5.0 ATX Motherboard Thumbnail 2 : Gigabyte Intel Z690 AORUS MASTER PCIe 5.0 ATX Motherboard Thumbnail 3 : Gigabyte Intel Z690 AORUS MASTER PCIe 5.0 ATX Motherboard Thumbnail 4 : Gigabyte Intel Z690 AORUS MASTER PCIe 5.0 ATX Motherboard
Scan code: LN120822 Manufacturer code: Z690 AORUS MASTER
£444.98Item due today
Due today
From £18.54 / month (APR 0%) or 0% for 4 months
Monthly Payment: £37.09
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £444.98
Total inc. interest: £444.98
Monthly Payment: £18.54
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £444.98
Total inc. interest: £444.98
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £11.11 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Intel Z690 AORUS MASTER PCIe 5.0 E-ATX Motherboard from Gigabyte

Z690 AORUS MASTER

THE NEW ERA OF GAMING Rule supreme with the Z690 AORUS gaming motherboards. The new era of gaming platforms continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best gaming performance.

Intel® Z690Chipset

LGA 1700CPU Socket

12th Gen Intel®Compatible Processors

E-ATXForm Factor

A New Age of PC Building

4K Recording

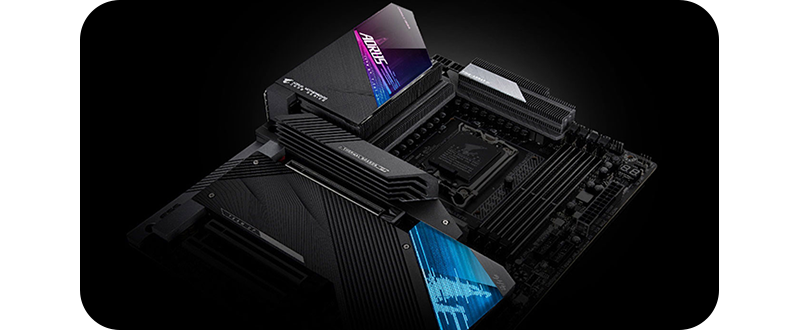

UNPARALLELED PERFORMANCEWith technology moving so fast, GIGABYTE still keep up with the latest trends and provide customers with advanced features and the latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solutions, the latest storage standards and outstanding connectivity to enable optimized performance for gaming.​

The Latest Memory Technology

4K Recording

XTREME MEMORYGIGABYTE Z690 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability. ​

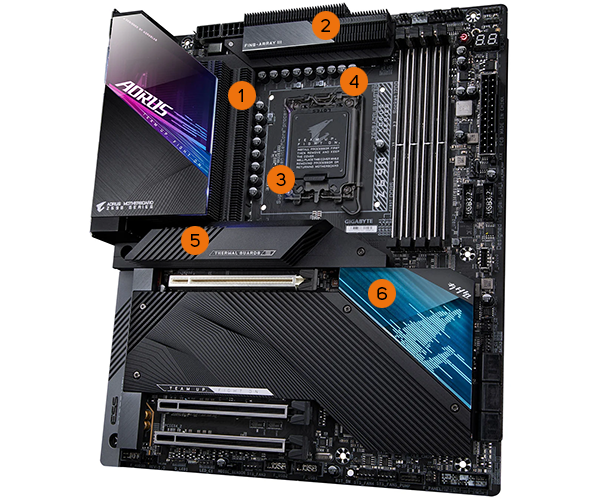

Superior Thermal Design

4K Recording

1Direct Touch Heatpipe II

2Fins-Array III with NanoCarbon Coating

32x Copper PCB

49 W/mK Thermal Pad

5M.2 Thermal Guard III

6Enlarged Thermal Guard

Versatile Connectivity Options

4K Recording

FOR every connectionGIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity. ​


back

AQUANTIA® 10GbE BASE-T NetworkingThe AQUANTIA® AQC113C is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T/ 100BASE-TX Ethernet Controller which is able to provide up to 10 GbE network connectivity, with 10 times faster transfer speeds compared to general 1GbE networking and is perfectly designed for media centers, workstations and gamers.


back

intel 802.11ax WIFI 6EIntel's latest Wireless solution 802.11ax WIFI 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Audio you can be Truly Immersed In

down

ESS SABRE reference DAC ES9118ESS SABRE reference DAC (ESS 9118)
Hyperstream Dynamic Range (SNR 125dB)
High-Res music (32bit, 192KHz PCM)
Super low THD+N (THD+N -112db)

down

Realtek ALC1220Paired with Realtek's latest ALC1220 Codec, playback for surround sound audio and DSD enabled music are easier than ever.

down

Audiophile Grade CapacitorsTo ensure a studio-quality experience, WIMA and Nichicon Fine Gold capacitors are used to provide power to the overall system.

down

Precision Audio StreamProvides precise time triggers to Digital-Analog Converters. High resistance to corrosion and oxidation.

down

Hi-Res AudioHi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.

down

DTS :X® UltraRecreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio.

Make it Your Own

4K Recording

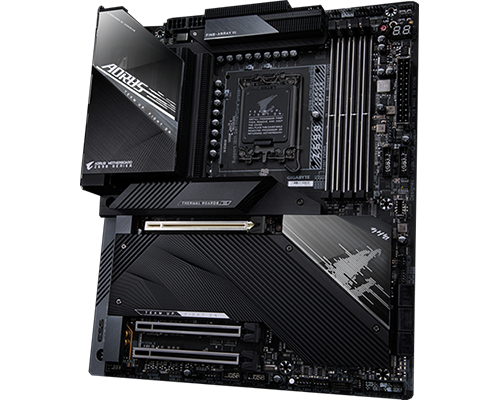

impressive PERSONALIZATIONGIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality. ​

Updates Made Easy

down

Step 1Plug the 24pin & 8pin power supply cable into the motherboard.

down

step 2Download and unzip the motherboard BIOS file and rename to "gigabyte.bin", save it to a USB flashdrive, then plug it into the Q-Flash USB port.

down

step 3Press the Q-Flash Plus button, and the motherboard will start updating the BIOS automatically.

Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go! ​

Specifications
Core Specifications
Edition AORUS MASTER
Form Factor ATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
Max. Memory Capacity
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors DisplayPort
Internal Connectivity
Expansion Slots
  • 2 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 10G LAN
Network Chip/Modules
  • 1 x Aquantia GbE LAN (10Gb/5Gb/2.5Gb/1000Mb/100Mb)
  • 1 x Intel®Wi-Fi 6E AX210 + BT5.2

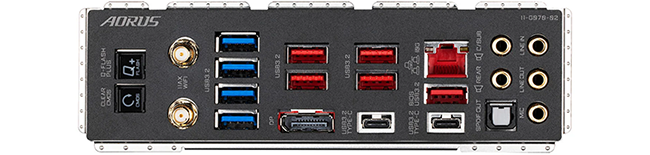

Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Q-Flash Plus Button
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 5 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 260 mm
Note
Additional Information
Scan Code LN120822
Model Number Z690 AORUS MASTER
GTIN 4719331827519
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
