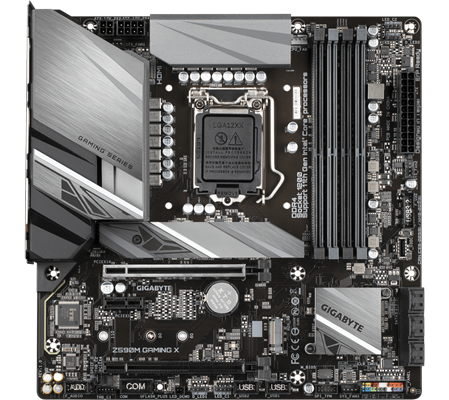

Gigabyte Z590M GAMING X 11th Generation Intel Micro-ATX Motherboard
A Solid Foundation for Your System Here to herald the arrival of the latest generation of Intel CPUs is the Gigabyte Z590M GAMING X motherboard providing top-tier performance in a smaller form factor, in order to squeeze every ounce of performance from the new 11th Generation Intel CPUs this motherboard boasts an updated digital power design, full PCIe Gen 4 design, a comprehensive cooling solution with integrated IO armour to enhance heat dissipation, Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards, 2.5GbE GAMING LAN, and support for Gigabytes RGB Fusion 2.0 Software to control and synchronise lighting across compatible products. The Gigabyte Z590M GAMING X is perfect for daily users and mainstream enthusiasts as well as core gamers that are looking to push the modern boundaries of performance. Start with a strong foundation, now is your chance.
Deliver Maximum Power To Power Hungry Components
Digital PWM Controller
12+1 Phase Smart Power Stages
8 + 4 Solid Pin Connectors

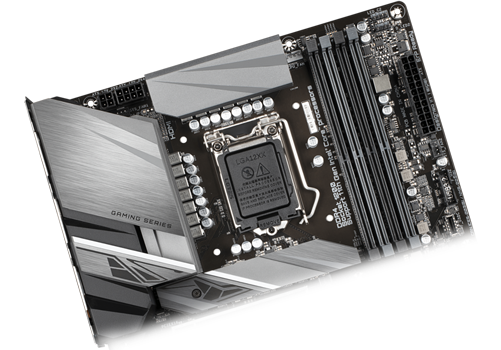

Pure Digital Power DesignZ590M GAMING X motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new Intel® 11th Gen CPU.
Maximum Performance with PCIe 4.0
SUPPORT FOR DDR4 XMP UP TO 4800MHZ AND BEYONDGigabyte is offering a tested and proven platform that ensures proper compatibility with profiles up to 4800MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
PCIe 4.0 Hardware ReadyThe Z590M Gaming X is fitted with a single PCIe 4.0 X16 slot giving you access to the latest generation of data transfer speeds.

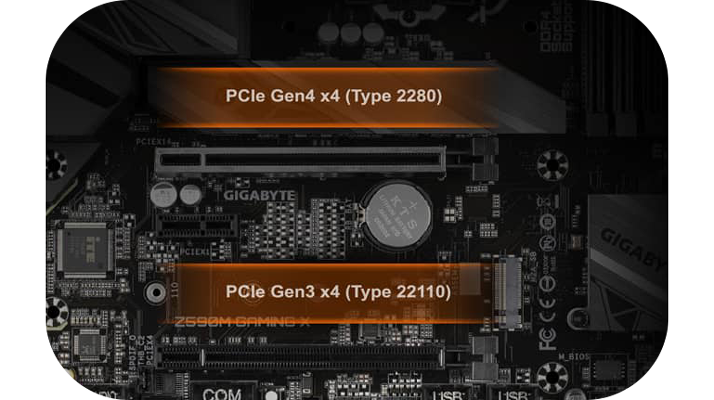

Dual PCIe 4.0/3.0 x4 M.2 ConnectorsGigabyte Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximise their Systems' potential. The Z590M GAMING X boasts 1x PCIe 4.0 x4 m.2 slot giving you up 64 GBs theoretical bandwidth and with an additional PCIe 3.0 x4 slot you have enough storage expansion to cover all of your needs.
A Fully Comprehensive Thermal Solution
4x PWM/DC Fan Headers
6x Internal Temperature Sensors

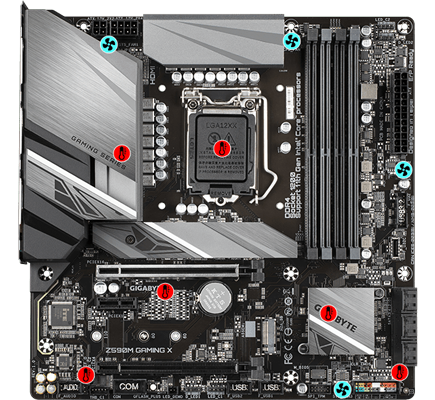

In order to get the highest possible performance from the latest high-core Intel processors, a comprehensive cooling solution is needed. The Z590M GAMING X uses high performance Fully Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pads, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers. This motherboard also includes Smart Fan 6 technology which includes several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Illuminate your PC with RGB Fusion 2.0
RGB FUSION 2.0With this GIGABYTE motherboard, RGB Fusion 2.0 is even better. users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals, customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you the most immersive gaming experience.
GIGABYTE RGB Fusion APPDon't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app you can watch as you control the lighting within your gaming PC. This gives you ease of access as you adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of your PC via your smartphone.
Durability for Years to Come
Industry Leading Ultra Durable™ PCIe ArmourThe innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Solid Pin Power ConnectorsZ590 AORUS motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
• Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.
Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
STEP 1Plug the 24pin & 8pin power supply cable into the motherboard.
STEP 2Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.
STEP 3Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.
Take Control of your Motherboard
GIGABYTE BIOS & APP CENTERGood software goes hand in hand with perfect hardware. The Z590M GAMING X has bundled several useful and intuitive softwares to help users to control every feature of the motherboard.
New User InterfaceAll new EASY MODE shows important hardware information all on one page.
FavoritesAdd constantly used items into the favorite menu for quick access.
Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.
ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.
APP CENTERGIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune™GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
|Edition||Z590M GAMING X|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||ECC/Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||7.1 Channel HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16)|
|NVIDIA SLI Support||N/A|
|AMD CrossFire Support||2-Way CrossFire|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||
|RAID Support via||Support Software RAID 0, 1, 5, 10|
|Storage Mode Support||
|Network Interface Type||Wired 2.5 Gigabit LAN|
|Network Chip/Modules||1 x Realtek (2.5GbE LAN)|
|Rear I/O Connectors||
|Board Dimensions||244 x 244 mm|
|Model Number||Z590M GAMING X|
