Scan code: LN114349 Manufacturer code: Z590 Vision G

Gigabyte Intel Z590 Vision G ATX PCIe 4 Motherboard

Gigabyte Z590 Vision G, Intel Z590, S 1200, DDR4, PCIe 4.0, SATA3, 4x M.2, 2.5GbE, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : Gigabyte Intel Z590 Vision G ATX PCIe 4 Motherboard Thumbnail 2 : Gigabyte Intel Z590 Vision G ATX PCIe 4 Motherboard Thumbnail 3 : Gigabyte Intel Z590 Vision G ATX PCIe 4 Motherboard Thumbnail 4 : Gigabyte Intel Z590 Vision G ATX PCIe 4 Motherboard
Scan code: LN114349 Manufacturer code: Z590 Vision G
£229.99
Order now and receive it by Tuesday, 15th June
From £11.04 / month (APR 14.9%)
Monthly Payment: £20.65
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £229.99
Total inc. interest: £247.77
Monthly Payment: £11.04
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £229.99
Total inc. interest: £264.95
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 15th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

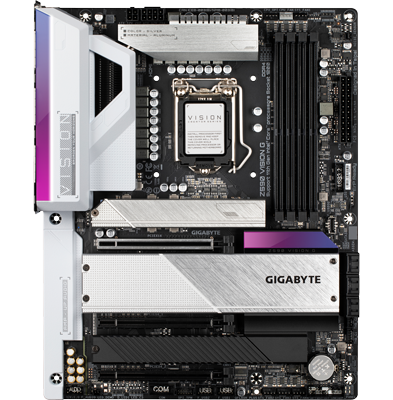

Gigabyte Z590 Vision G 11th Generation Intel ATX Motherboard

Vision G

A Motherboard for the Creator Built for the creator the Z590 Vision G ATX motherboard is here to help you turn your concepts into reality as it squeezes every ounce of performance from the new 11th Generation Intel CPUs, featuring reliable performance, impressive connectivity, expandable graphics and ultra-fast storage for creators to dive through heavy workloads including video editing and 3D rendering. The Z590 Vision G brings many of the latest technologies to the table including a PCIe 4.0 x16 slot, 4x NVMe PCIe x4 M.2 Connectors, a fully comprehensive VisionLINK I/O Panel and maximum memory support of 128GB enabling creators to empower their real-time workload making this motherboard the perfect fit for DIY creators to build their ultimate system.

Intel Z590Chipset

LGA 1200CPU Socket

10th & 11th GenIntel Processors

ATXForm Factor

Get the Performance you Deserve

PCIe 4.0 Design

Full PCIe 4.0 DesignFor Prosumers and content creators, high bandwidth storage and high performance are a necessity, this is especially true for 3D rendering and creating high resolution textures and photo realistic graphics. To support the most cutting edge hardware, the Z590 Vision G supports a variety of PCIe 4.0 devices including graphics and triple M.2 storage.

Ultra-Fast Storage

Quad M.2

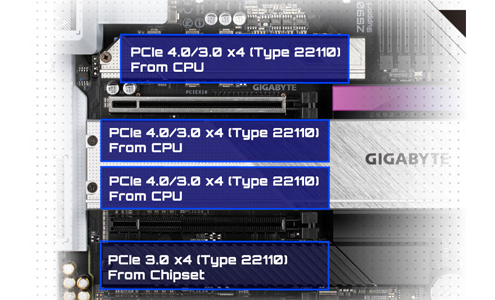

QUAD NVMe StorageThe Z590 Vision G M.2 storage solution offers considerably high storage performance and provides ideal storage with it's comprehensive RAID options. Boasting 3x full speed PCIe 4.0 and 1x PCIe 3.0 x4 M.2 connectors to provide access to the fastest storage available on the market, offering creators ample room to store their concepts, mock-ups and final products.

High-End Cooling Solution

M.2 Thermal GuardsGIGABYTE provides an Ultra-Efficient thermal solution for the latest PCIe 4.0 M.2 SSD drives. The unique M.2 Thermal Guard prevents all the M.2 SSD from thermal throttling and dissipates heat before it becomes an issue.

Smart Fan 6Numerous hybrid fan headers and temperature sensors are planted on the motherboard to monitor in real time and configure fan mode to fit different workloads via Smart Fan 6. Creators are allowed to set the trigger point to activate the fan and its corresponding speed. The fan completely stops when performing light tasks to avoid noise.

Keep Cool

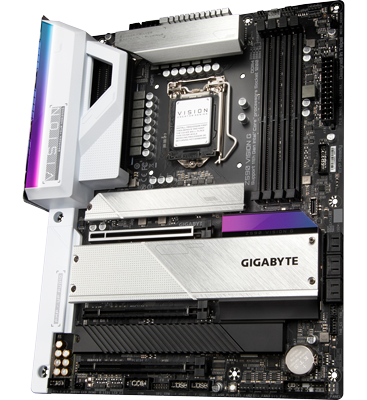

Stays Cool Under PressureAn effective cooling solution is imperative for a heavy design workload to reduce application slowdown, crashes and ultimately unexpected system shutdowns. To find the perfect balance between cooling and performance gigabyte have incorporated a high-end cooling solution complete with fins-array heatsink and direct touch heatpipes, this not only increases heat dissipation but the large heatsink cover also establishes a stylish aesthetic.

Intel 2.5GbE Connectivity

Intel LAN

High-Bandwidth and Low LatencyBoasting Intel 2.5G LAN the Gigabyte Vision G provides up to 2.5GbE network connectivity with atleast 2X faster transfer speeds than standard gigabit networking, giving you an immediate boost to overall network performance and reducing the time it takes for large file transfers, video editing and performance workflows, ultimately streamlining your creative process.

Simplify Your Creative Process

VisionLINK

Gigabyte VisionLINKGIGABYTE VisionLINK is an extension of your idea and creation. Transmitting data, video output, and power charging all through one USB Type-C® cable will simplify the user experience more than ever. With seamless multitasking between your PC and devices, it lets you work like a pro.

Specifications
Core Specifications
Edition Z590 VISION G
Form Factor ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek® ALC4080 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 1.4
  • USB Type-C (VirtualLink)
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-60/80/110 PCIe Gen 4x4
  • 1 x M.2, 22-60/80/110, PCIe Gen3x4/SATA3
  • 2 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 4 x M.2
  • 1 x Noise Detection Header
  • 1 x Q-Flash Plus Button
  • 2 x RGB Header
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Central Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x Side Speaker Out
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN114349
Model Number Z590 Vision G
GTIN 4719331814496
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
Gigabyte Uk
