Scan code: LN117753 Manufacturer code: Z590 VISION D

Gigabyte Intel Z590 Vision D ATX Motherboard

Gigabyte Z590 Vision D, Intel Z590, S 1200, DDR4, SATA3, PCIe 4.0, M.2, GbE, USB 3.2 Gen2, ATX

Thumbnail 1 : Gigabyte Intel Z590 Vision D ATX Motherboard Thumbnail 2 : Gigabyte Intel Z590 Vision D ATX Motherboard Thumbnail 3 : Gigabyte Intel Z590 Vision D ATX Motherboard Thumbnail 4 : Gigabyte Intel Z590 Vision D ATX Motherboard
Scan code: LN117753 Manufacturer code: Z590 VISION D
£298.99
Order now and get it tomorrow, Wed 22nd Sep
From £14.36 / month (APR 14.9%)
Monthly Payment: £26.85
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £298.99
Total inc. interest: £322.07
Monthly Payment: £14.36
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £298.99
Total inc. interest: £344.43
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £7.47 / month (APR 15.9%)
Delivery Options
  • By DPD On 22nd Sep to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Gigabyte Z590 Vision G 11th Generation Intel ATX Motherboard

Vision D

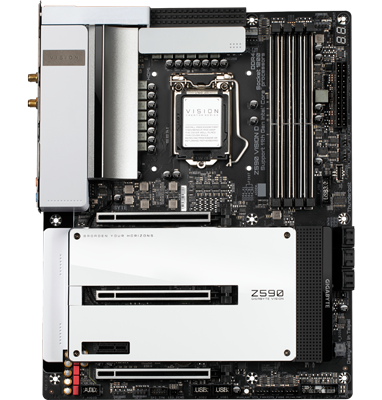

A Motherboard for the Creator Built for the creator the Z590 Vision D ATX motherboard is here to help you turn your concepts into reality as it squeezes every ounce of performance from the new 11th Generation Intel CPUs, featuring reliable performance, impressive connectivity, expandable graphics and ultra-fast storage for creators to dive through heavy workloads including video editing and 3D rendering. The Z590 Vision D brings many of the latest technologies to the table including dual PCIe 4.0 x16 slots, Triple NVMe PCIe x4 M.2 Connectors, Thunderbolt 4, Wifi-6 and type-C connectivity as well as a fully comprehensive VisionLINK I/O Panel and maximum memory support of 128GB enabling creators to empower their real-time workload making this motherboard the perfect fit for DIY creators to build their ultimate system.

Intel Z590Chipset

LGA 1200CPU Socket

10th & 11th GenIntel Processors

ATXForm Factor

Get the Performance you Deserve

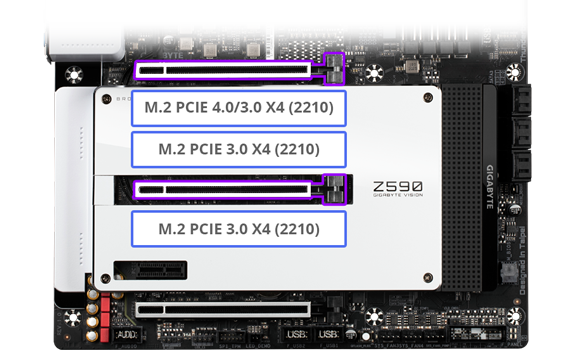

PCIe 4.0 Design

Full PCIe 4.0 DesignFor Prosumers and content creators, high bandwidth storage and high performance are a necessity, this is especially true for 3D rendering and creating high resolution textures and photo realistic graphics. To support the most cutting edge hardware, two of the PCIe slots and one of the M.2 slots support PCie 4.0 functionality to bring you incredible performance and data transfer speeds. This is the future, are you ready?

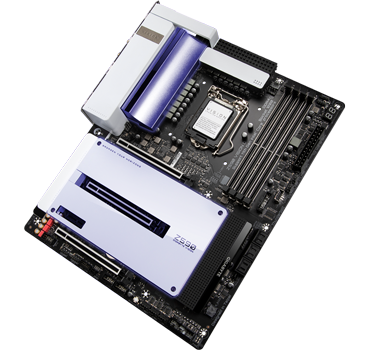

High-End Cooling Solution

Keep Cool

Stays Cool Under PressureAn effective cooling solution is imperative for a heavy design workload to reduce application slowdown, crashes and ultimately unexpected system shutdowns. With the Vision D Gigabyte have opted for a custom unconventional curved heatsink, to increase overall thermal dissipation but to also aesthetically please the creator in you, a heatpipe connects the huge heat sink and micro cube heatsink to completely cover the VRM area thus ensuring that heat can be dissipated effectively. GIGABYTE provides an Ultra-Efficient thermal solution for the latest PCIe 4.0 M.2 SSD drives. The unique M.2 Thermal Guard prevents all the M.2 SSD from thermal throttling and dissipates heat before it becomes an issue.

Intel 2.5GbE Connectivity

Intel LAN

High-Bandwidth and Low LatencyBoasting Intel 2.5G LAN the Gigabyte Vision D provides up to 2.5GbE network connectivity with atleast 2X fa4ster transfer speeds than standard gigabit networking, giving you an immediate boost to overall network performance and reducing the time it takes for large file transfers, video editing and performance workflows, ultimately streamlining your creative process.

Simplify Your Creative Process

VisionLINK

Gigabyte VisionLINKGIGABYTE VisionLINK is an extension of your idea and creation. Transmitting data, video output, and power charging all through one USB Type-C® cable will simplify the user experience more than ever. With seamless multitasking between your PC and devices, it lets you work like a pro.

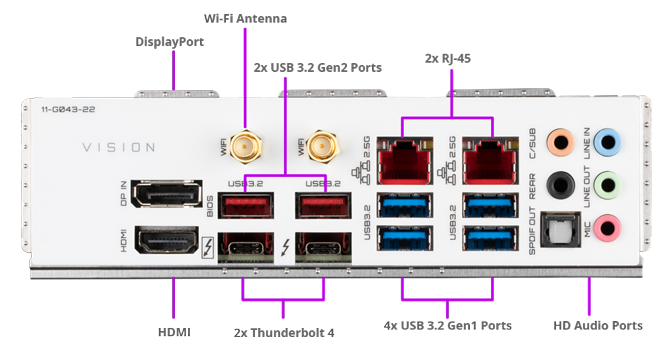

Connections at your Fingertips

IO
Specifications
Core Specifications
Edition Z590 VISION D
Form Factor ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3666(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4700(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 4933(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5133(OC)
  • DDR4 - 5333(0C)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface None
NVIDIA SLI Support N/A
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • HDMI 1.4
  • Thunderbolt 4
Internal Connectivity
Expansion Slots
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
SATA Support SATA3
RAID Support via Support Software RAID 0, 1, 5, 10
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 3 x M.2 Connector
  • 1 x Noise Detection Header
  • 1 x Q-Flash Plus Button
  • 2 x RGB (RGBW) LED Strip Header
  • 6 x SATA III - 6Gb/s
  • 4 x System Fan header
  • 2 x System Fan/Water Pump Header
  • 2 x Temperature Sensor Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.1
  • 2 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort In
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x SMA antenna connectors (2T2R)
  • 2 x Thunderbolt 4
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN117753
Model Number Z590 VISION D
GTIN 210900053016
